Repair Procedures: Inspection: Removal

(Type 1 for TF)

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the fuel pump service cover (A) in the trunk.
   Fig 1: Fuel Pump Service Cover

   Courtesy of KIA MOTORS AMERICA, INC.

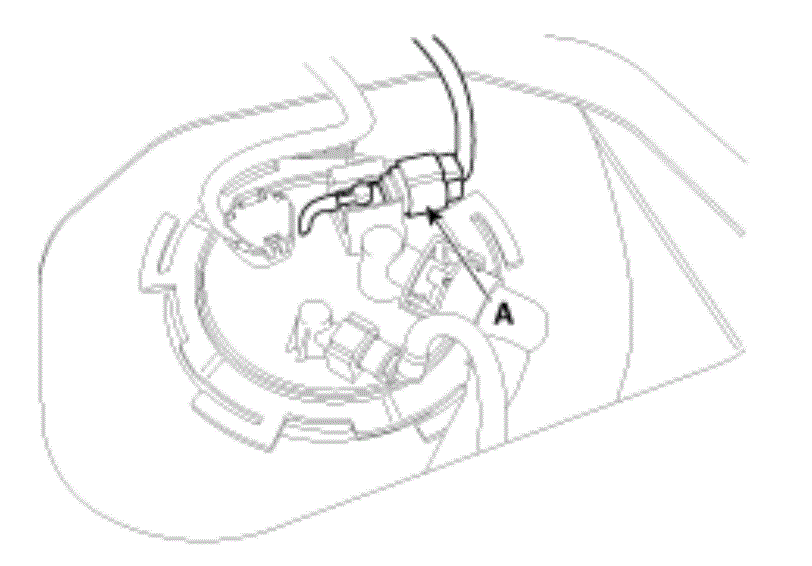

3. Disconnect the fuel tank pressure sensor connector (A), and then remove the fuel tank pressure sensor.

Fig 2: Fuel Tank Pressure Sensor Component Location And Connector (Type 1 for TF)

Courtesy of KIA MOTORS AMERICA, INC.

(Type 2 for QF)

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Remove the fuel pump service cover (A) in the trunk.
   Fig 3: Fuel Pump Service Cover

   Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the fuel tank pressure sensor connector (A), and then remove the fuel tank pressure sensor.

Fig 4: Fuel Tank Pressure Sensor Component Location And Connector (Type 2 for QF)

Courtesy of KIA MOTORS AMERICA, INC.
