Repair Procedures: Installation
CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Use care to keep foreign material out of the valve.
CAUTION:

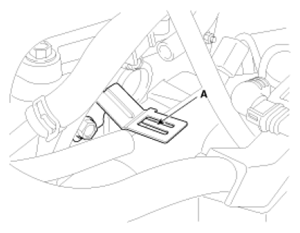

- Install the purge control solenoid valve after lifting the support pin (A) of the bracket.
- Installation is reverse of removal.
Purge control solenoid valve bracket installation bolt: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
