Inspect Spark Plug

Disconnect the ignition coil connectors (A).

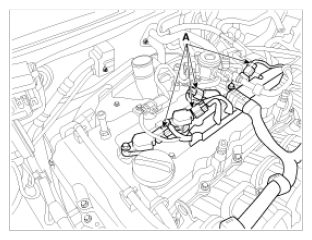

Fig 1: Ignition Coil Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coils (A).

Fig 2: Ignition Coils
Courtesy of KIA MOTORS AMERICA, INC.
Using a spark plug socket, remove the spark plug.
CAUTION: Be careful that no contaminates enter through the spark plug holes.

Inspect the electrodes (A) and ceramic insulator (B).

Fig 3: Electrodes & Ceramic Insulator

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Of Electrodes

ELECTRODES INSPECTING CHART

Condition	Dark deposits	White deposits
Description	Fuel mixture too rich Low air intake	Fuel mixture too lean Advanced ignition timing Insufficient plug tightening torque
