Removal And Installation

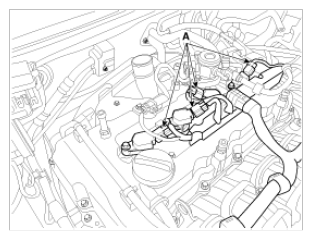

Disconnect the ignition coil connectors (A).

Fig 1: Ignition Coil Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coils (A).
Tightening torque:

3.9 ~ 5.9 N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3 lb-ft)

Fig 2: Ignition Coils
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
