Signal Waveform

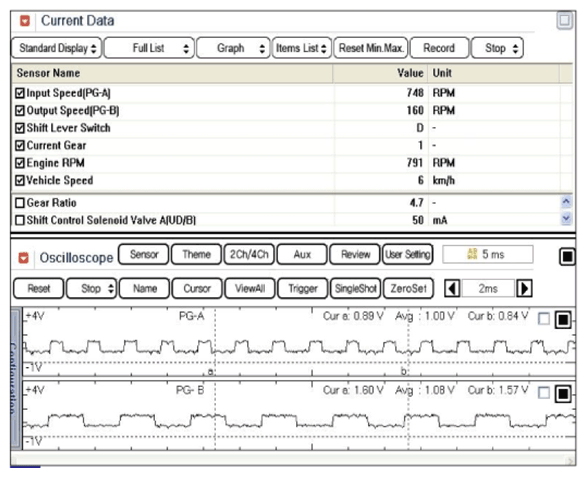

Fig 1: Screen Display - Input/Output Speed Sensor At Low Speed
G07379827Courtesy of KIA MOTORS AMERICA, INC.

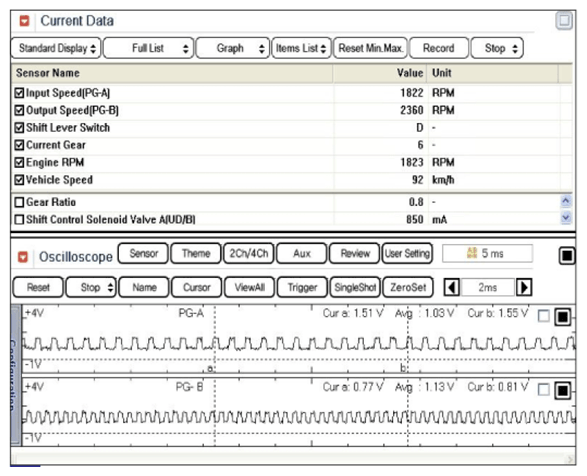

Fig 2: Screen Display - Input/Output Speed Sensor At High Speed
G07379828Courtesy of KIA MOTORS AMERICA, INC.
