Repair procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Disconnect the CVVT oil control valve connector (A).
3. Remove the installation bolt (B), and then remove the valve from the engine.

[Bank 1/Intake]

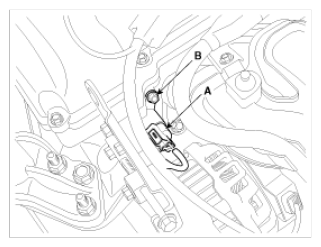

Fig 1: CVVT Oil Control Valve Component Location, Connector And Bolt (Bank 1/Intake)

Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Exhaust]

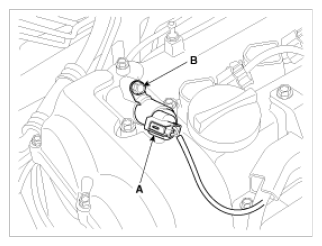

Fig 2: CVVT Oil Control Valve Component Location, Connector And Bolt (Bank 1/Exhaust)

Courtesy of KIA MOTORS AMERICA, INC.
