Repair procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the resonator and the air intake hose (Refer to "MUFFLER " in EM group).

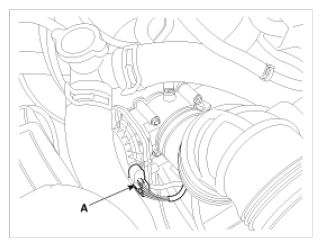

Disconnect the ETC module connector (A).

Fig 1: ETC Module Component Location And Connector
Courtesy of KIA MOTORS AMERICA, INC.

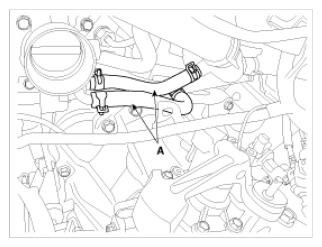

Disconnect the coolant hoses (A).

Fig 2: Identifying Coolant Hoses
Courtesy of KIA MOTORS AMERICA, INC.

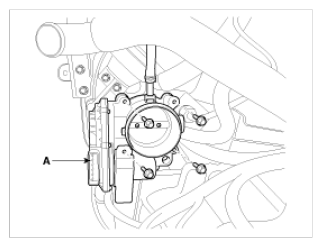

Remove the installation bolts, and then remove the ETC module (A) from the engine.

Fig 3: Identifying ETC Module And Mounting Bolts

Courtesy of KIA MOTORS AMERICA, INC.
