Description and Operation: Specification

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V)
20.0 (0.20, 2.9) 0.79
46.7 (0.47, 6.77) 1.84
101.3 (1.03, 14.7) 4.0

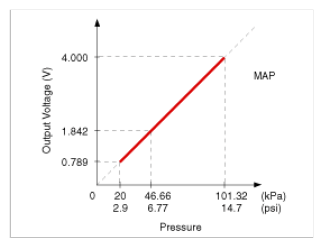

Fig 1: MAP Sensor Voltage Graph
G08321383Courtesy of KIA MOTORS AMERICA, INC.
