Control Cable Assembly Replacement

Remove the center console.
(Refer to "INTERIOR (CONSOLE) " in BD group)

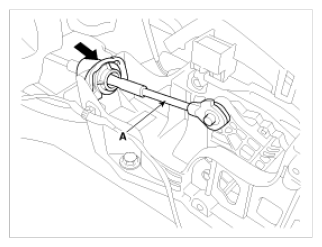

Remove the control cable (A).

Fig 1: Identifying Control Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad.
(Refer to "INTERIOR (CRASH PAD) " in BD group.)
Remove the heater unit.
(Refer to "HEATER (HEATER UNIT) " in HA group.)

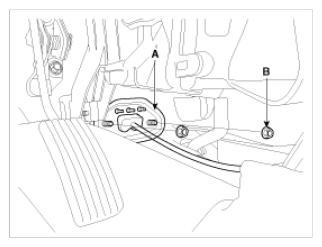

Remove the retainer (A) and nuts (B).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

Fig 2: Identifying Retainer And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

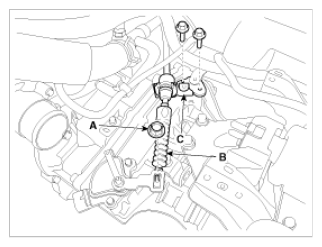

Remove the nut (A) from the manual control lever.
Remove the control cable (B) from the bracket (C) at transaxle assembly side.
(Refer to "AUTOMATIC TRANSAXLE " in this group)

Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

Fig 3: Identifying Control Cable, Bracket And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control cable at cabin room.
Installation is the reverse of removal.
NOTE:
- Set room side AT lever(shift lever) and automatic transaxle side manual control lever to "N" position.
- Control cable must be free unreasonable bending.
