Repair procedures: Replacement

NOTE: When replacing the TCM, the vehicle equipped with immobilizer must be performed the procedure as below. [In the case of installing used TCM]

Perform "TCM neutralization mode" procedure with GDS. (Refer to "IMMOBILIZER " in BE group)
Insert the key and turn it to the IGN ON and OFF position.

Then the TCM key register process is completed automatically.
[In the case of installing new TCM]- Insert the key and turn it to the IGN ON and OFF position.
Then the TCM key register process is completed automatically.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the TCM connector (A).

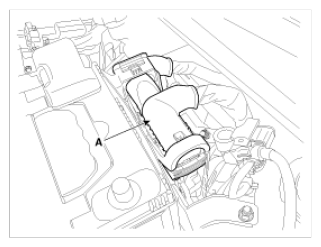

Fig 1: Identifying TCM Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bracket installation bolts (A) and the nut (B).
TCM installation bolt/nut:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

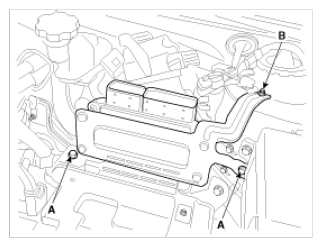

Fig 2: Identifying Bracket Installation Bolts And Nut
Courtesy of KIA MOTORS AMERICA, INC.

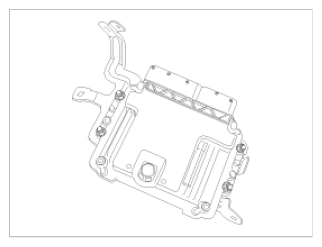

Fig 3: Identifying TCM Bracket
Courtesy of KIA MOTORS AMERICA, INC.
