Brakes and Traction Control: Specifications

Specifications

NOTE:
O.D.: Outer Diameter
I.D: Inner Diameter

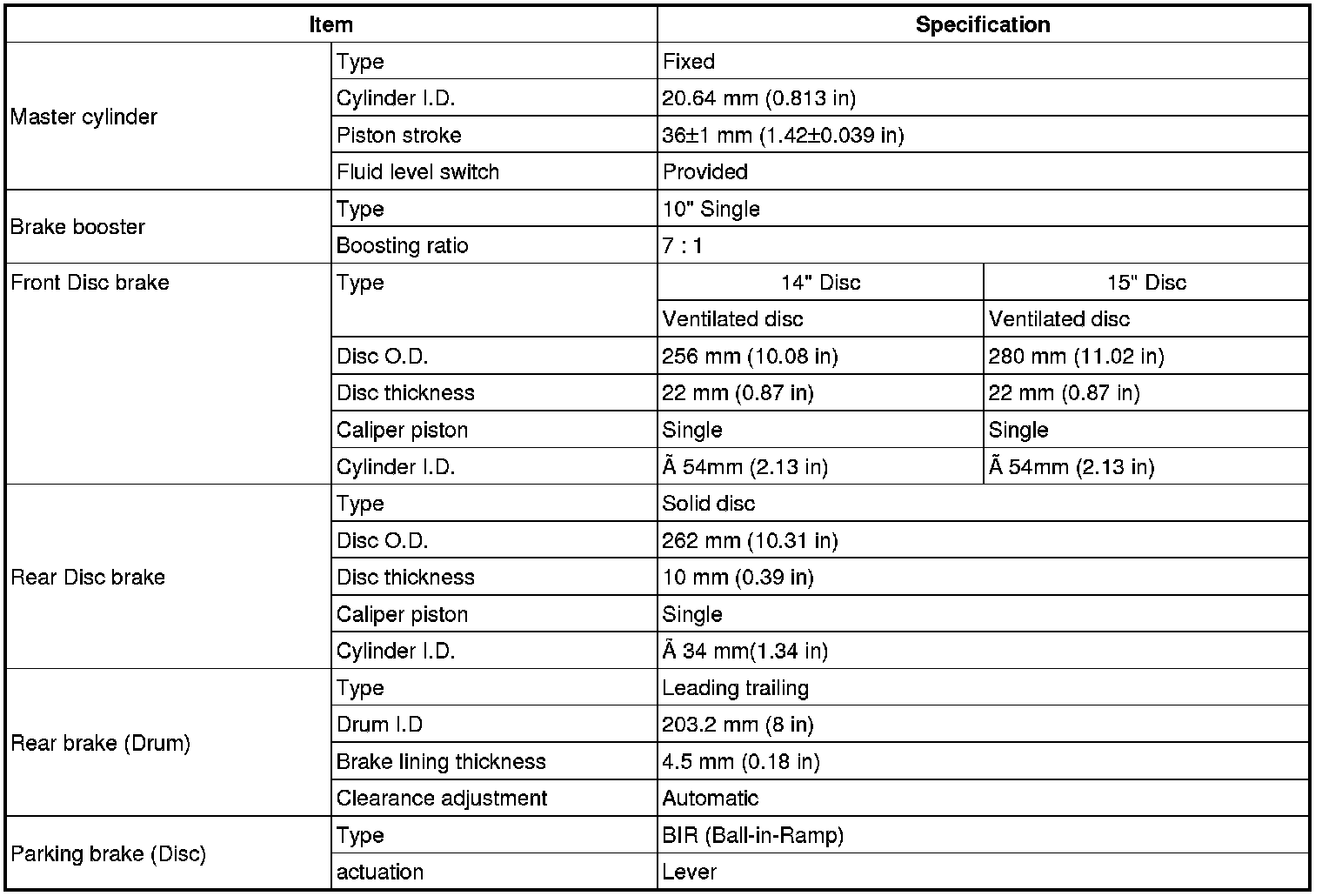

Specification (ESC)

Service Standard

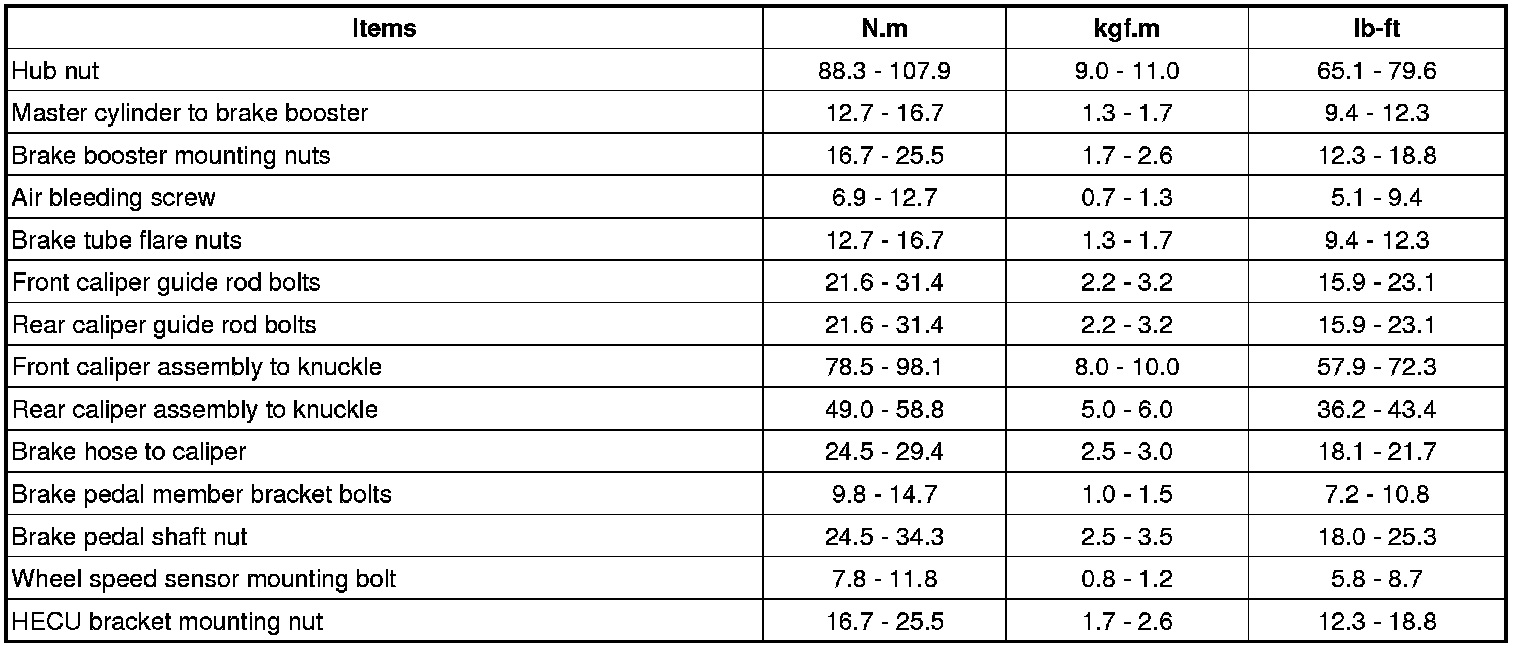

Tightening Torques

Lubricants
