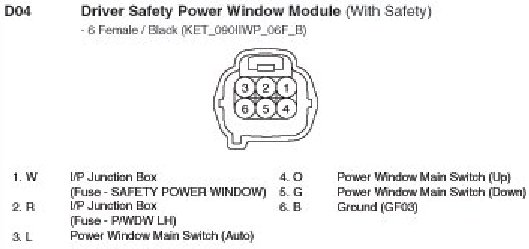

D04 Driver Safety Power Window Module (With Safety)

D04 Driver Safety Power Window Module (With Safety):
