M02-R Multifunction Switch (Remote Control)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

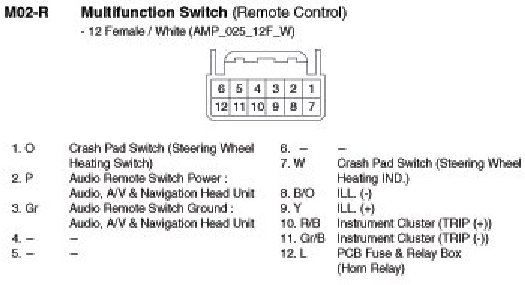

M02-R Multifunction Switch (Remote Control)
M02-R Multifunction Switch (Remote Control):
