Engine Control Module
ECM Terminal And Input/Output signal [M/T]

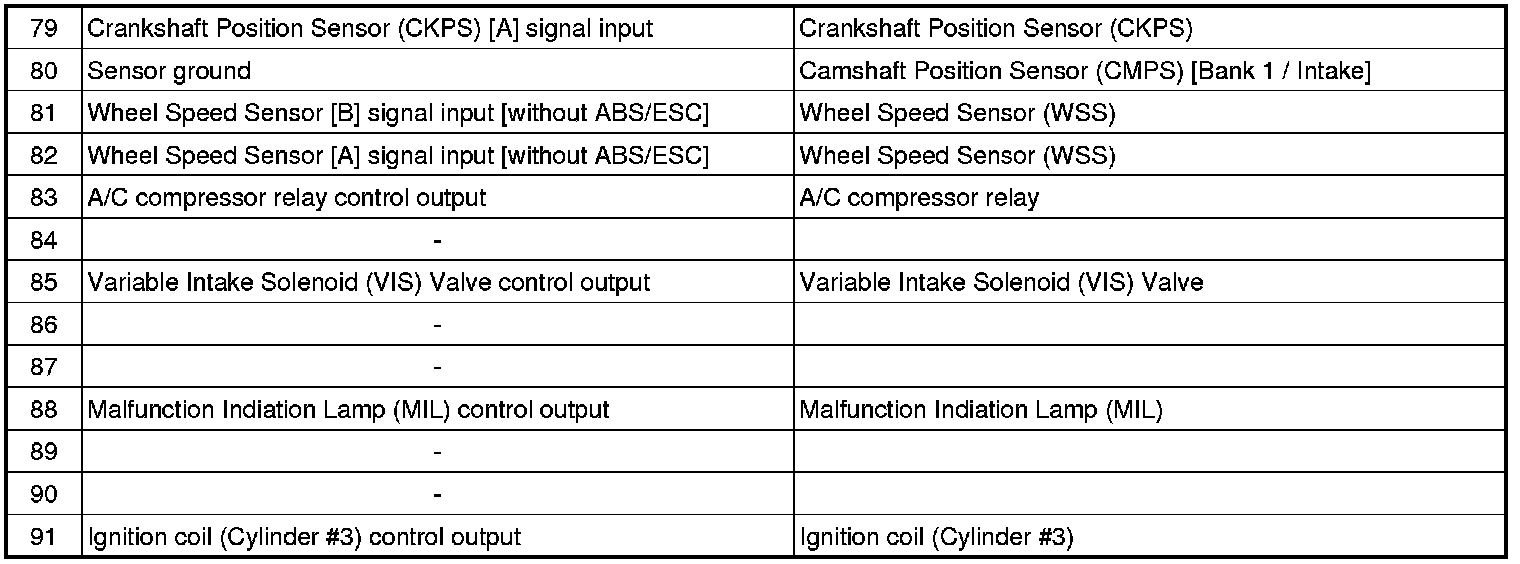

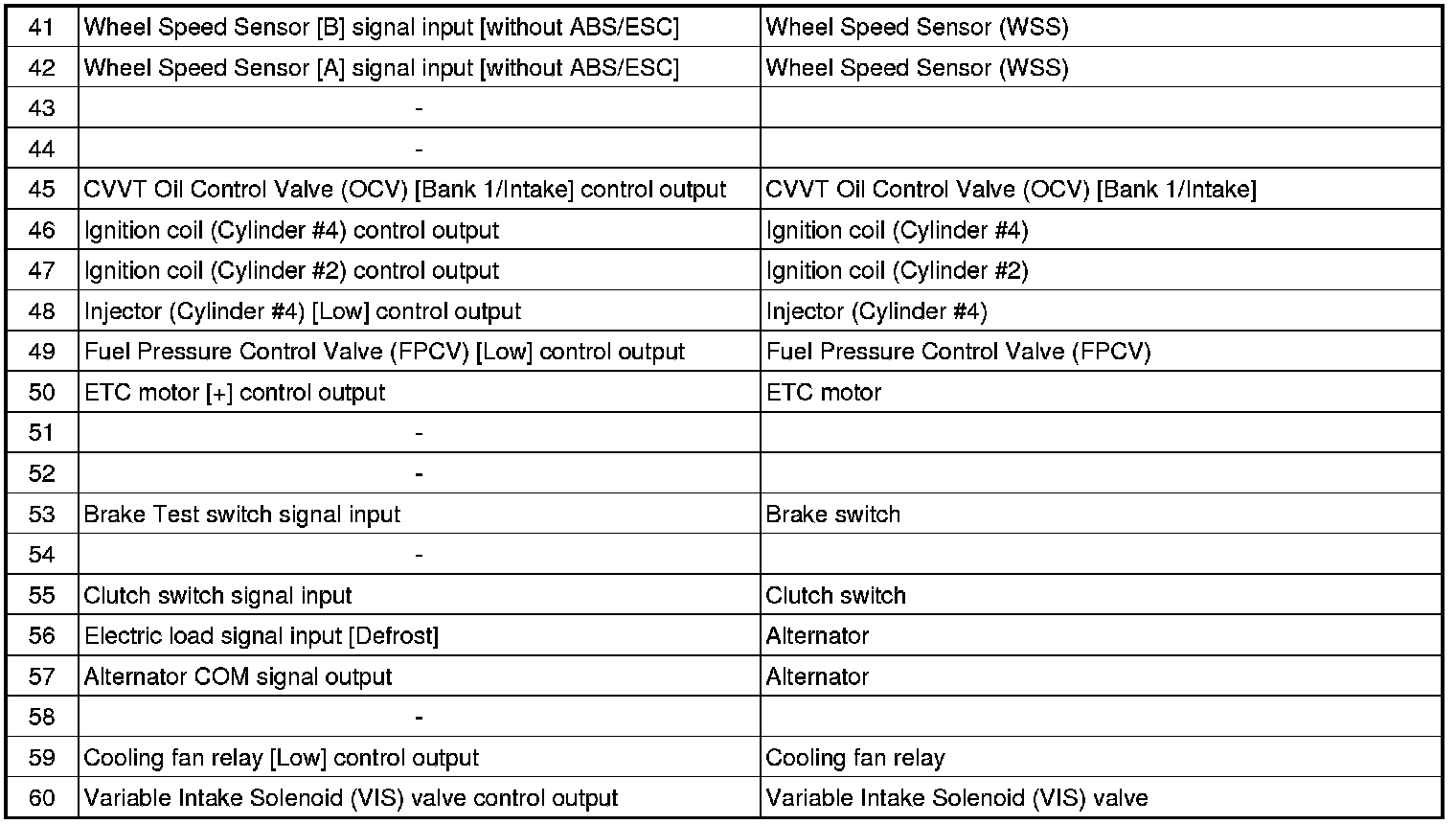

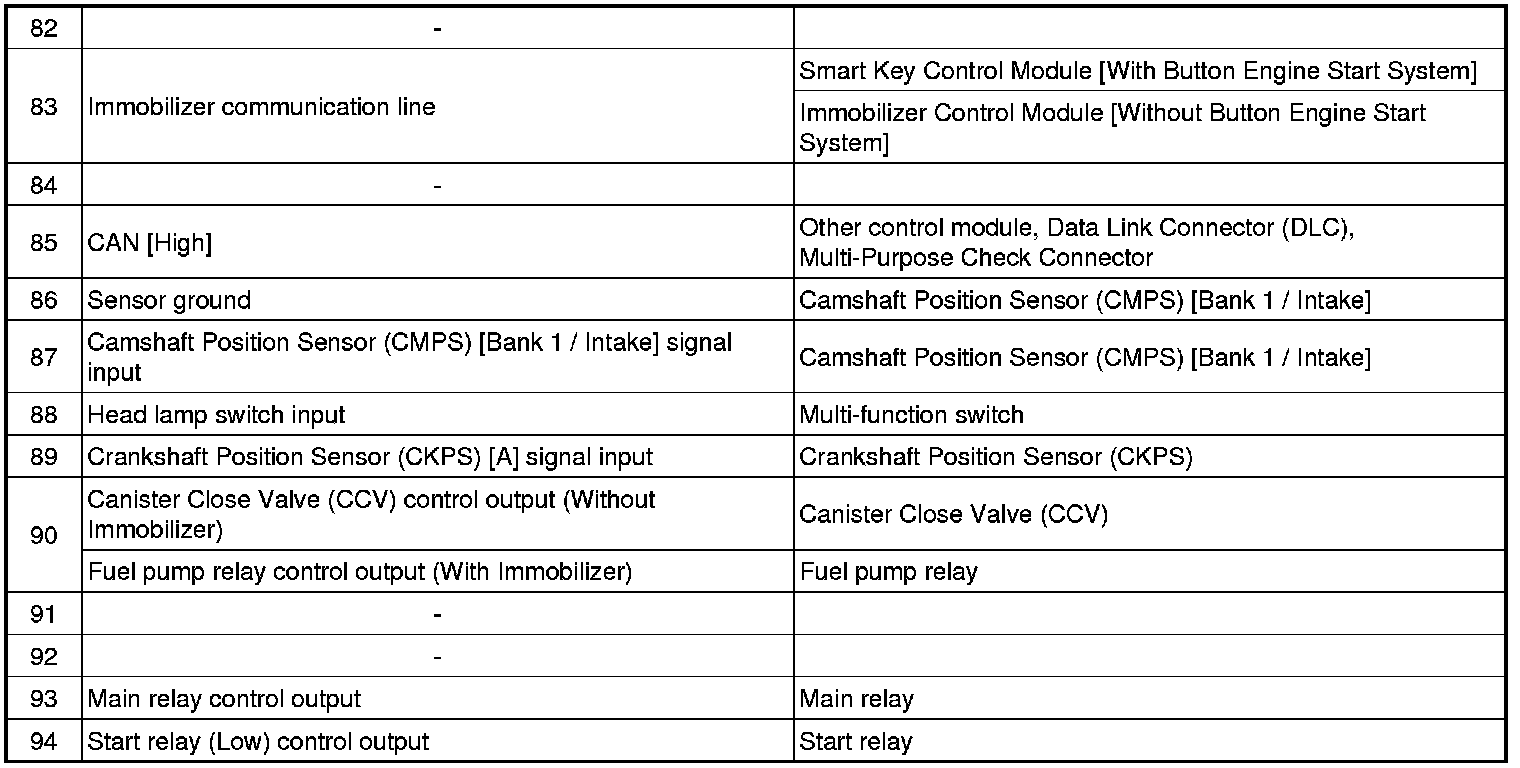

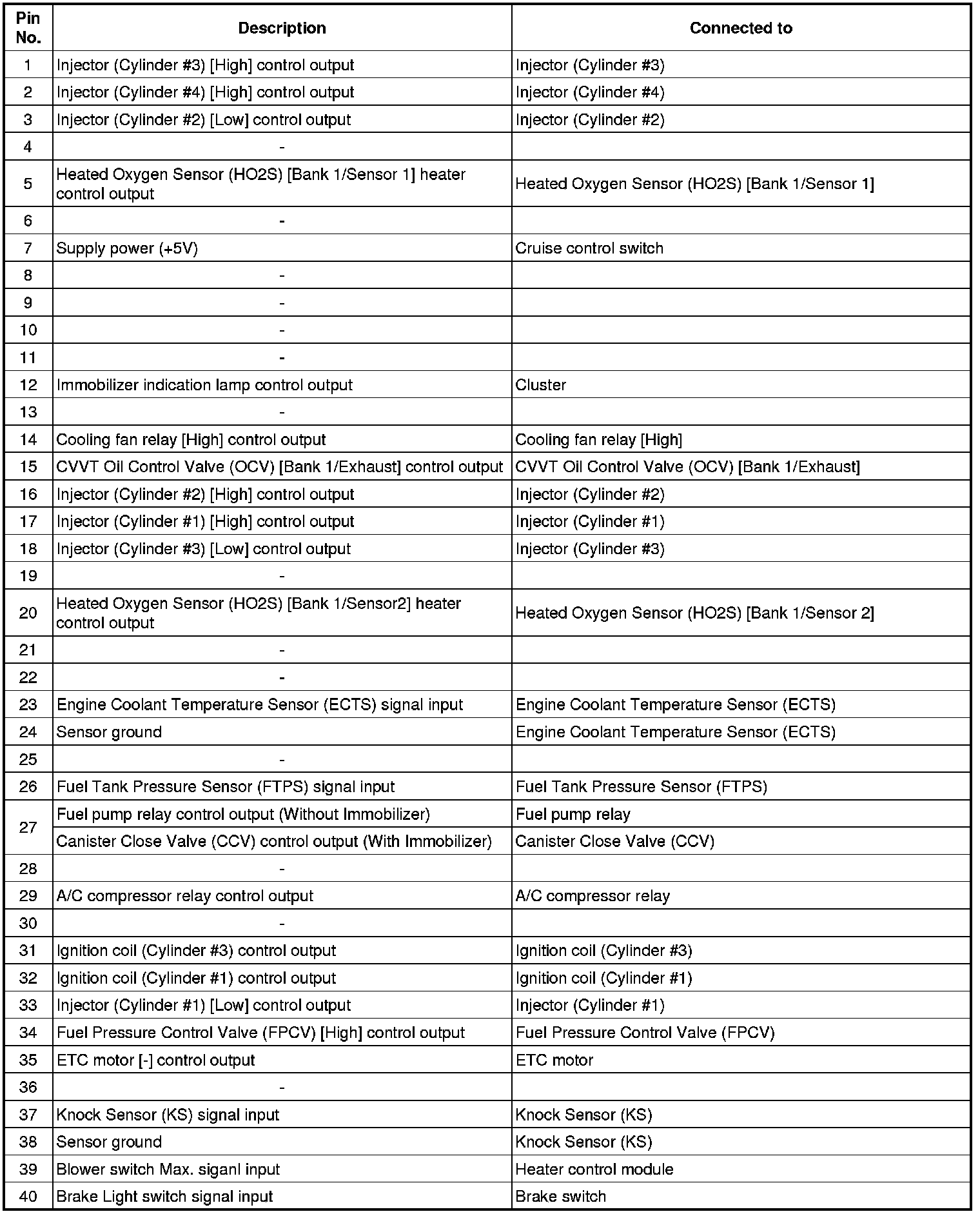

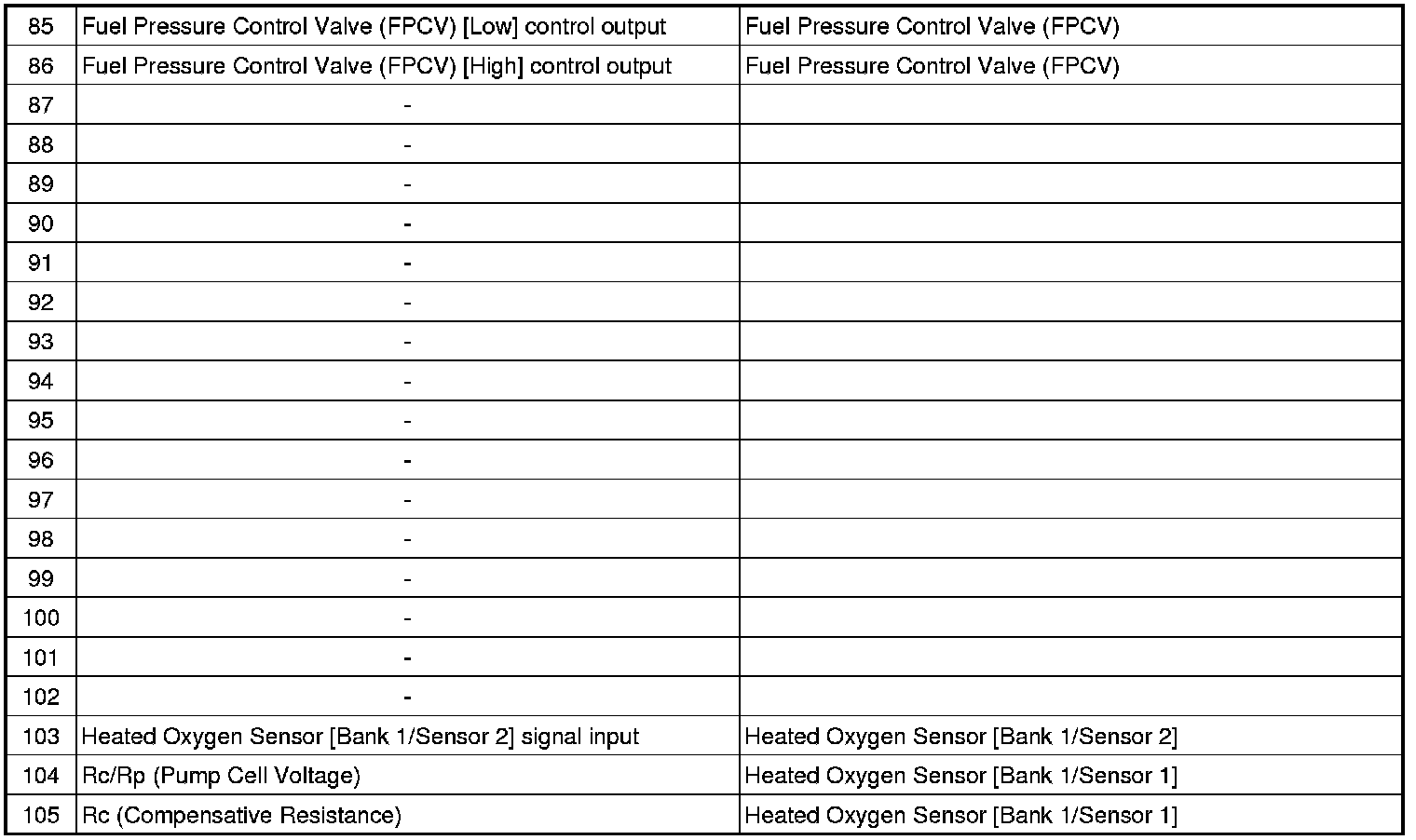

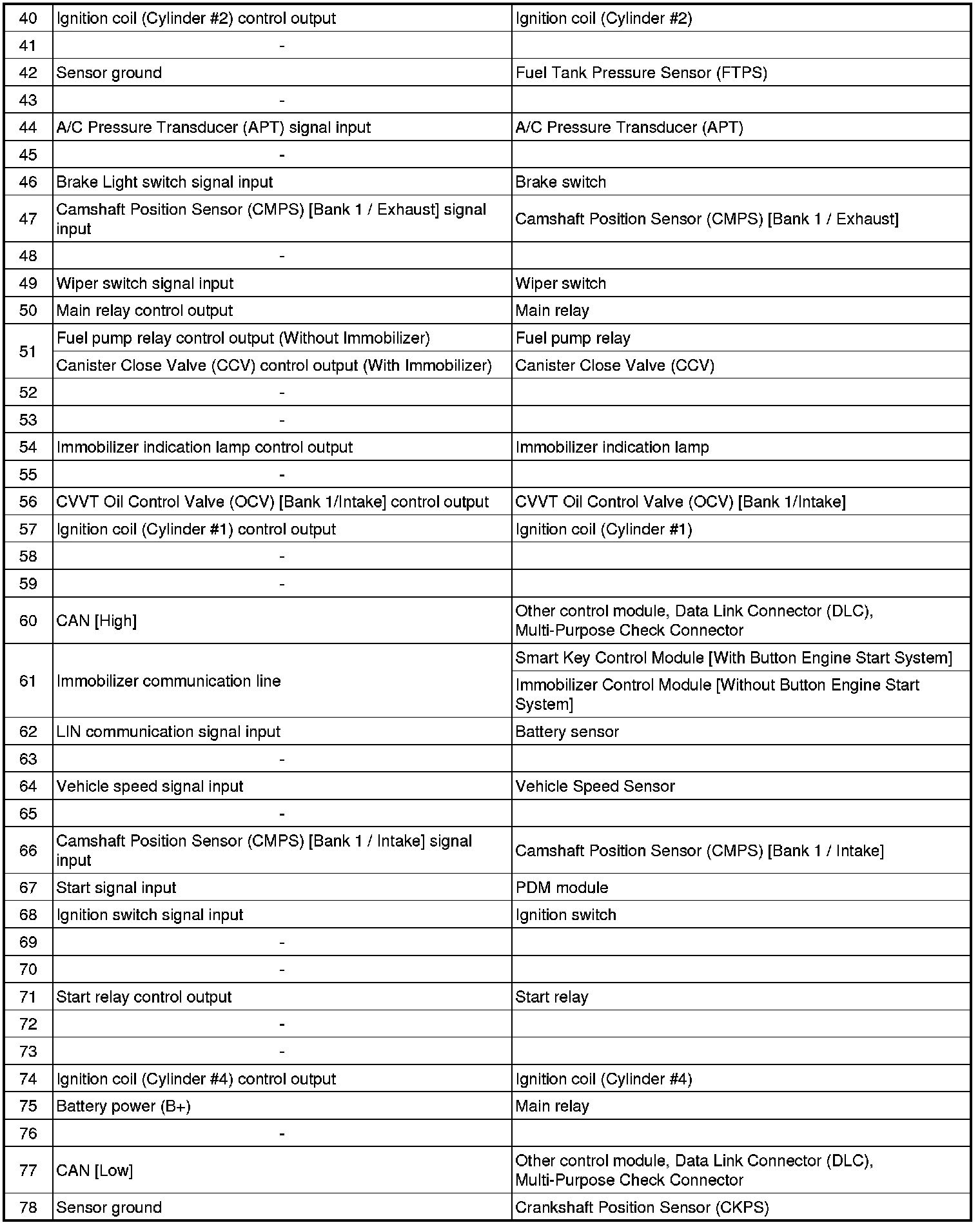

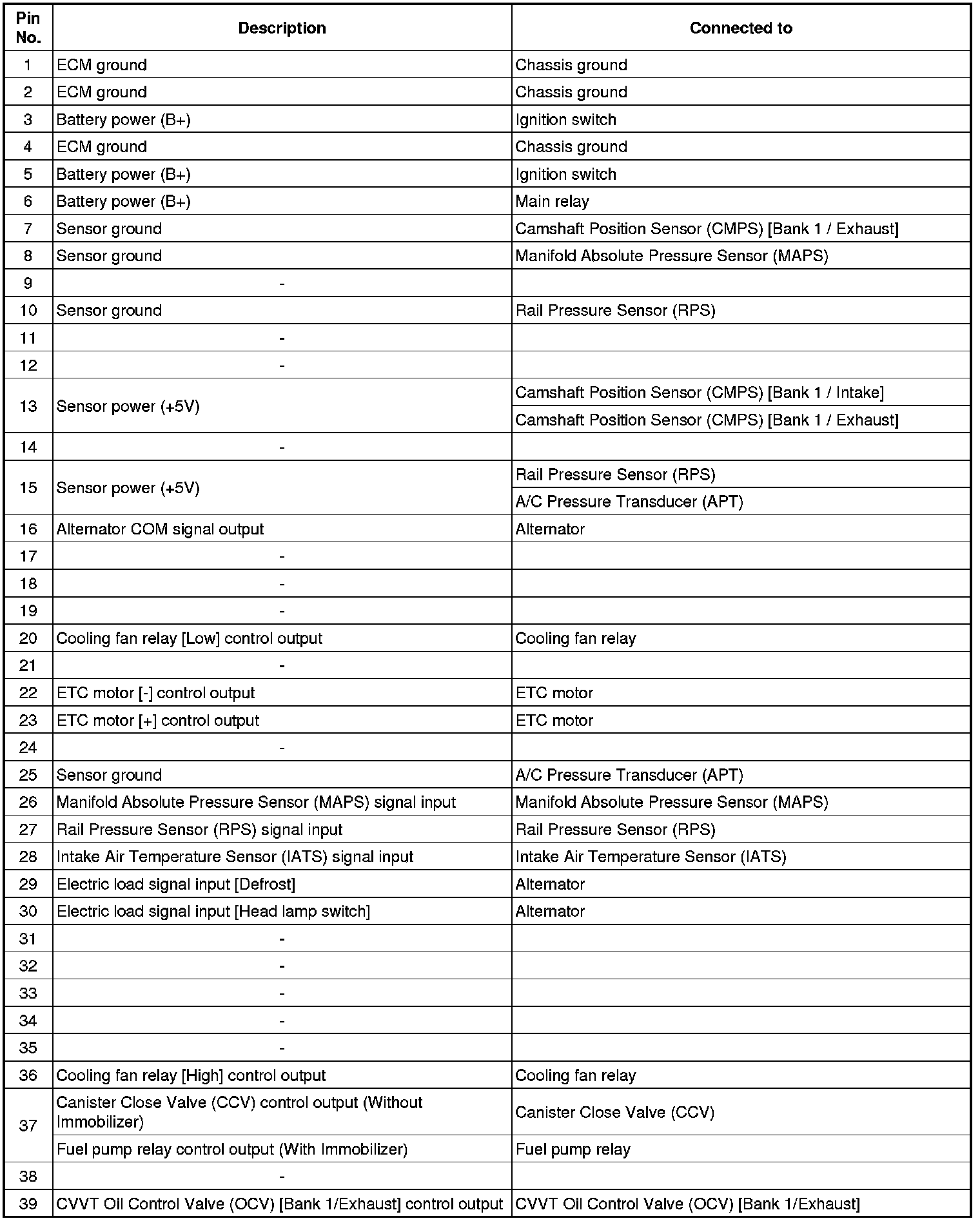

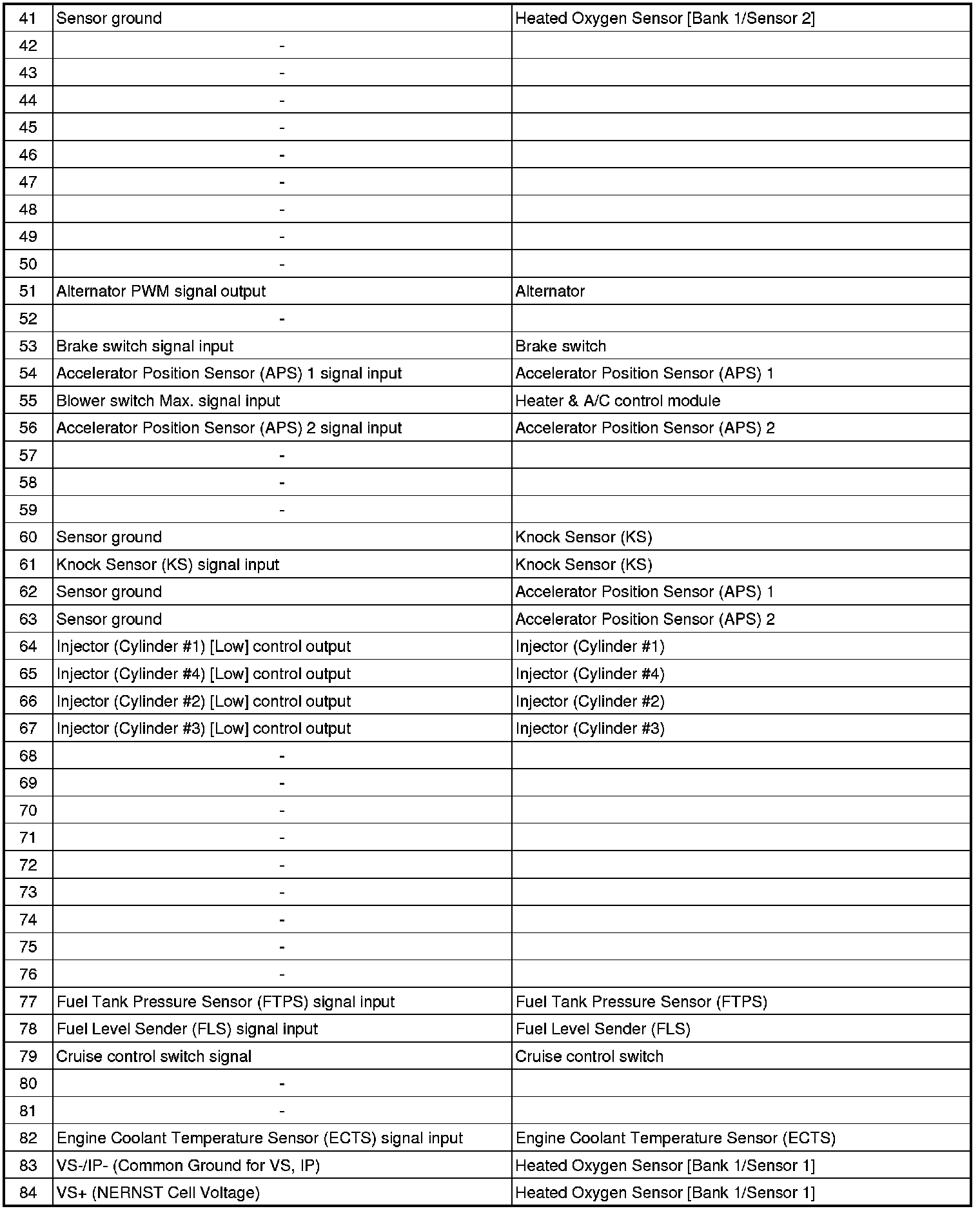

ECM Terminal Function (M/T)

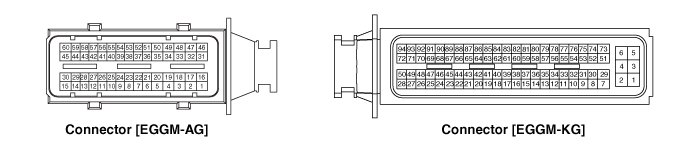

Connector [EGGM-AG]

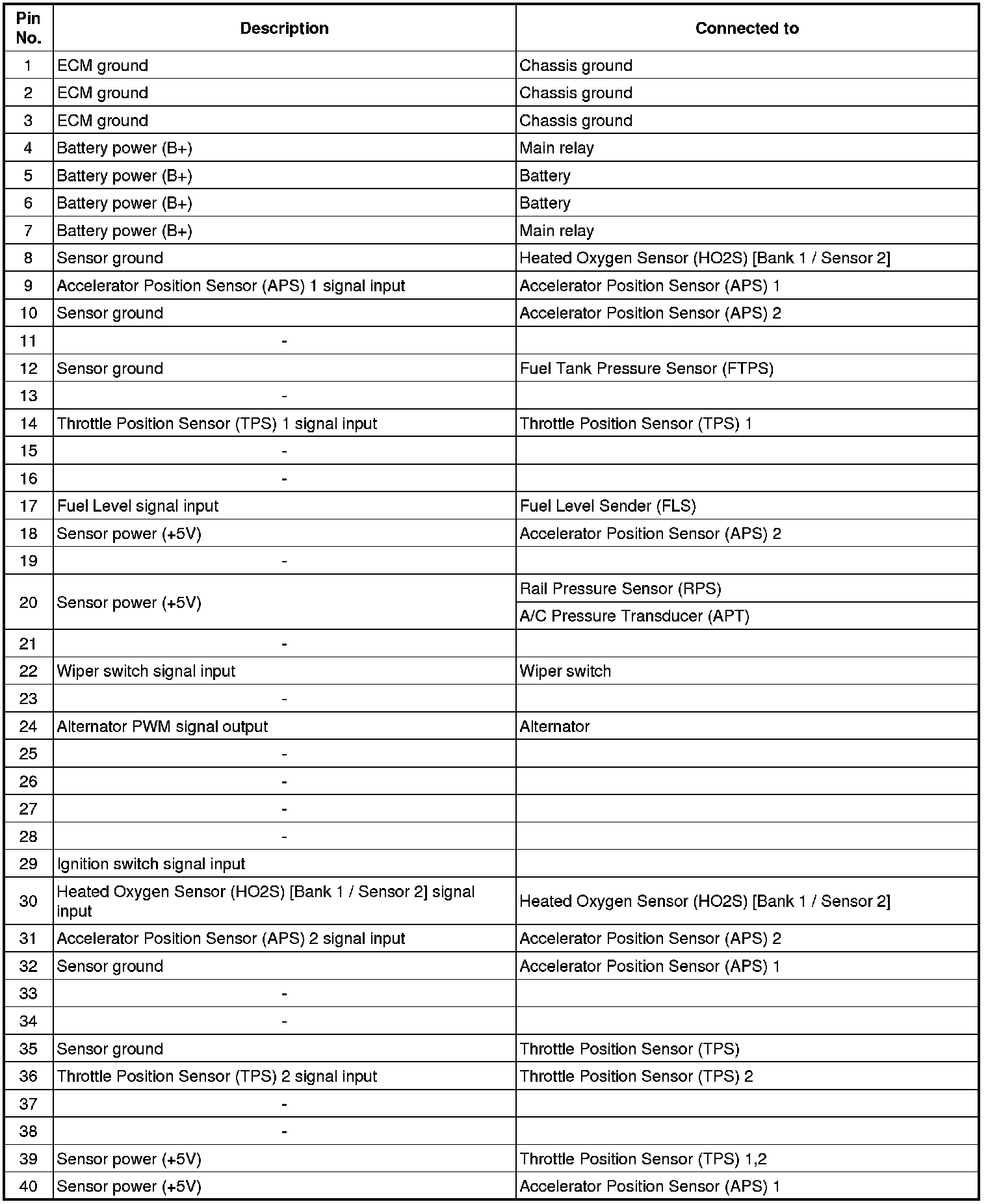

Connector [EGGM-KG]

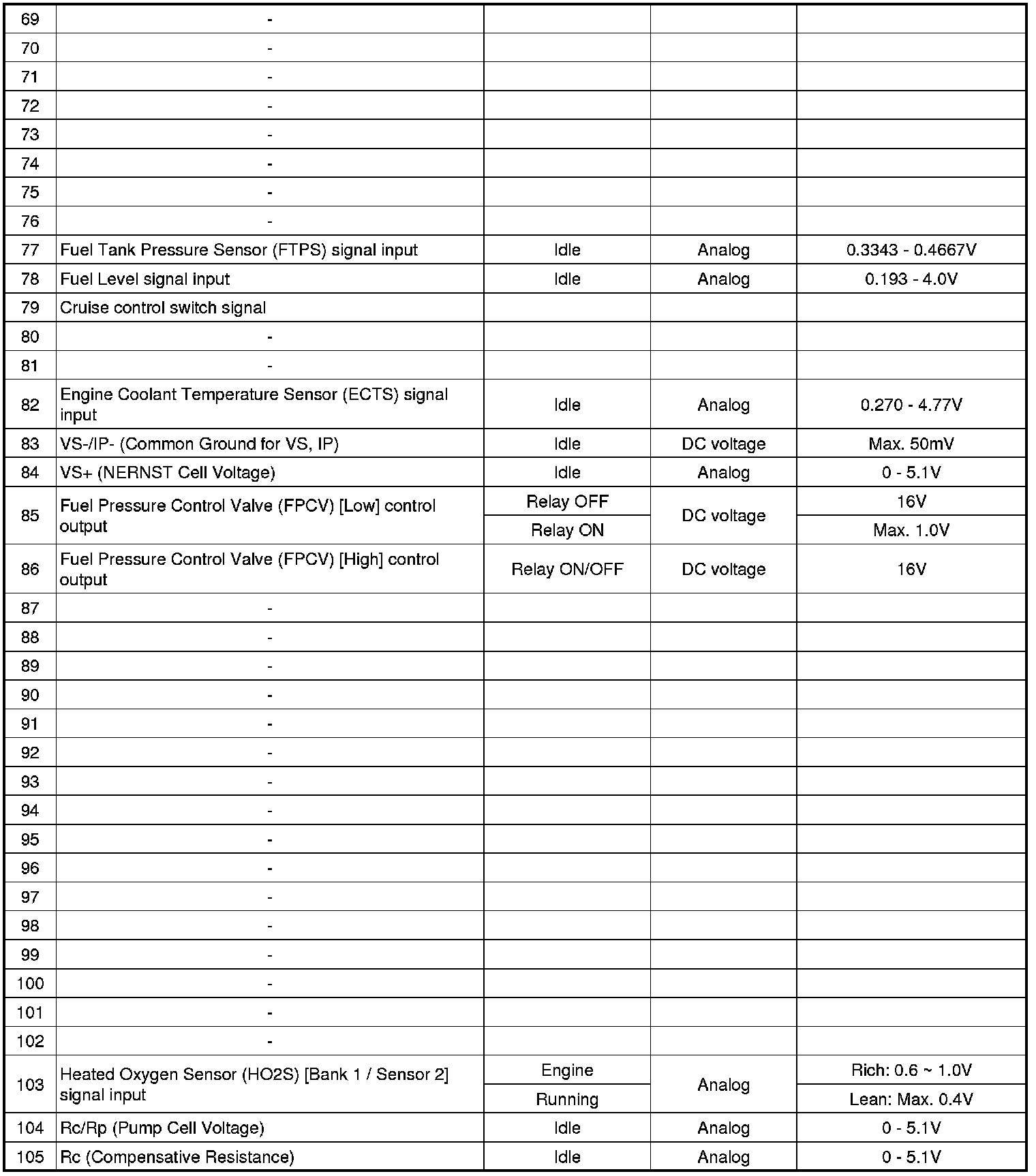

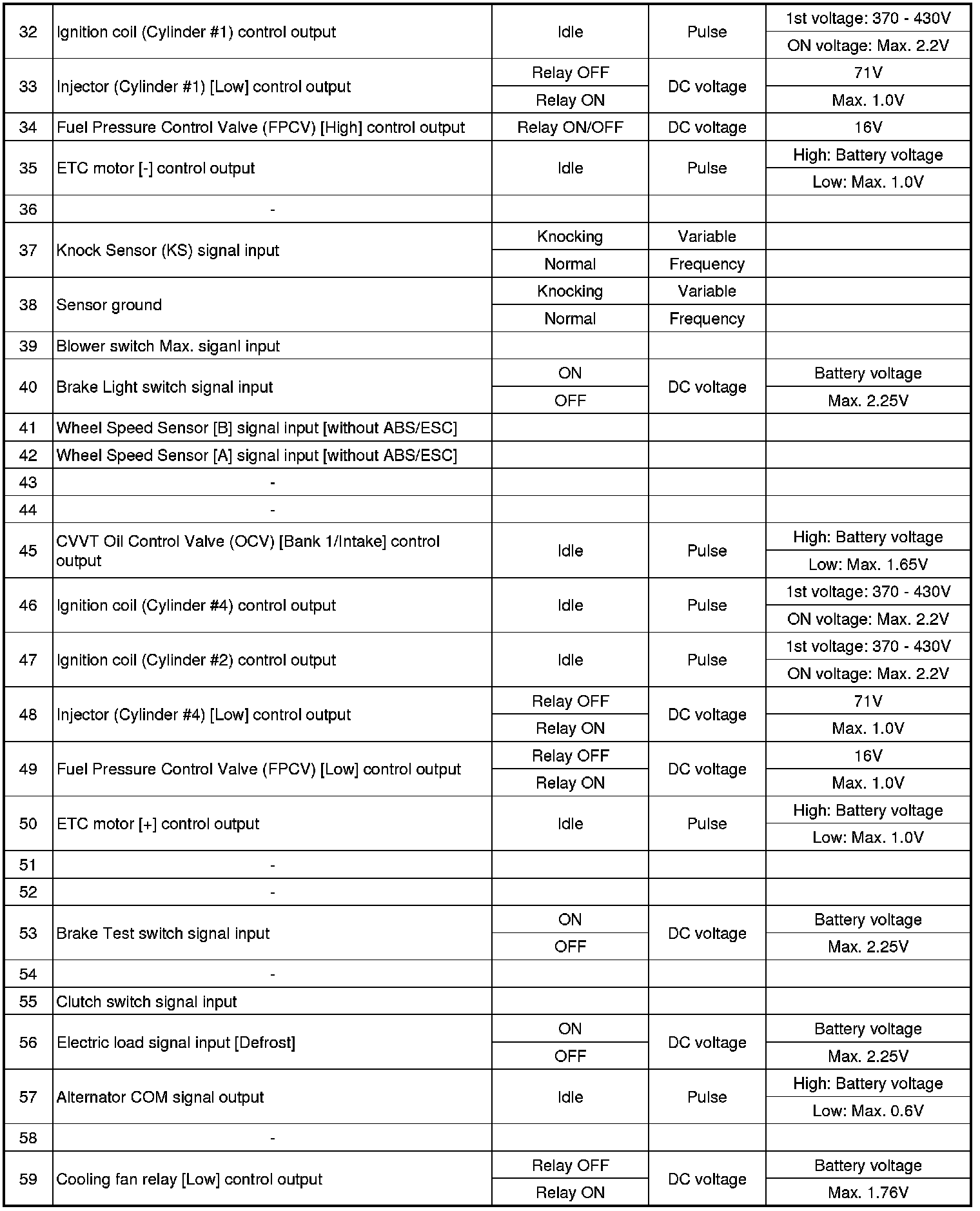

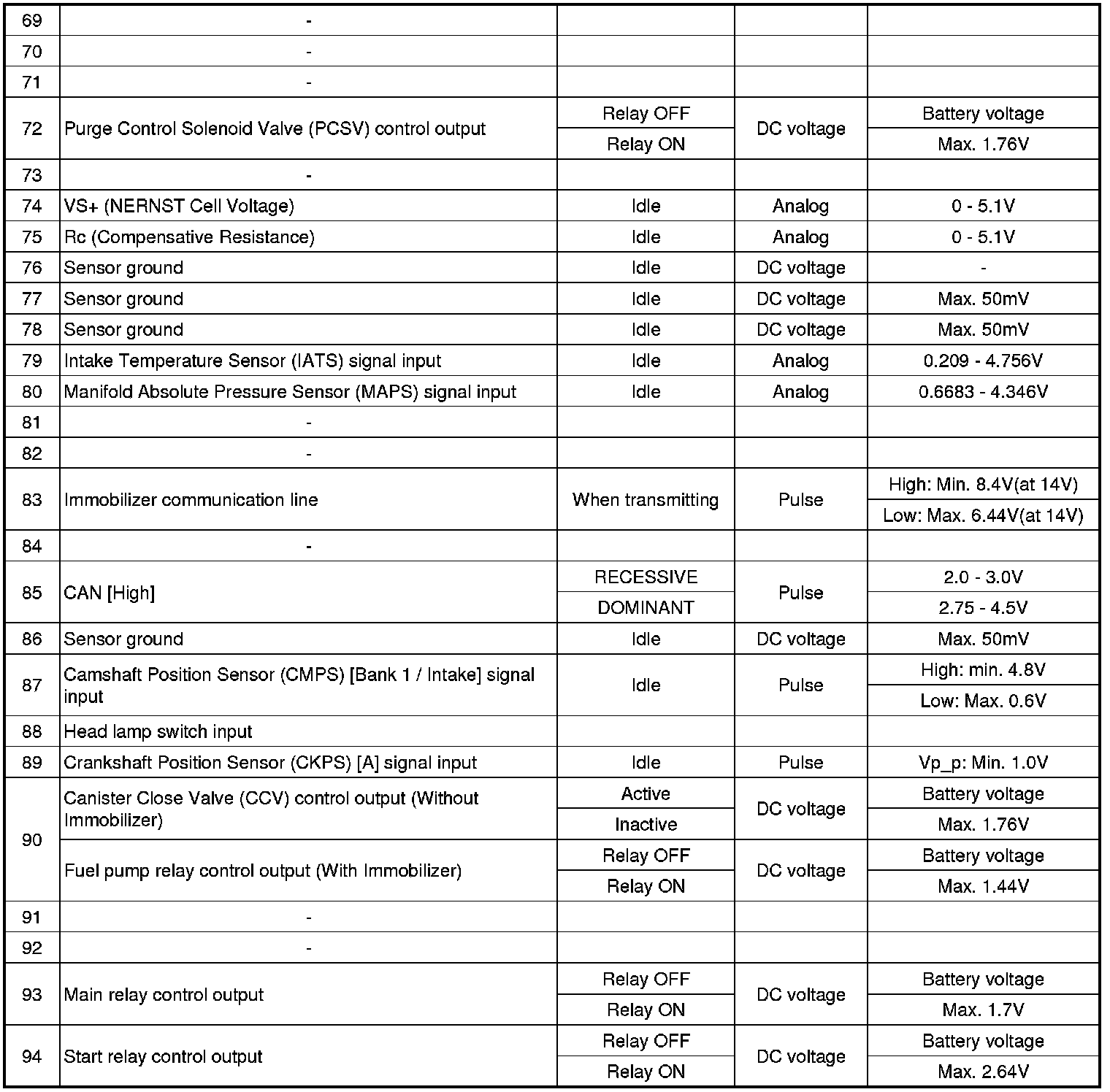

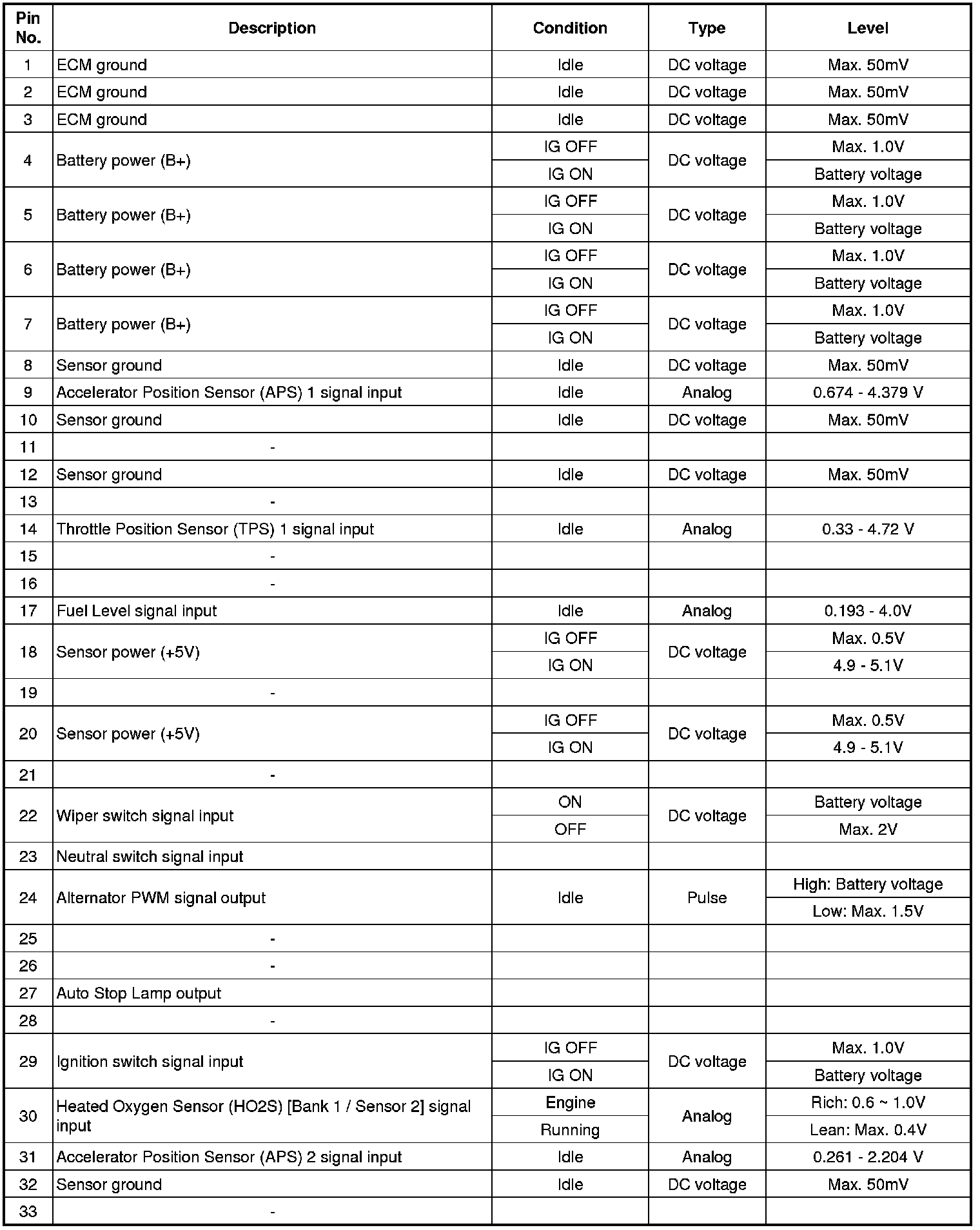

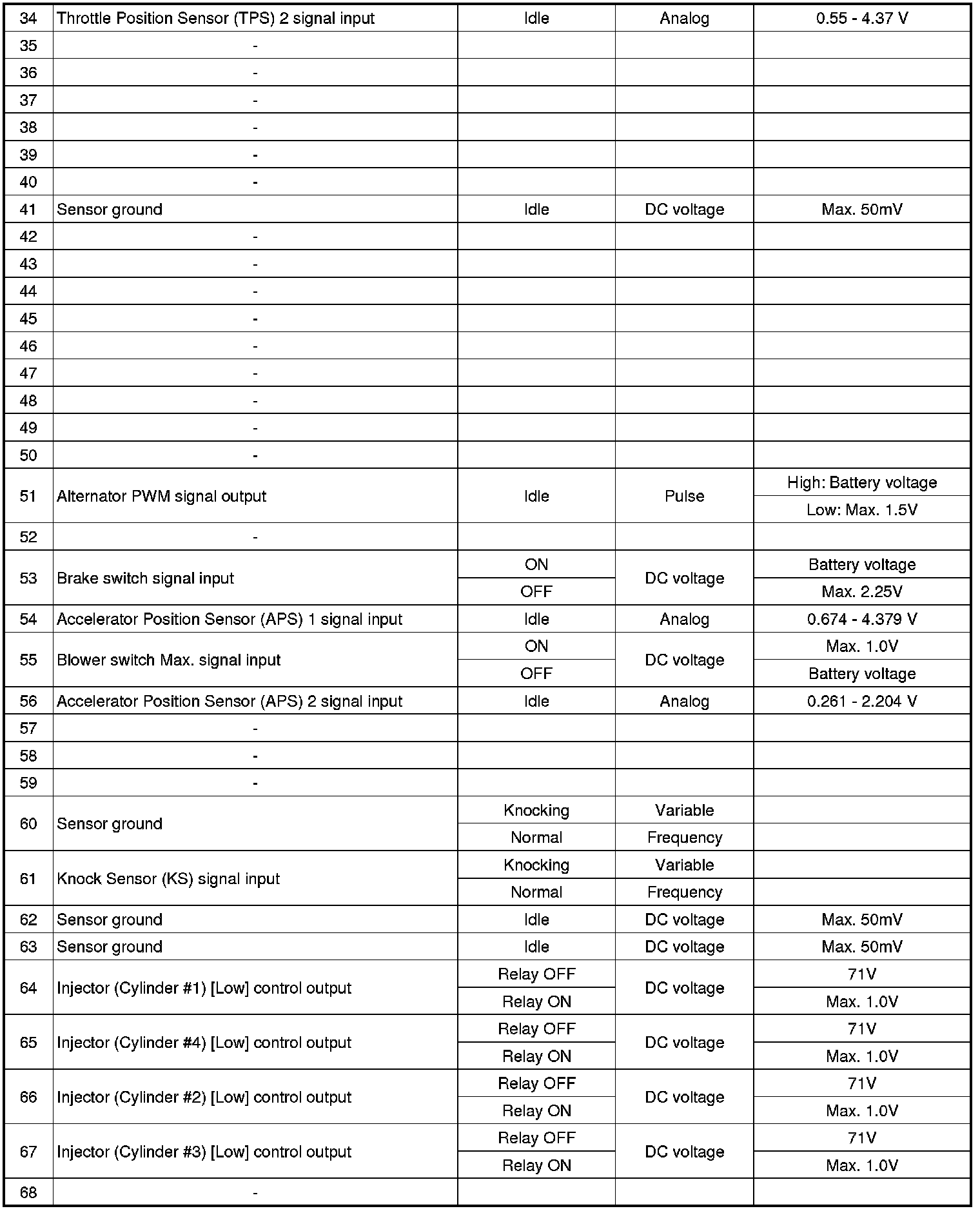

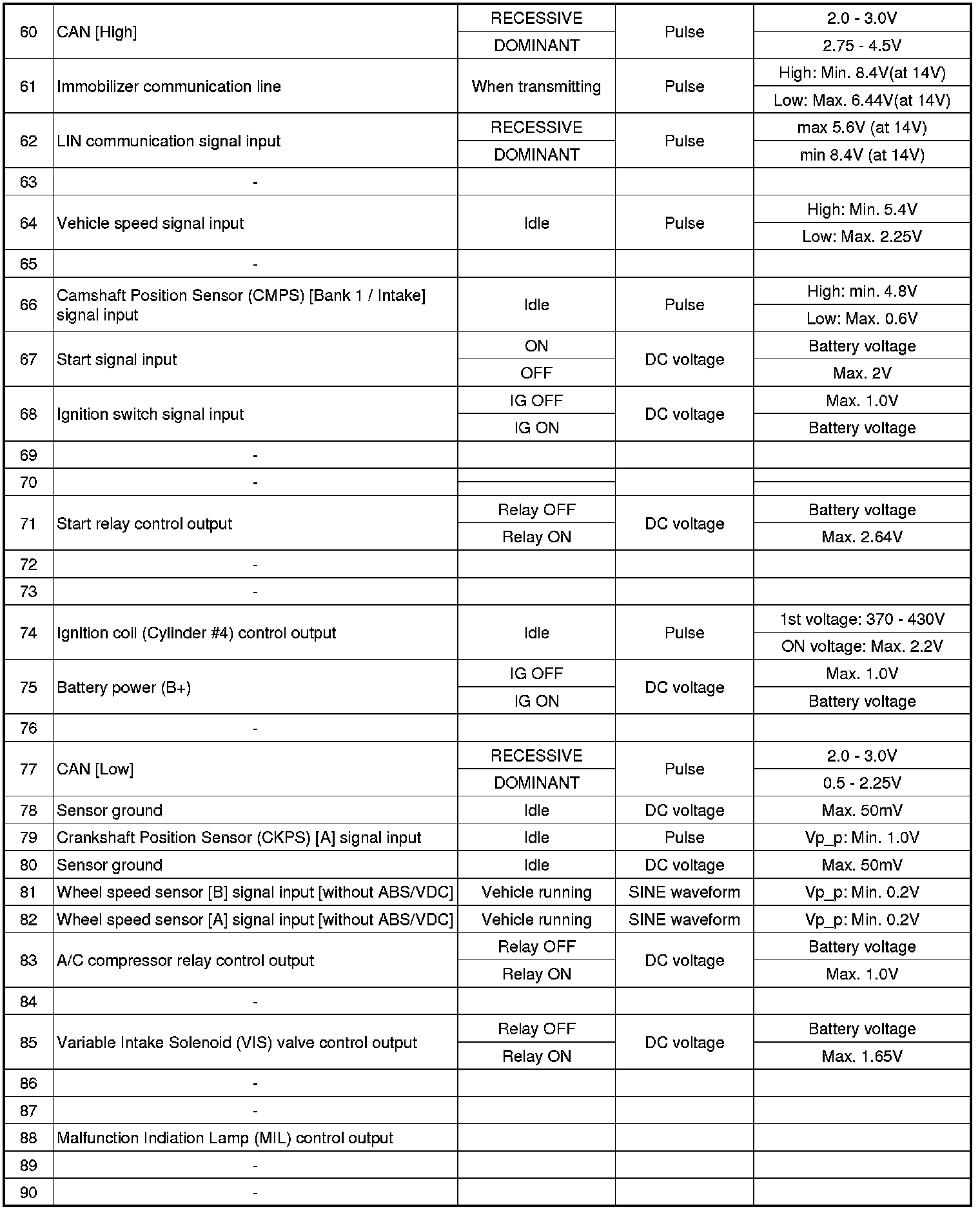

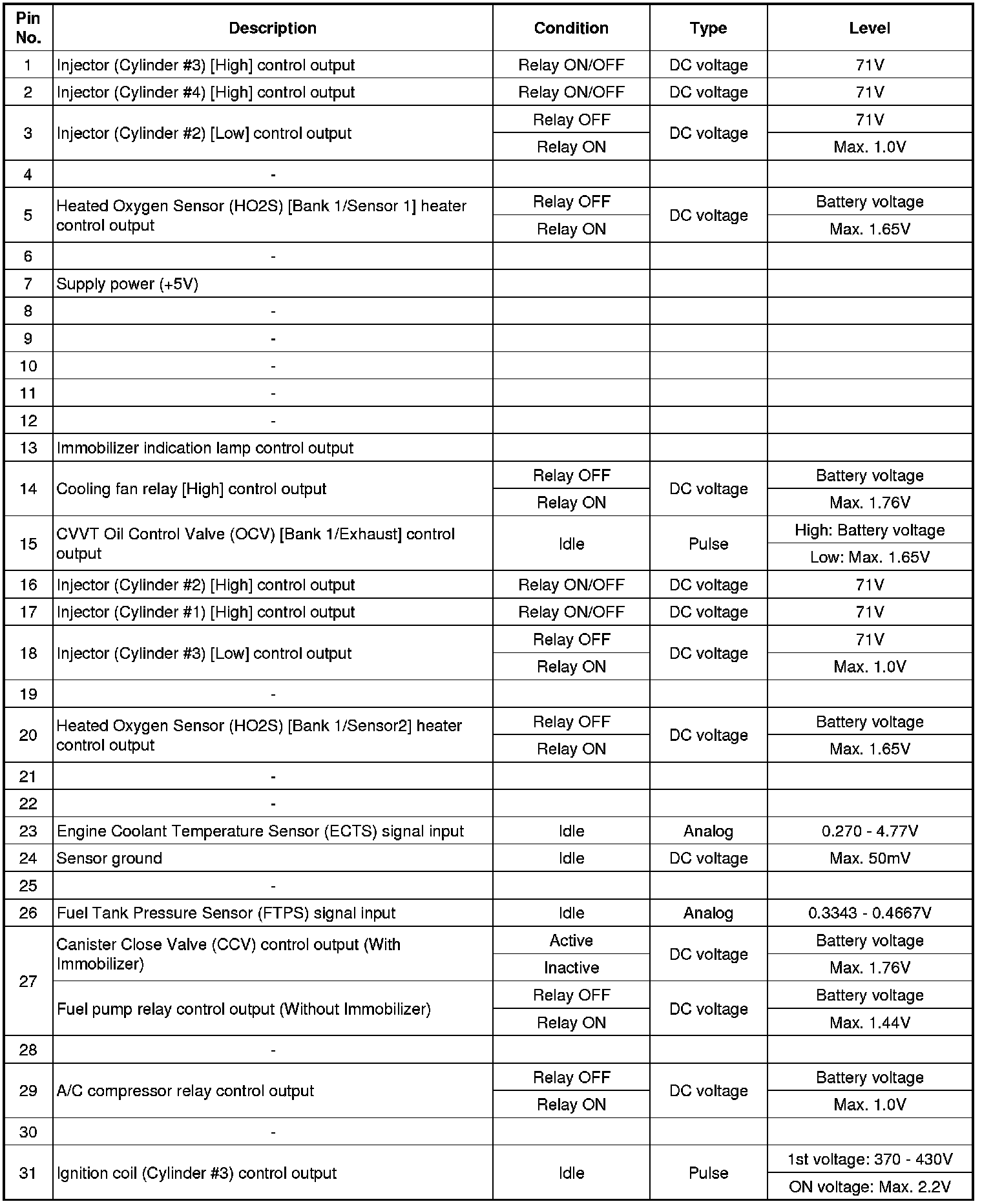

ECM Terminal Input/Output Signal (M/T)
Connector [EGGM-AG]
Connector [EGGM-KG]
ECM Terminal And Input/Output signal [A/T]

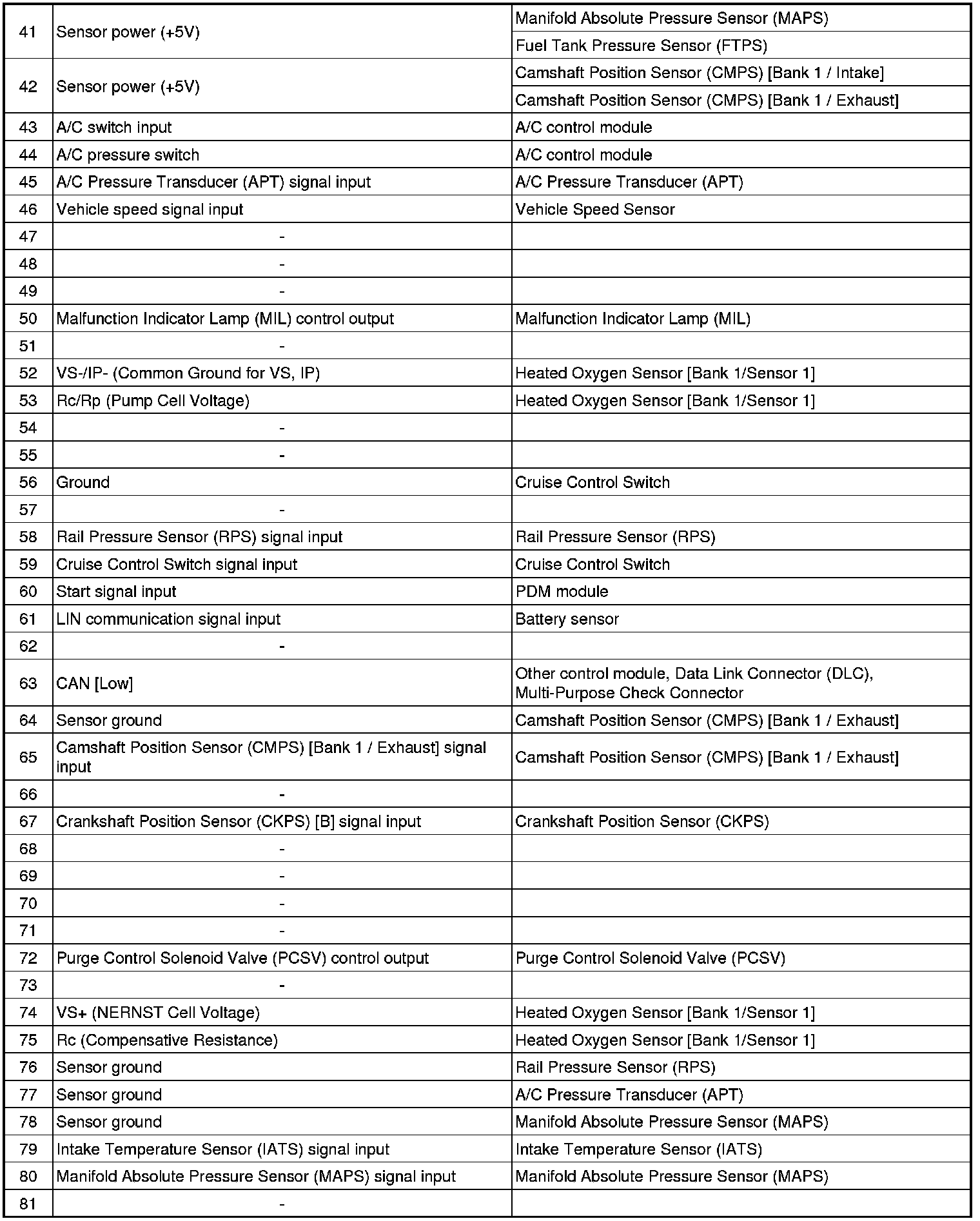

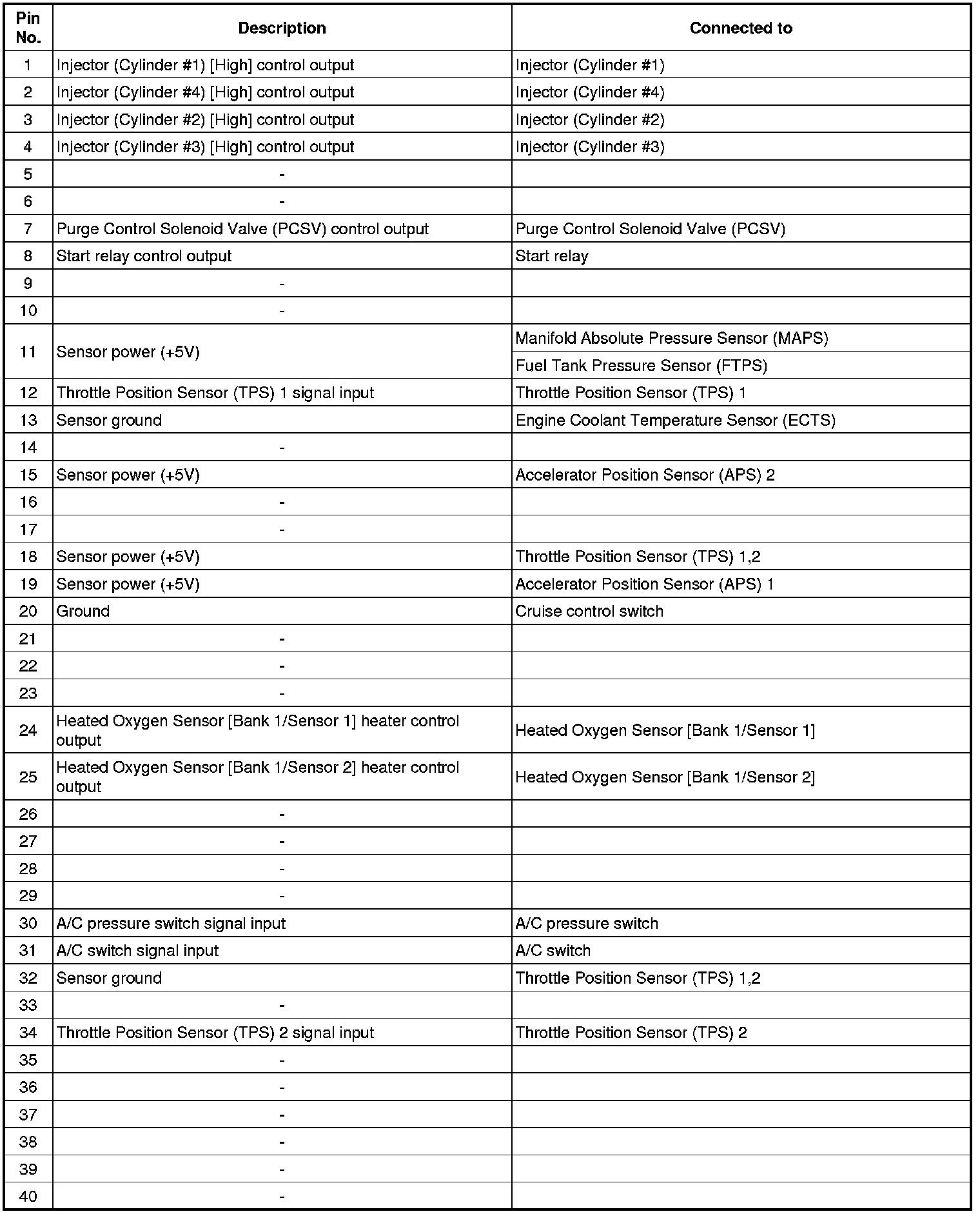

ECM Terminal Function (A/T)

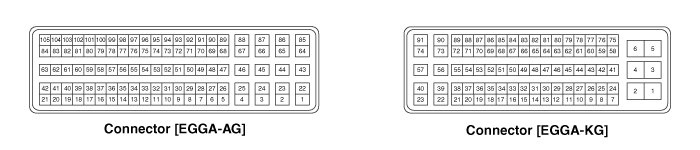

Connector [EGGA-AG]
Connector [EGGA-KG]

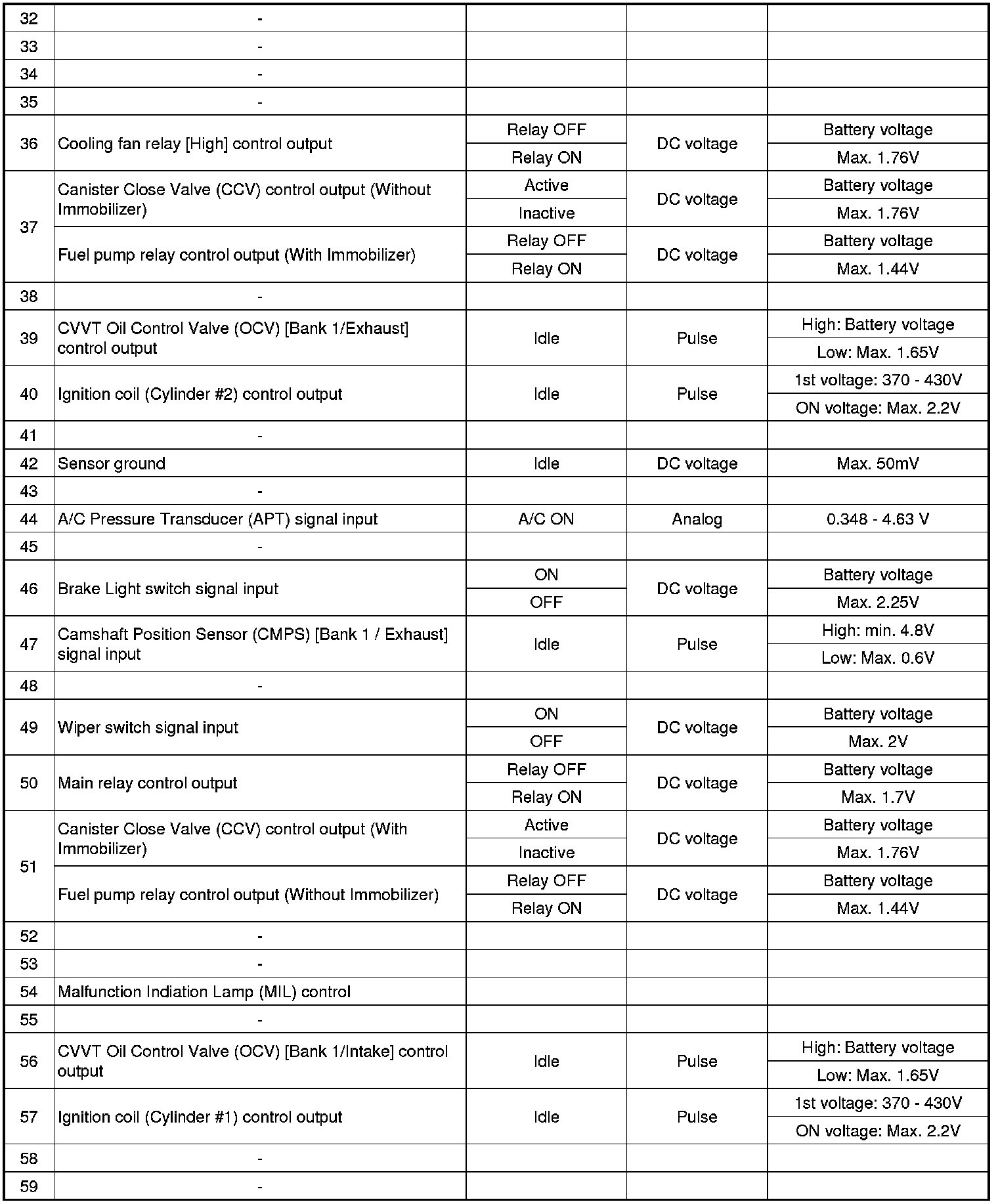

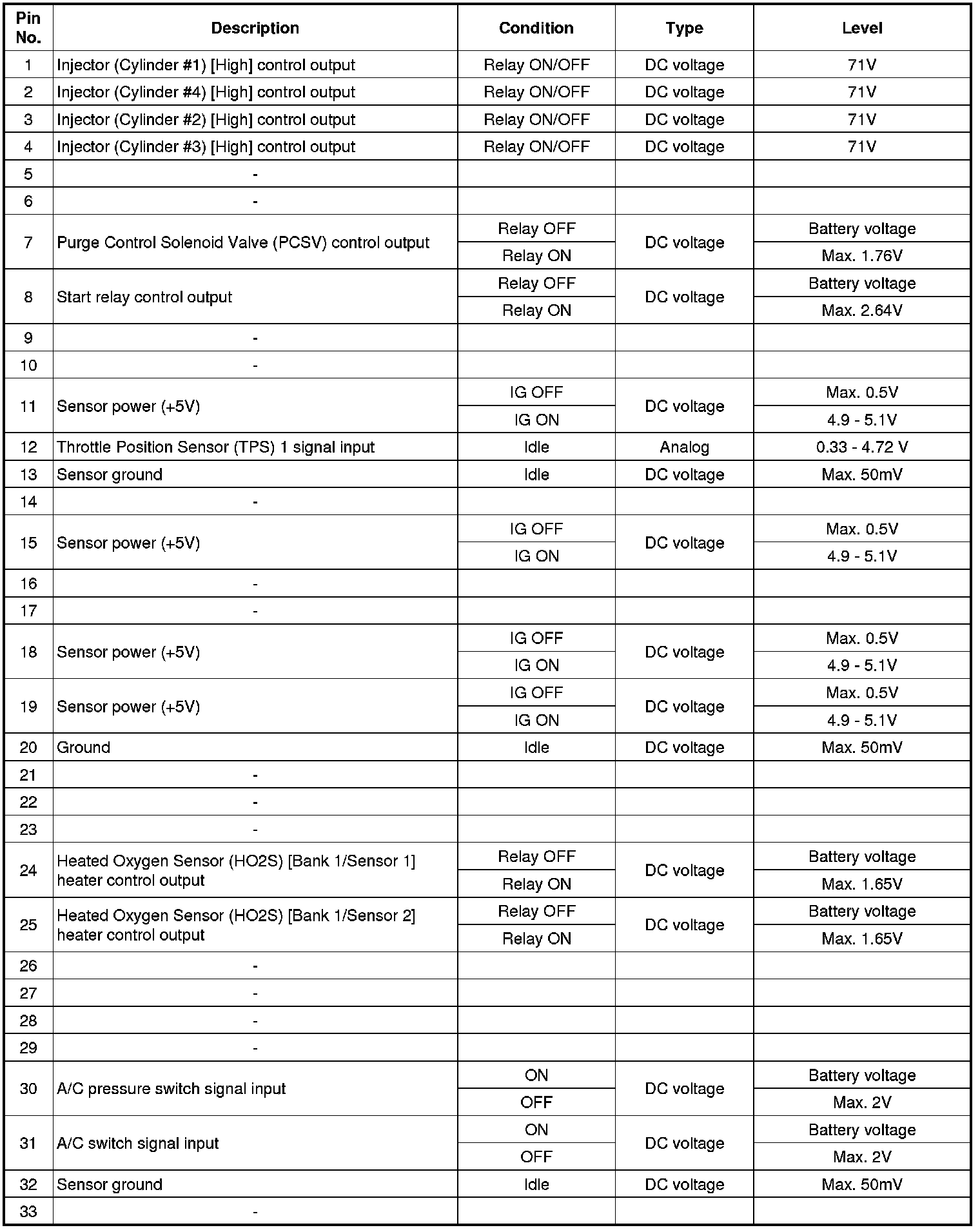

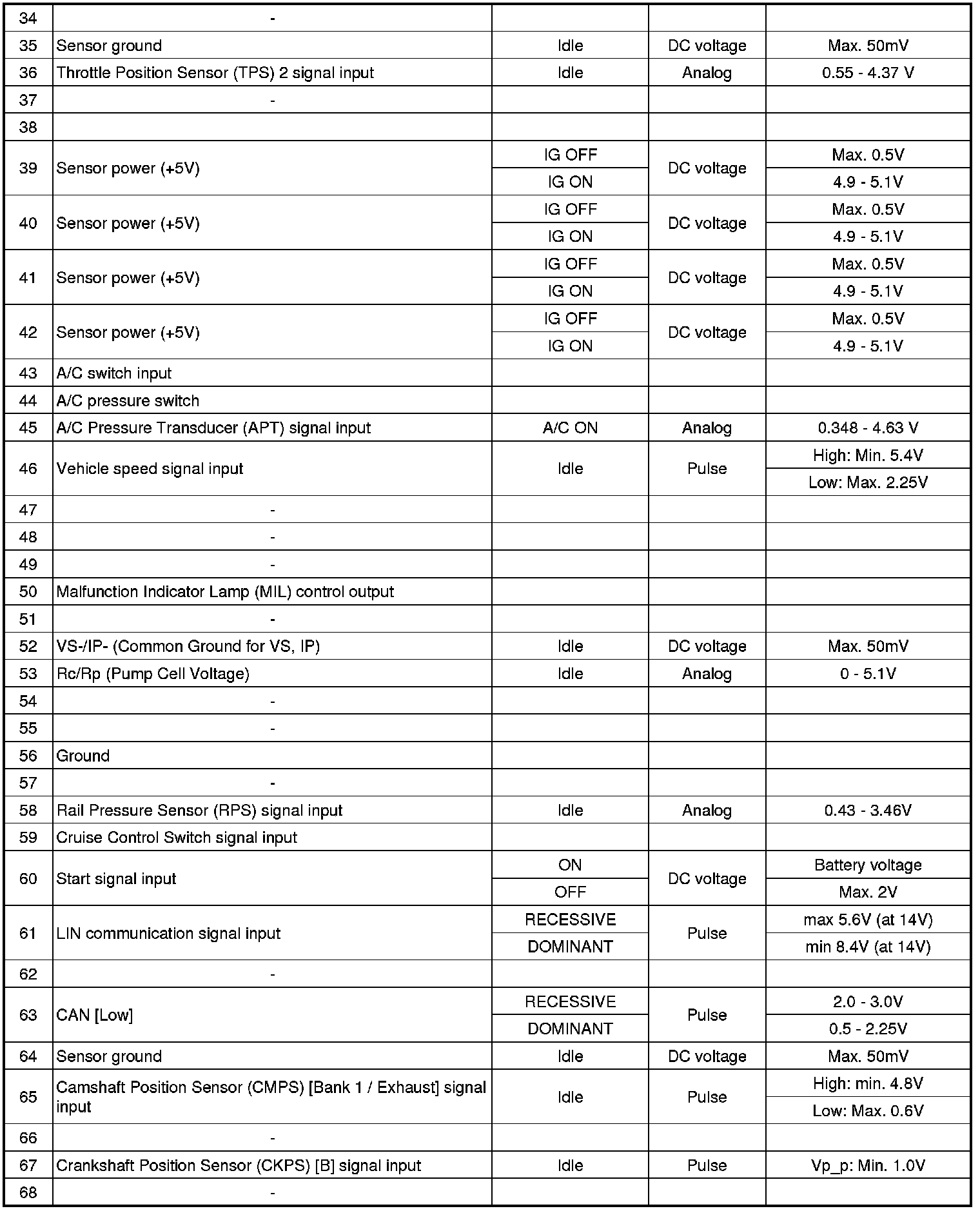

ECM Terminal Input/Output Signal (A/T)
Connector [EGGA-AG]
Connector [EGGA-KG]

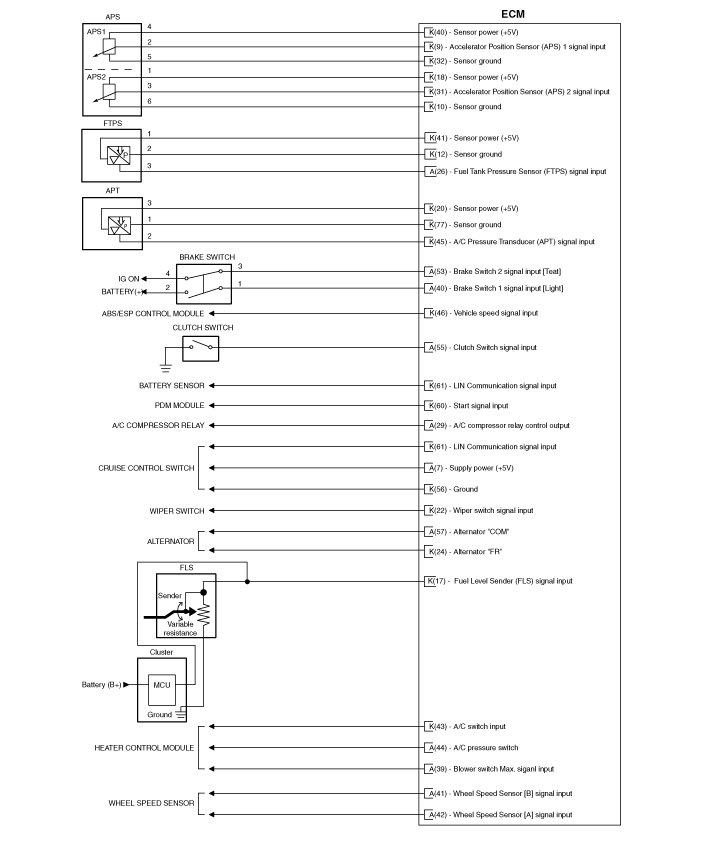

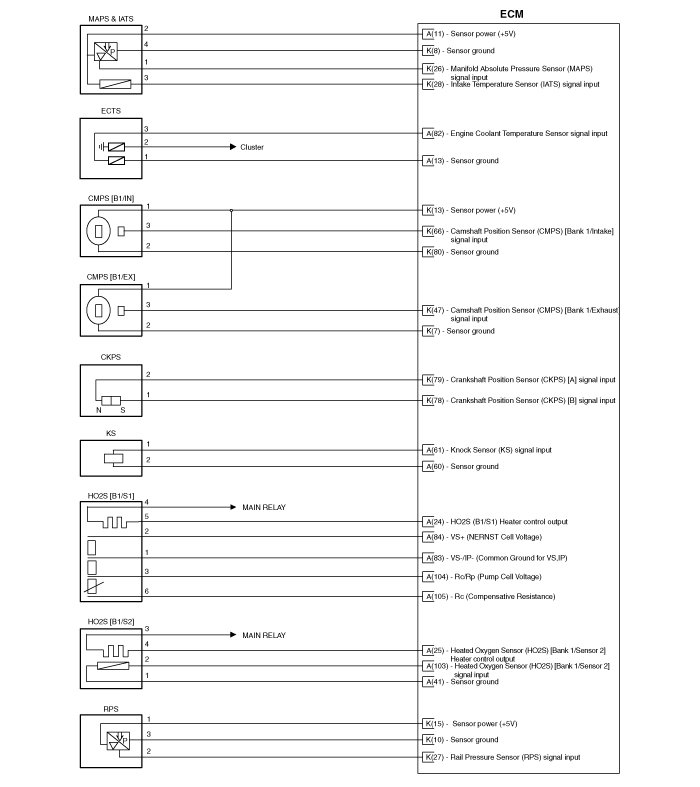

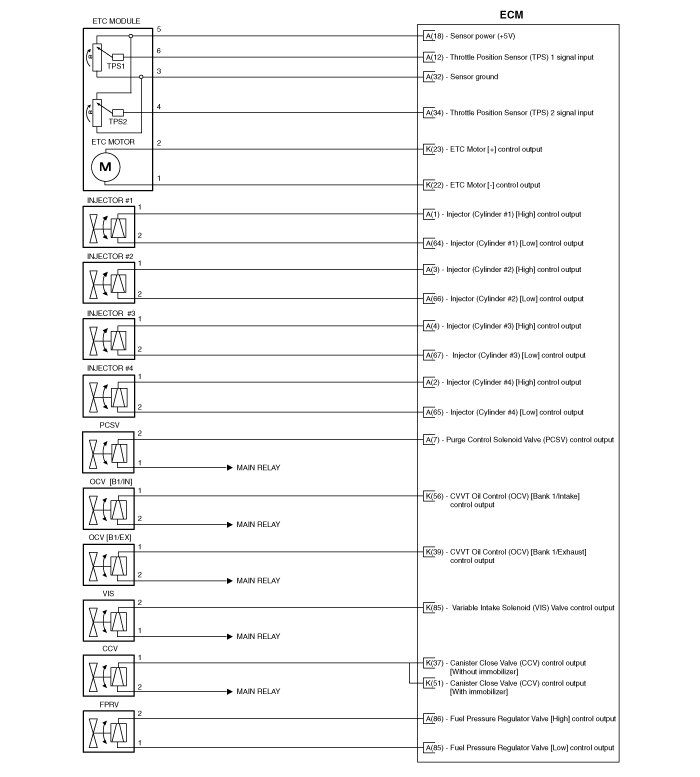

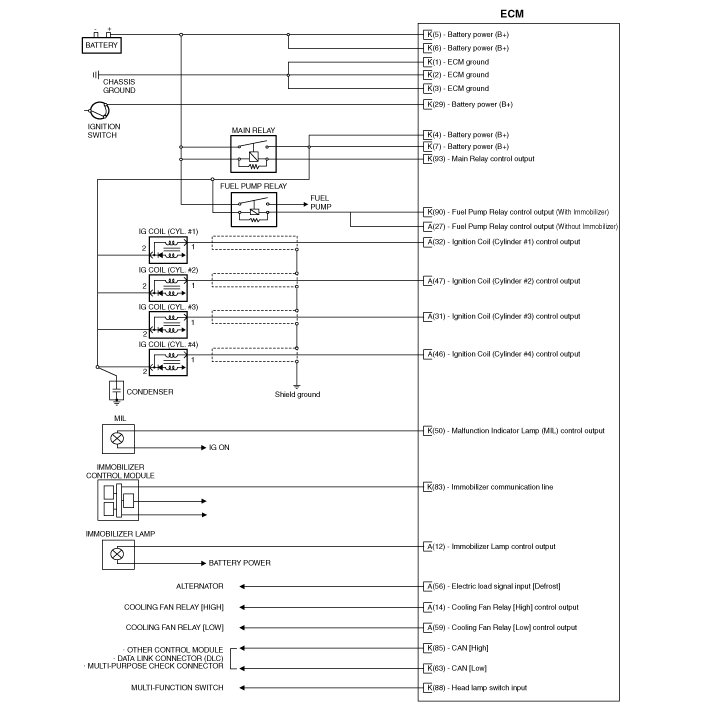

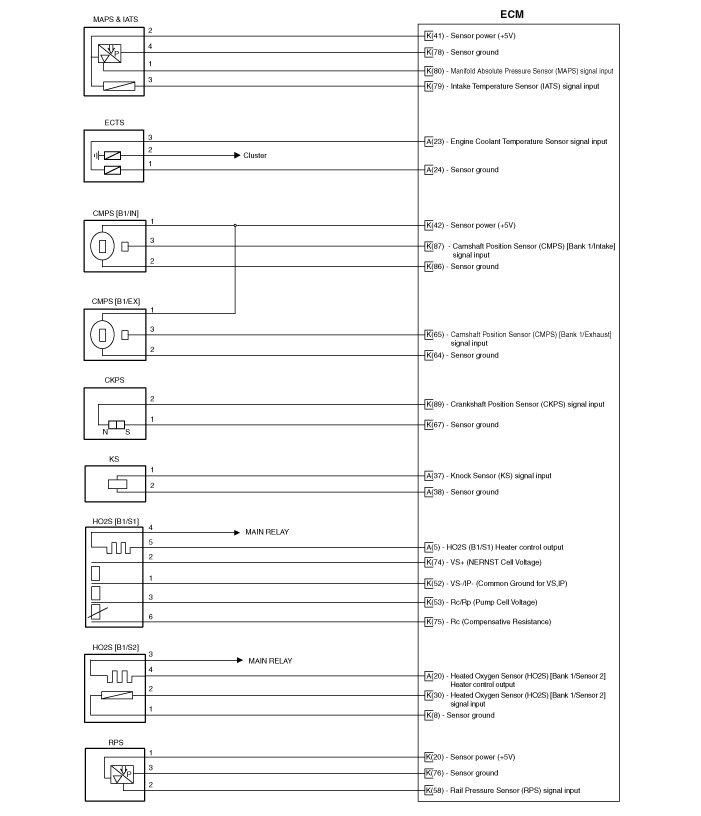

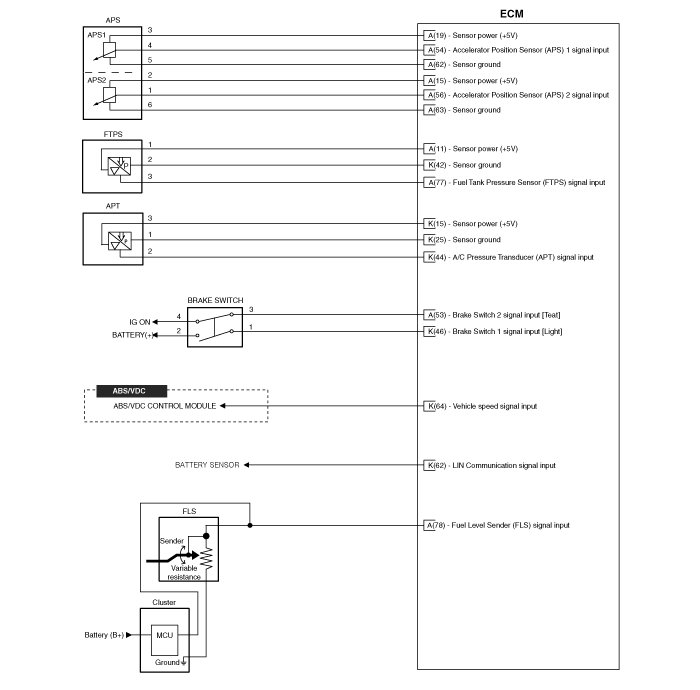

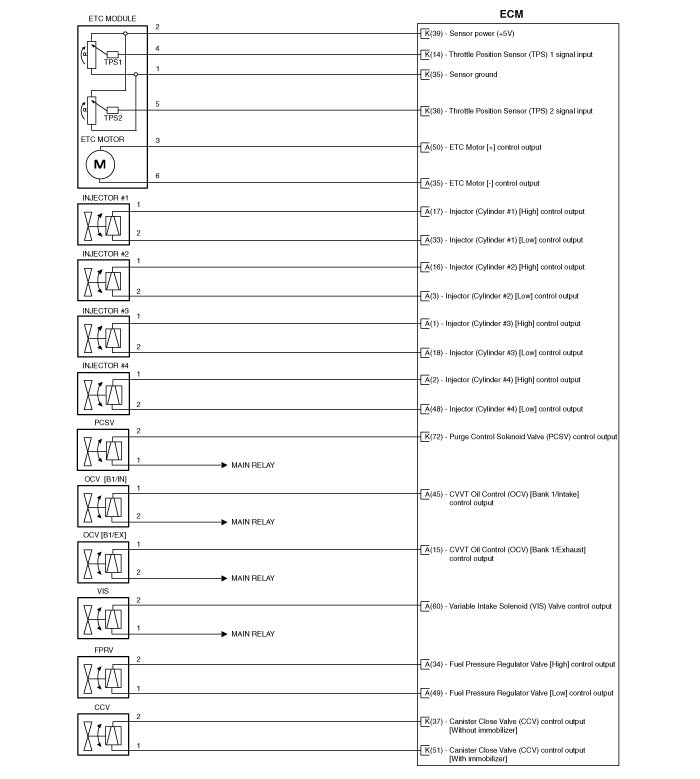

Circuit Diagram
(M/T)

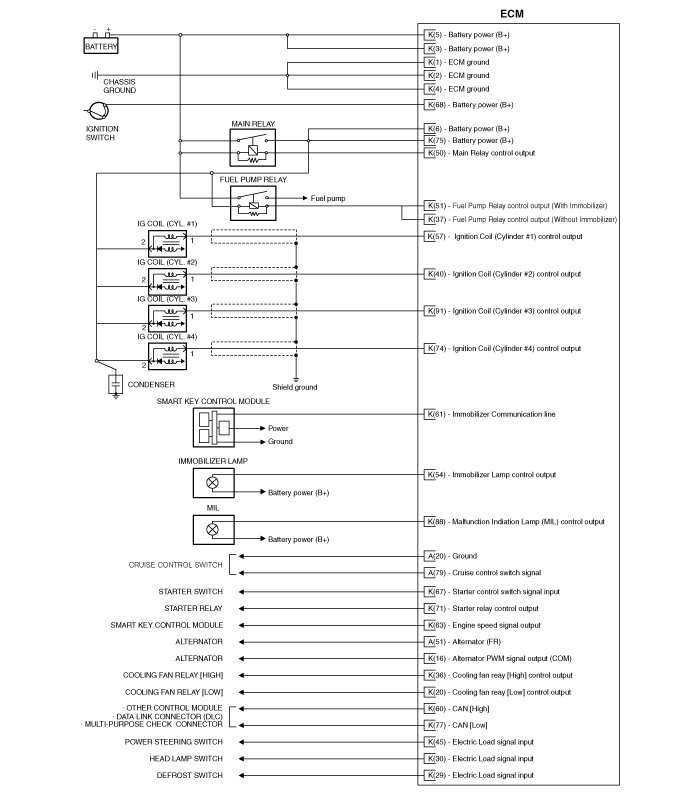

(A/T)
