System Specifications
Specification
Ignition System

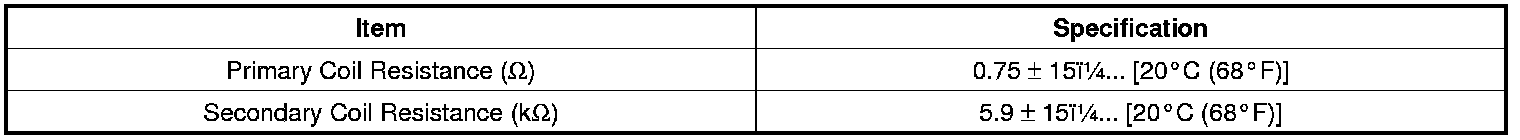

Ignition Coil

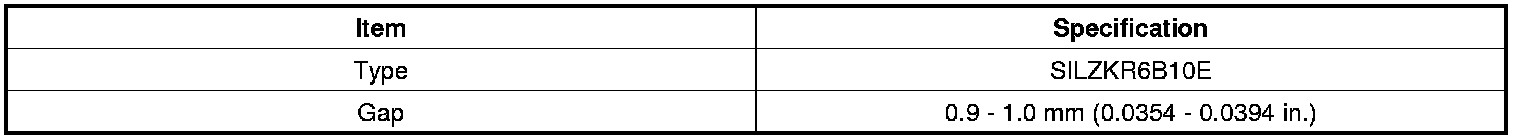

Spark plug

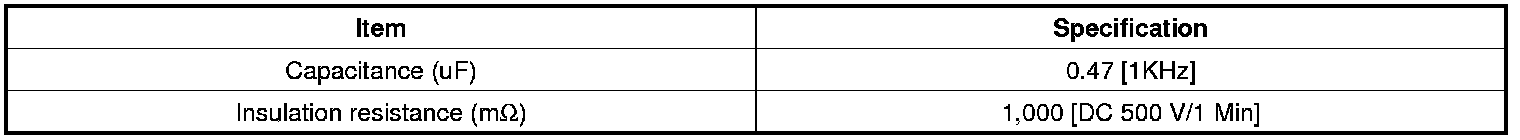

Condenser

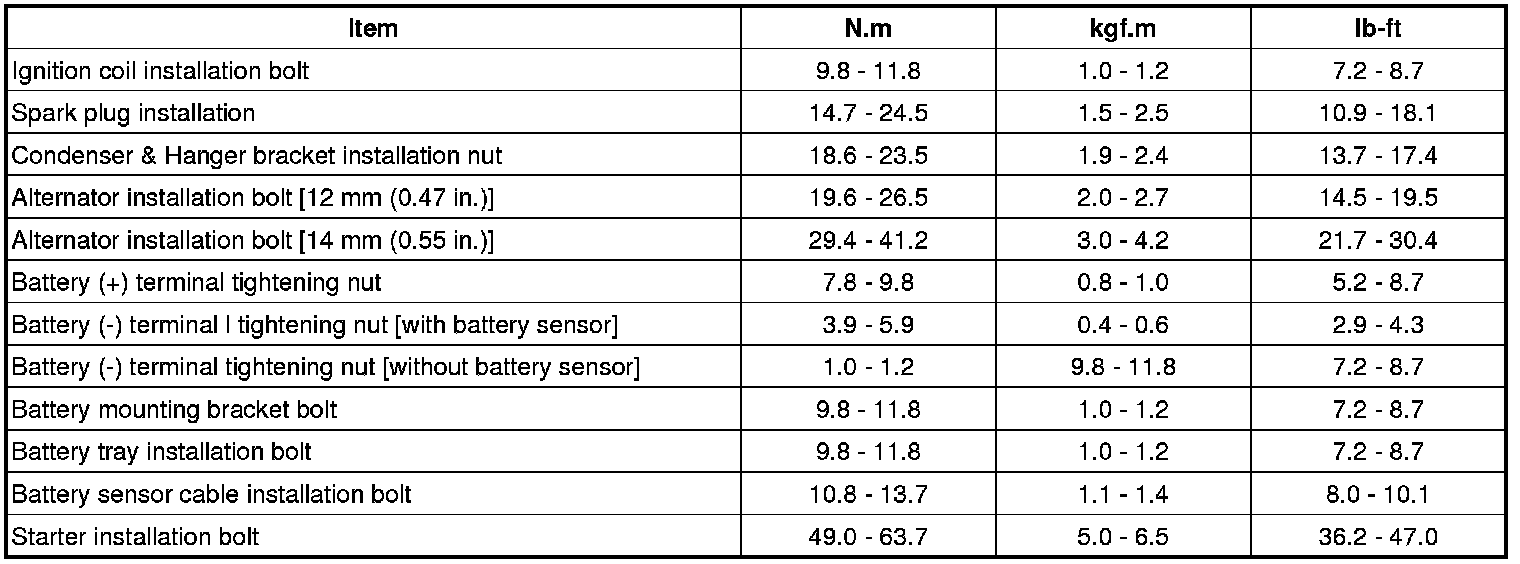

Tightening Torques
