System Specifications
Specification
Starting System

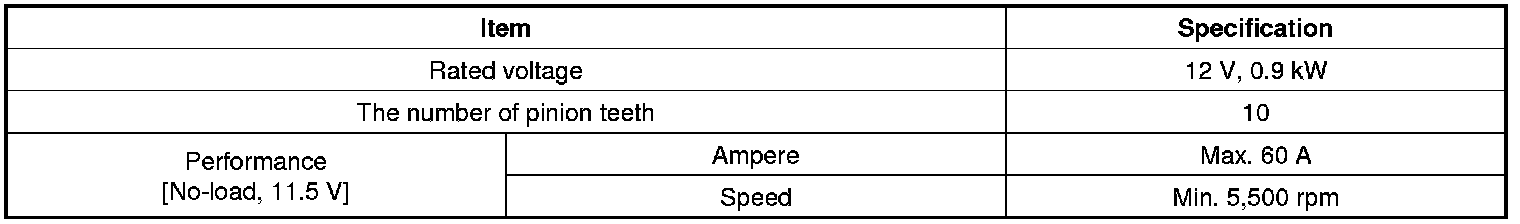

Starter [Non-ISG type]

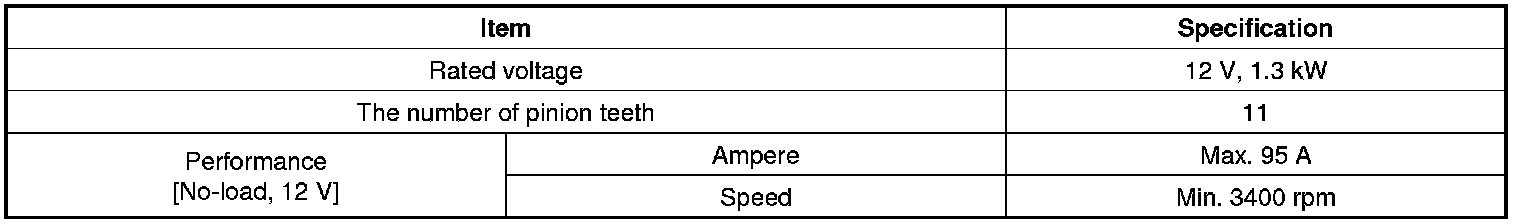

Starter [ISG type]
Tightening Torques
