Components (1)

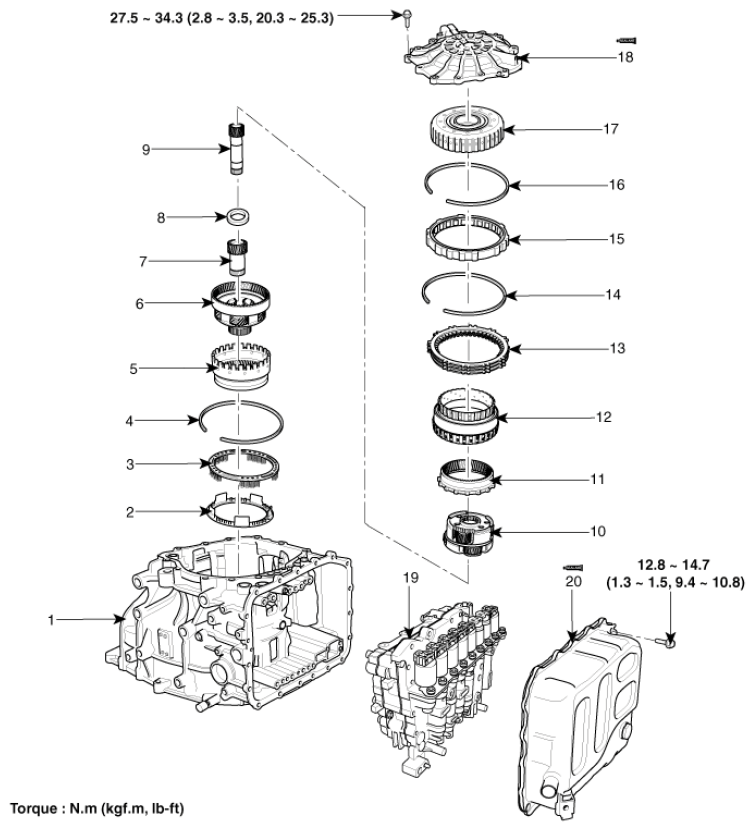

Fig 1: Exploded View Of Automatic Transaxle Components With Torque Specifications (1 Of 2)
G07389022Courtesy of KIA MOTORS AMERICA, INC.
