Oil Level Check

NOTE: A check of ATF level is not normally required during scheduled services. If an oil leak is found, perform the oil level check procedure after repairs are completed.

CAUTION: When checking the oil level, be careful not to enter dust, foreign matters, etc. from fill hole.

Remove the eyebolt (A).
Eyebolt tightening torque:

34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.6 lb-ft)

CAUTION: Use new eyebolt gasket.
Add ATF SP-IV 700cc to the ATF injection hole.

Fig 1: Eyebolt
Courtesy of KIA MOTORS AMERICA, INC.
Start the engine. (Don't step on brake and accelerator simultaneously.)
Confirm that the temperature of the A/T oil temperature sensor is 50 ~ 60°C (122 ~ 140°F) with the GDS.
Shift the select lever slowly from "P" to "D", then "D" to "P" and repeat one more at idle.
CAUTION: Keep on each speed position more than 2 sec.
Lift the vehicle, then remove the oil level plug (A) from the valve body cover.

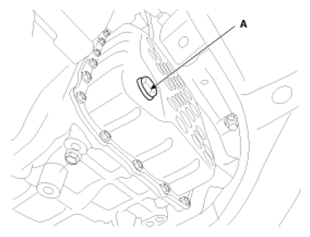

Fig 2: Identifying Oil Level Plug
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: At this time, the vehicle must be a horizontal state.
If the oil flows out of the overflow plug in thin steady stream, the oil level is correct.
Then finish the procedure and tighten the oil plug.
NOTE:
Oil level check (excess or shortage) method
- Excess: Drain quantity exceed 900cc for two minutes. (50 ~ 60°C (122 ~ 140°F))
- Shortage: No drain.
CAUTION: If there is no damage at the automatic transaxle and the oil cooler, the oil cooler hose, transaxle case, valve body tightening state are normal, ATF must drop out after performing above 1 to 7 procedures. After performing above 1 to 7 procedures, if the oil doesn't drop out, inspect the automatic transaxle system.

CAUTION: Use new oil level plug gasket.

Oil level plug tightening torque:

34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.6 lb-ft)
Put down the vehicle with the lift and then tighten the eyebolt.
