Repair Procedures: Removal

Set room side lever and T/M side lever to "N" position.
Remove the battery and the battery tray. Refer to BATTERY .
Remove the air cleaner assembly. Refer to INTAKE MANIFOLD .
Remove the shift cable mounting nut (B).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
Disconnect the inhibitor switch connector (A).

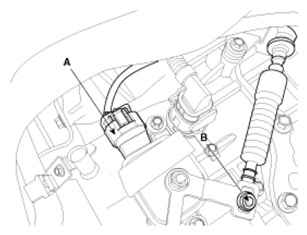

Fig 1: Inhibitor Switch Connector & Shift Cable Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the manual control lever (A) and the washer (B) after removing a nut (C).

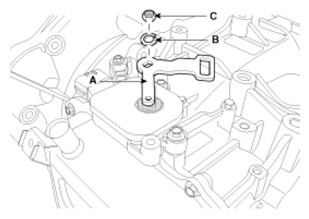

Fig 2: Manual Control Lever, Washer & Nut
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: When installing, fix the manual control lever and the inhibitor switch with Ø5 mm (0.1969 in.) fixing jig. And then tighten the inhibitor assembly mounting bolts.
Remove the inhibitor assembly (A) after removing the bolts (2 ea.).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

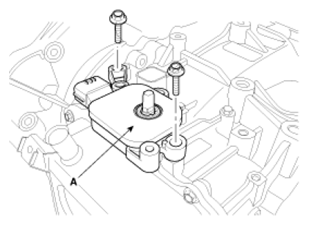

Fig 3: Inhibitor Assembly
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: When installing, tighten the inhibitor assembly mounting bolt lightly.
