Repair Procedures: Removal

Remove the battery and the battery tray. Refer to BATTERY .

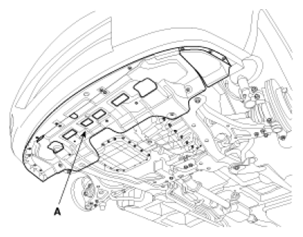

Remove the under cover (A).
Under cover installation bolt:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 1: Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. Refer to AUTOMATIC TRANSAXLE SYSTEM .
Remove the valve body cover (A) and eyebolt (B).
Tightening torque:
1. 12.8 ~ 14.7 N.m (1.3 ~ 1.5 kgf.m, 9.4 ~ 10.8 lb-ft)
2. 34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.6 lb-ft)
  CAUTION: Use new gasket on the eyebolt.

  NOTE: Remove installation bolts in the engine room first and then remove others under the vehicle.

  Fig 2: Valve Body Cover & Eyebolt
  Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the oil temperature sensor connector (A).

Fig 3: Oil Temperature Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

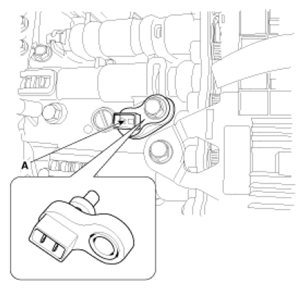

Remove the oil temperature sensor (A) after removing a bolt.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

CAUTION: Be careful not to damage the harness lock connector.

Fig 4: Oil Temperature Sensor
Courtesy of KIA MOTORS AMERICA, INC.
