Components and Components Location: Component

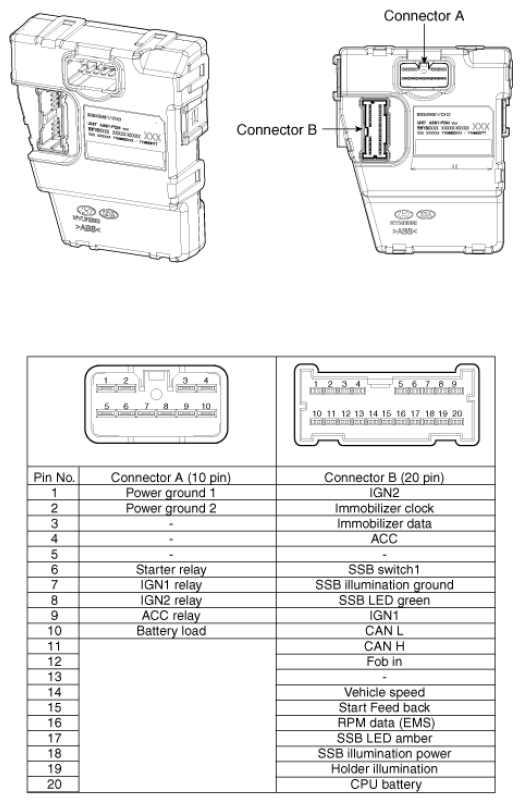

Fig 1: Identifying Power Distribution Module Connectors
G08329514Courtesy of KIA MOTORS AMERICA, INC.
