Components and Components Location: Component

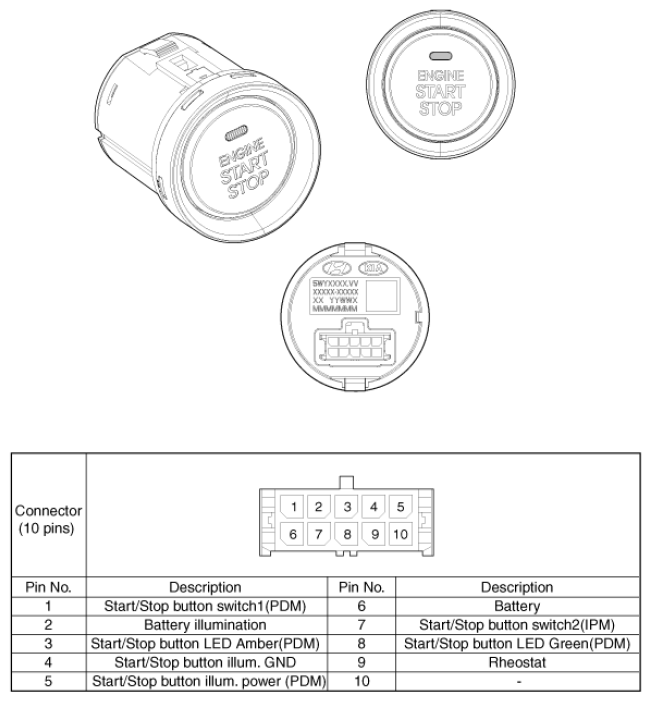

Fig 1: Identifying Start Stop Button And Connector

G08329507

Courtesy of KIA MOTORS AMERICA, INC.
