Circuit Diagram: (A/T)

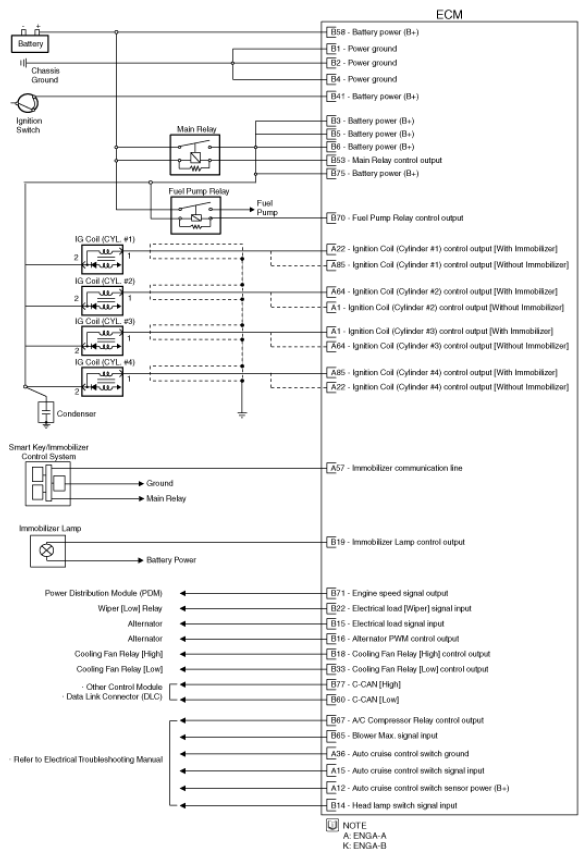

Fig 1: ECM - Circuit Diagram (A/T) (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

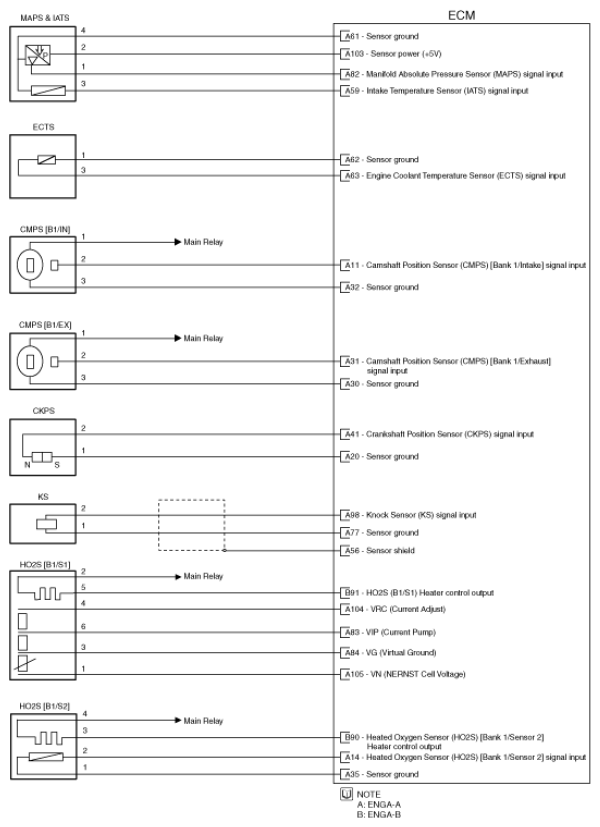

Fig 2: ECM - Circuit Diagram (A/T) (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

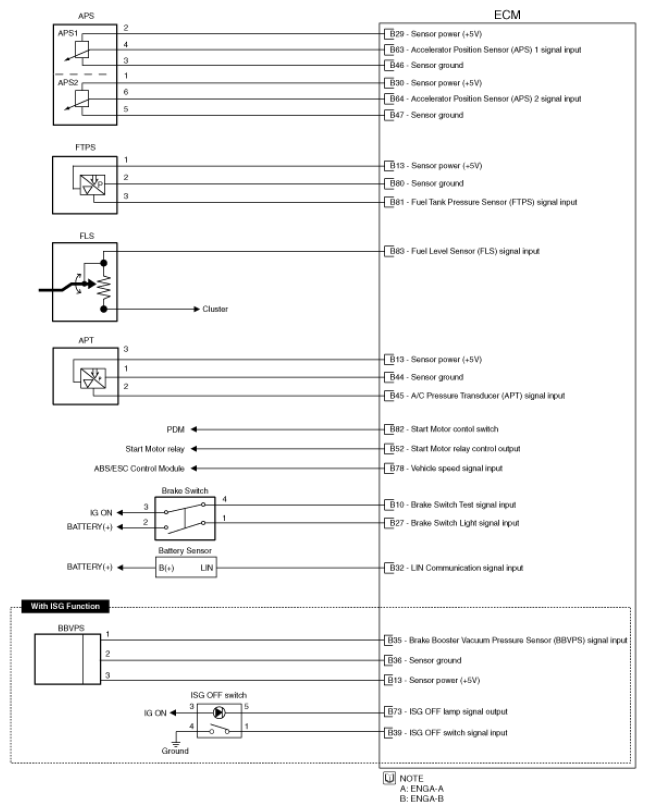

Fig 3: ECM - Circuit Diagram (A/T) (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

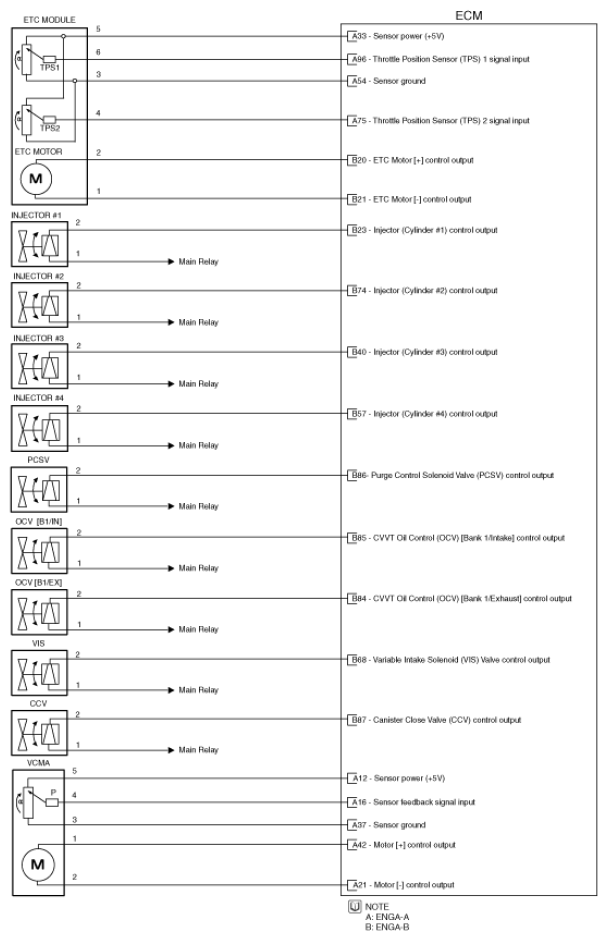

Fig 4: ECM - Circuit Diagram (A/T) (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
