Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the engine coolant temperature sensor connector (A).
  3. Remove the sensor (B).

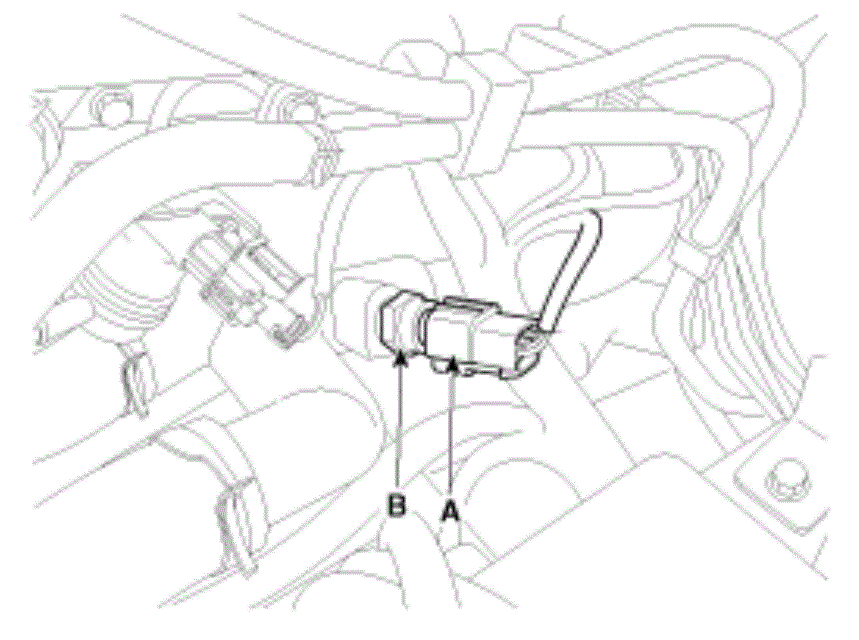

    Fig 1: Engine Coolant Temperature Sensor And Connector Component Location
    G08331039Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.
  4. Supplement the engine coolant (Refer to REFILLING AND BLEEDING .
