Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the knock sensor connector (A).

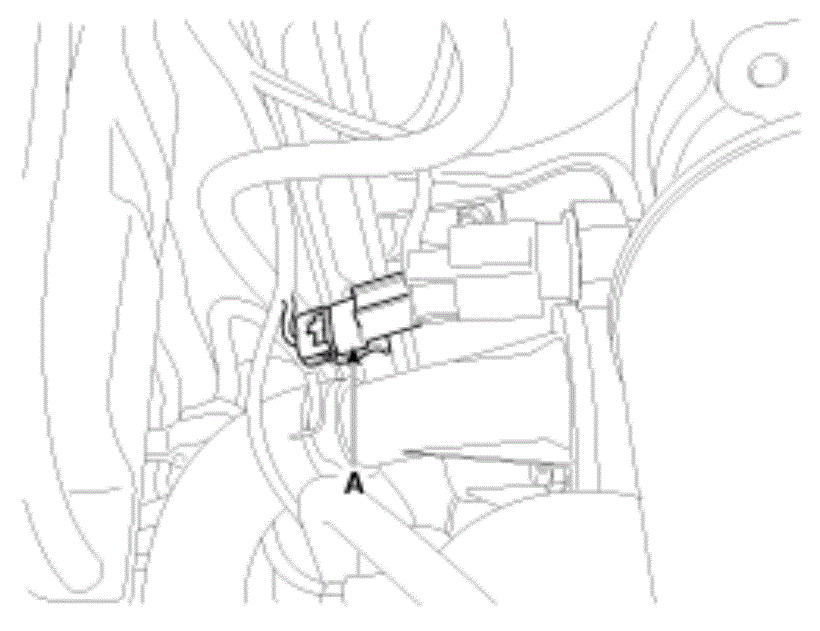

    Fig 1: Identifying Knock Sensor Connector
    G08331055Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the intake manifold (Refer to REMOVAL AND INSTALLATION .
  4. Remove the installation bolt (A), and then remove the sensor from the cylinder block.

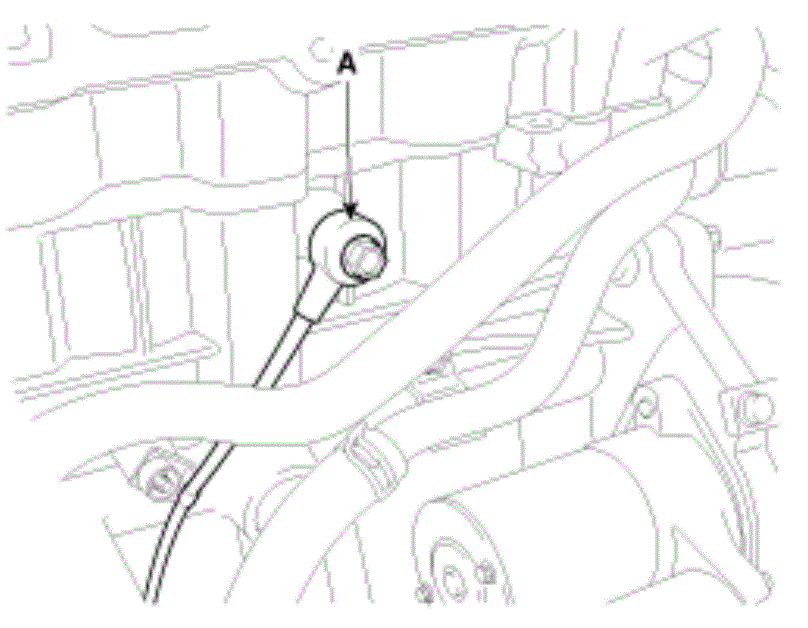

    Fig 2: Knock Sensor Component Location
    G08331056Courtesy of KIA MOTORS AMERICA, INC.
