Spark Test

Disconnect the injector connectors (A).

Fig 1: Identifying Injector Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the ignition coil connectors (A).

Fig 2: Identifying Ignition Coil Connectors
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Fig 3: Pulling Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coils (A).

Fig 4: Identifying Ignition Coils
Courtesy of KIA MOTORS AMERICA, INC.
Using a spark plug socket, remove the spark plugs (A).

Fig 5: Identifying Spark Plugs
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful that no contaminates enter through the spark plug holes.
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

Fig 6: Installing Spark Plug To Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC.
Check if spark occurs while engine is being cranked.
NOTE: To prevent fuel being injected from injectors while the engine is being cranked, disconnect the injector connectors. Crank the engine for no more than 5 ~ 10 seconds.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plugs.
Tightening torque:

14.7 ~ 24.5 N.m (1.5 ~ 2.5 kgf.m, 10.8 ~ 18.1 lb-ft)
Install the ignition coils.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

NOTE: When inserting ignition coil into the cylinder head cover for spark plug to be inserting ignition coil, the sealing cap of ignition coil must be mated totally with inner side of cylinder head.
Reconnect the ignition coil connectors.
Reconnect the injector connectors.

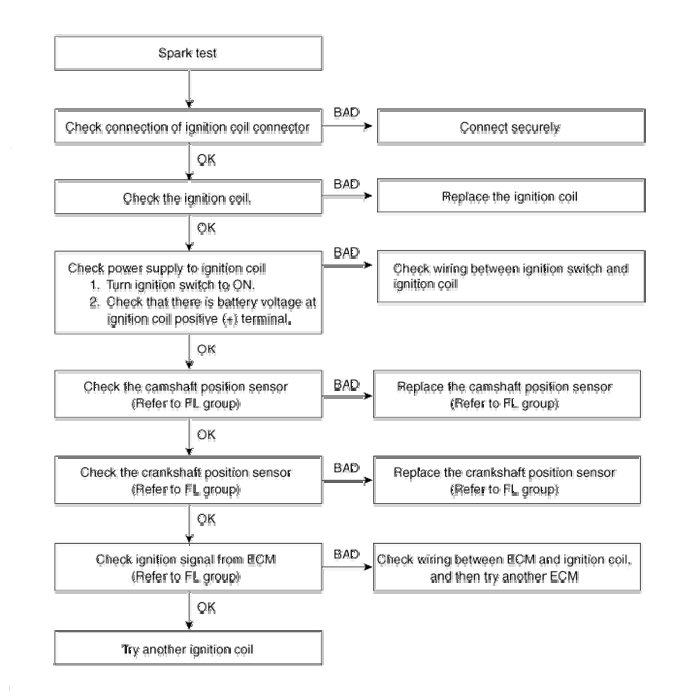

Fig 7: Spark Test Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
