Repair procedures: Removal

Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
Remove the battery and the battery tray.
(Refer to "CHARGING SYSTEM " in EE group.)
Remove the air cleaner assembly.
(Refer to "INTAKE MANIFOLD " in EM group.)
Remove the shift cable mounting nut (B).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 Kgf.m, 5.7 ~ 8.6 lb-ft)
Disconnect the inhibitor switch connector (A).

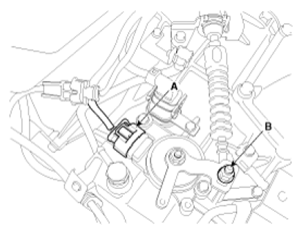

Fig 1: Identifying Inhibitor Switch Connector And Shift Cable Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the manual control lever (B) and the washer after removing a nut (A).

Fig 2: Identifying Manual Control Lever And Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: When installing, affix the manual control lever and the inhibitor switch with Ø5mm (0.1969in.). Then tighten the inhibitor assembly mounting bolts.
Remove the inhibitor assembly (A) after removing the bolts (2ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

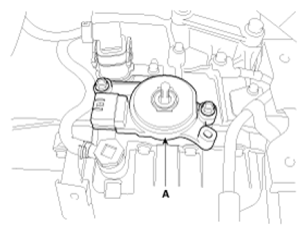

Fig 3: Identifying Inhibitor Assembly
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: When installing, tighten the inhibitor assembly mounting bolt lightly, so that necessary adjustments can be made. Tighten to specifications.
