Circuit Diagram

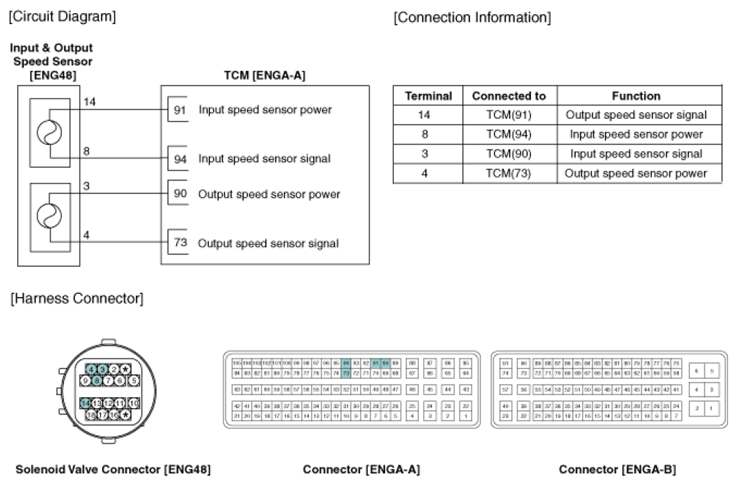

Fig 1: Input And Output Speed Sensor (ENG48) And TCM (ENGA-A) - Circuit Diagram With Connector Terminals End View
G08331238Courtesy of KIA MOTORS AMERICA, INC.
