Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

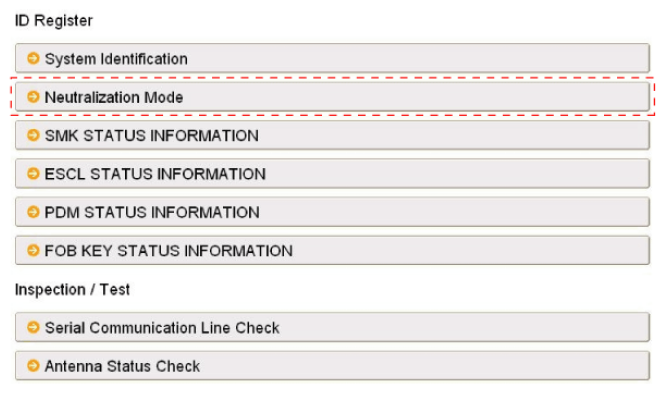

Fig 1: Display - Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.

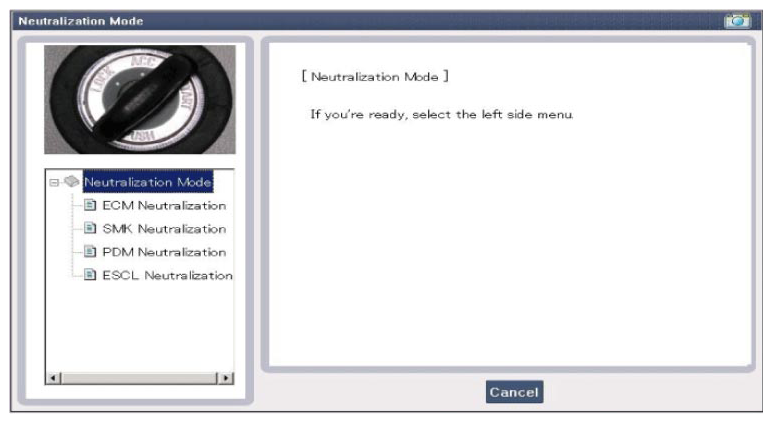

Fig 2: Display - Neutralization Mode Screen
Courtesy of KIA MOTORS AMERICA, INC.

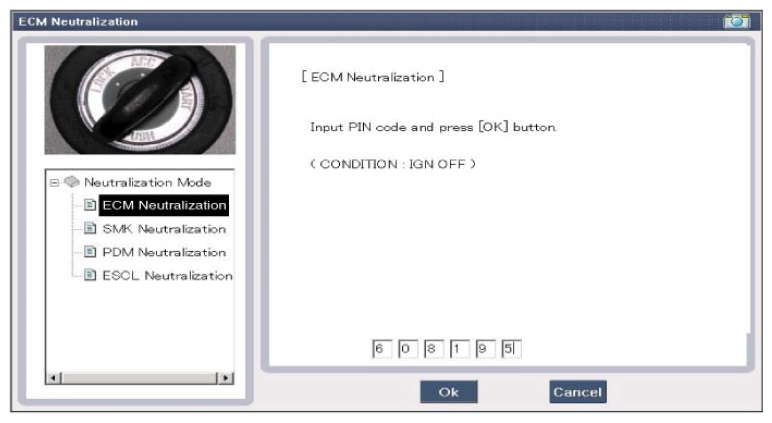

Fig 3: Display - ECM Neutralization Screen
Courtesy of KIA MOTORS AMERICA, INC.

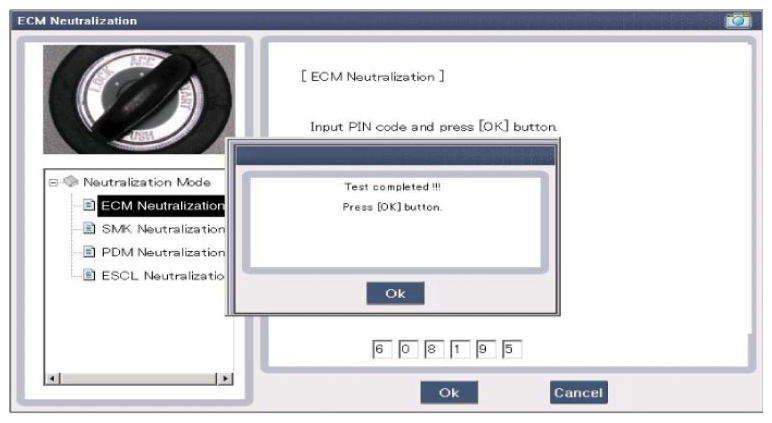

Fig 4: Display - ECM Neutralization Test Completed
Courtesy of KIA MOTORS AMERICA, INC.

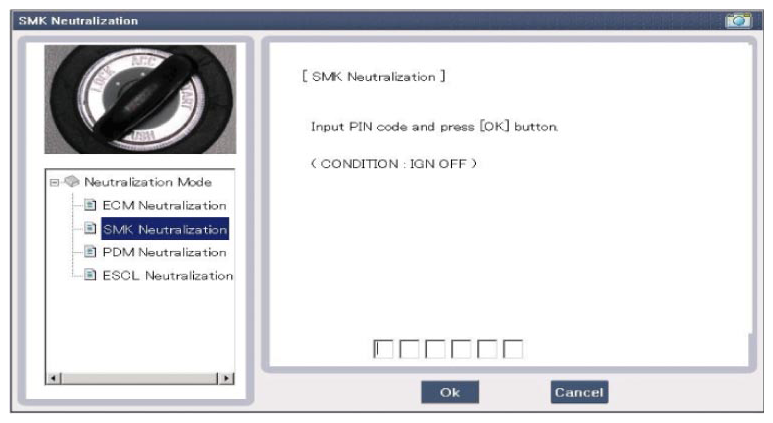

Fig 5: Display - SMK Neutralization Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Display - SMK Neutralization Screen (With PIN)
Courtesy of KIA MOTORS AMERICA, INC.

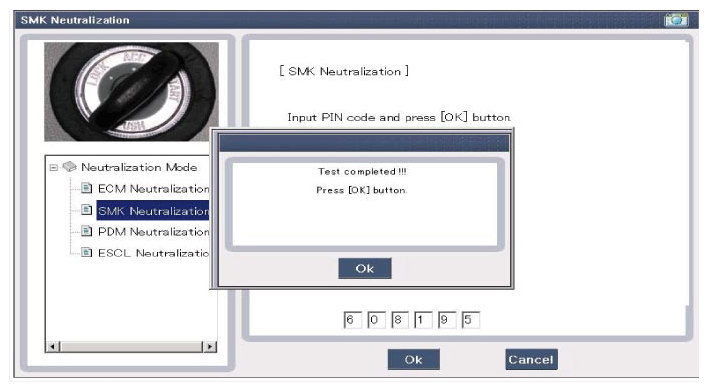

Fig 7: Display - SMK Neutralization Test Completed
Courtesy of KIA MOTORS AMERICA, INC.

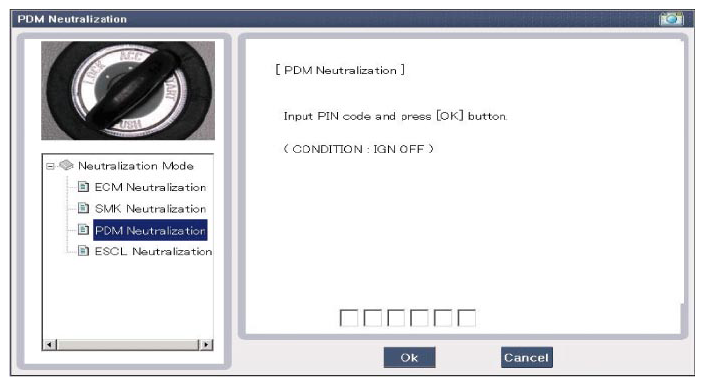

Fig 8: Display - PDM Neutralization Screen
Courtesy of KIA MOTORS AMERICA, INC.

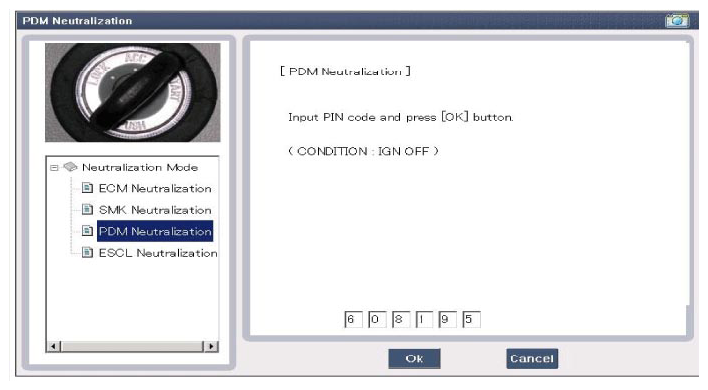

Fig 9: Display - PDM Neutralization Screen (With PIN)
Courtesy of KIA MOTORS AMERICA, INC.

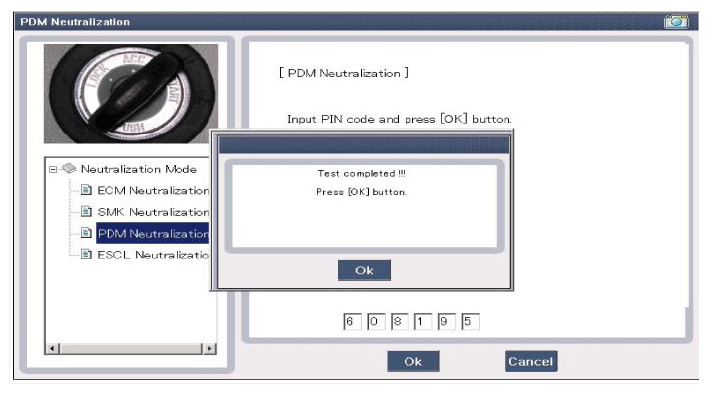

Fig 10: Display - PDM Neutralization Test Completed
Courtesy of KIA MOTORS AMERICA, INC.

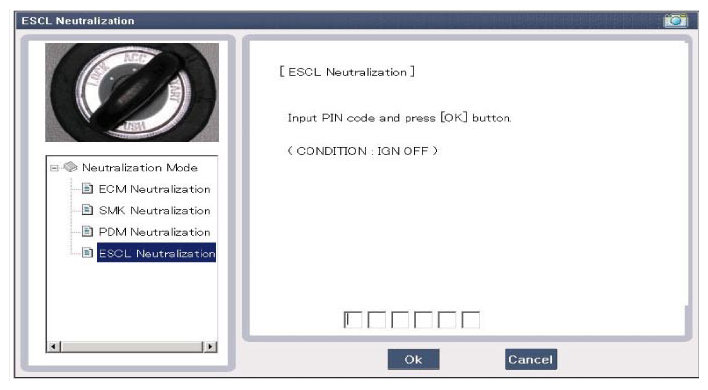

Fig 11: Display - ESCL Neutralization Screen
Courtesy of KIA MOTORS AMERICA, INC.

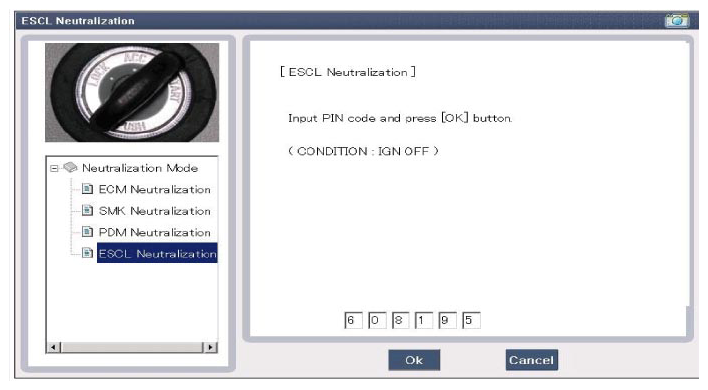

Fig 12: Display - ESCL Neutralization Screen (With PIN)
Courtesy of KIA MOTORS AMERICA, INC.

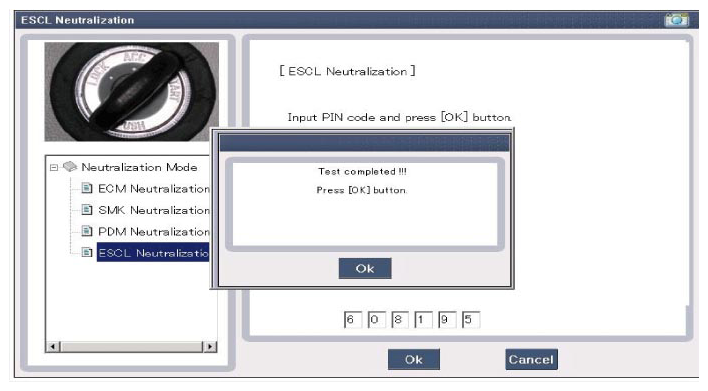

Fig 13: Display - ESCL Neutralization Test Completed
Courtesy of KIA MOTORS AMERICA, INC.
