Wave Form

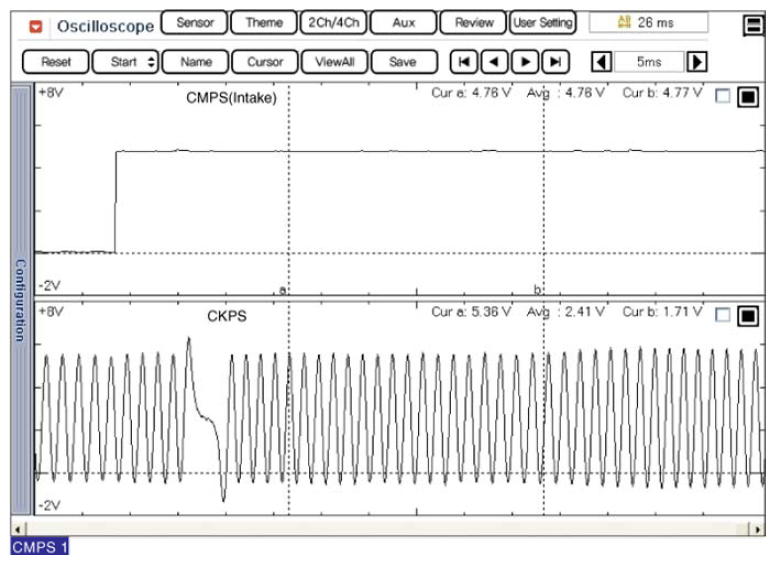

Fig 1: Display - CMPS (Intake) And CKPS Signal Waveform
G08327961Courtesy of KIA MOTORS AMERICA, INC.

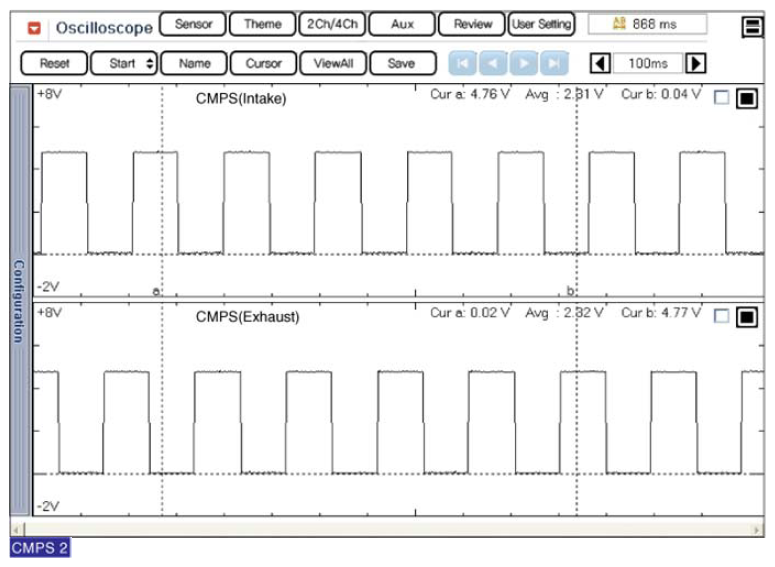

Fig 2: Display - CMPS (Intake And Exhaust) Waveform
G08327962Courtesy of KIA MOTORS AMERICA, INC.
