Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B) from the canister close valve.
  5. Remove the canister close valve after removing the bolts.

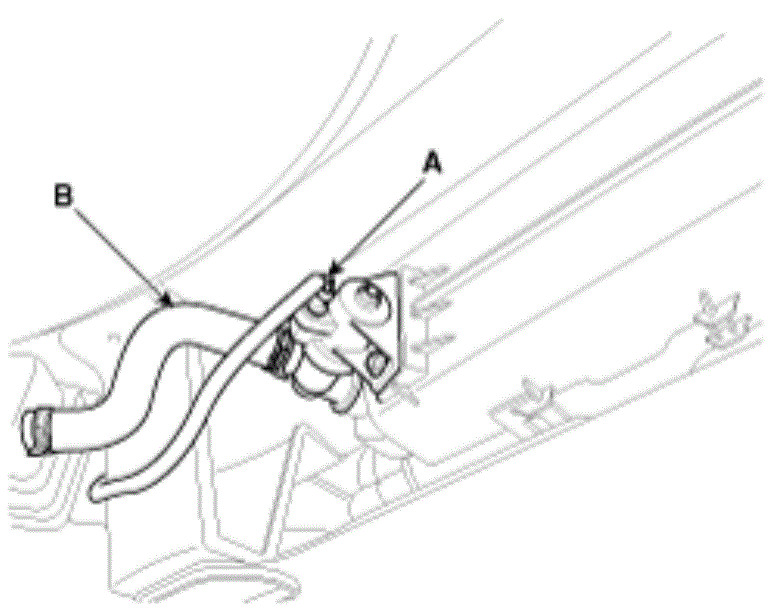

    Fig 1: Canister Close Valve Component Location
    G08328032Courtesy of KIA MOTORS AMERICA, INC.
