Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose (Refer to MUFFLER .
  3. Disconnect the ETC module connector (A).

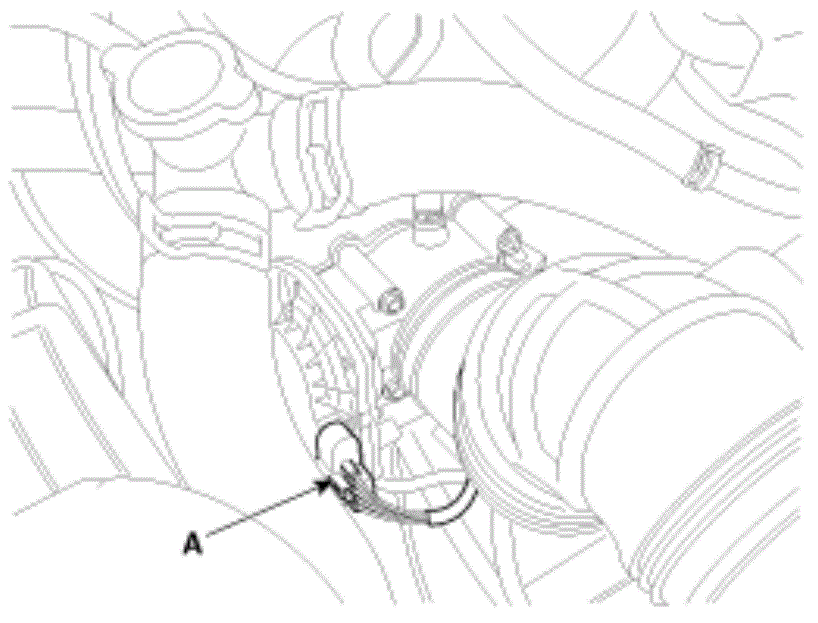

    Fig 1: Electronic Throttle Control Module Component Location
    G08327938Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the coolant hoses (A).

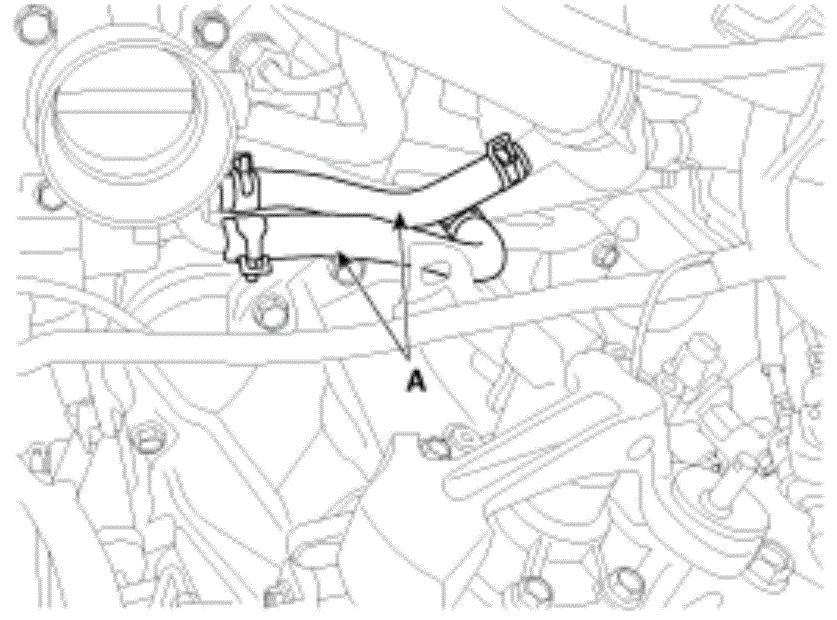

    Fig 2: Identifying Coolant Hoses
    G08327939Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the installation bolts, and then remove the ETC module (A) from the engine.

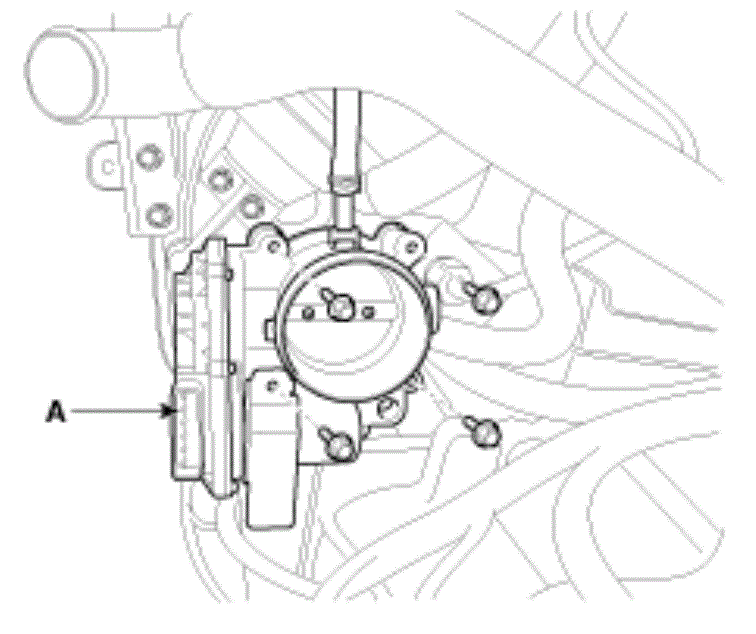

    Fig 3: Identifying ETC Module
    G08327940Courtesy of KIA MOTORS AMERICA, INC.
