Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the engine coolant temperature sensor connector (A).

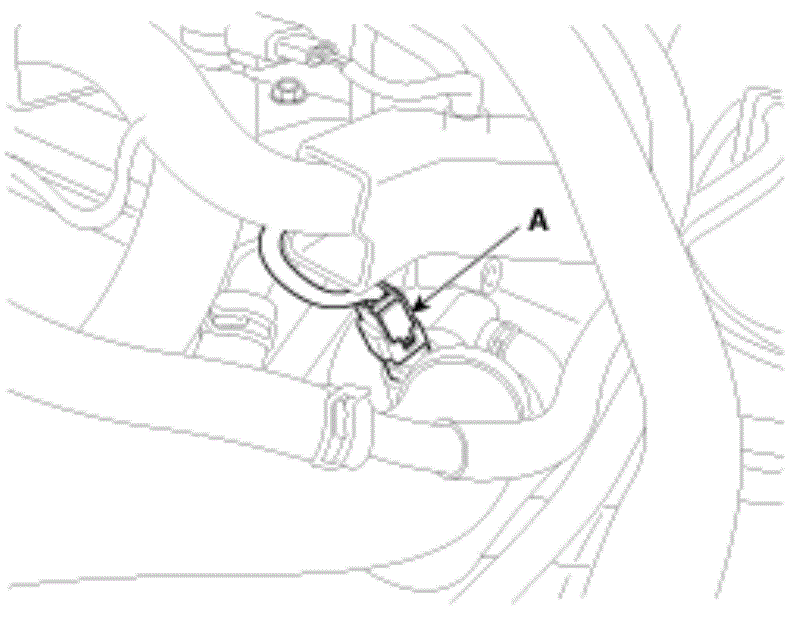

    Fig 1: Engine Coolant Temperature Sensor Component Location
    G08327953Courtesy of KIA MOTORS AMERICA, INC.
  3. Supplement the engine coolant (Refer to REFILLING AND BLEEDING .
