Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the intake manifold (Refer to INTAKE MANIFOLD .
  3. Disconnect the injector connector (A).
  4. Remove the installation bolt (B), and then remove the sensor from the cylinder block.

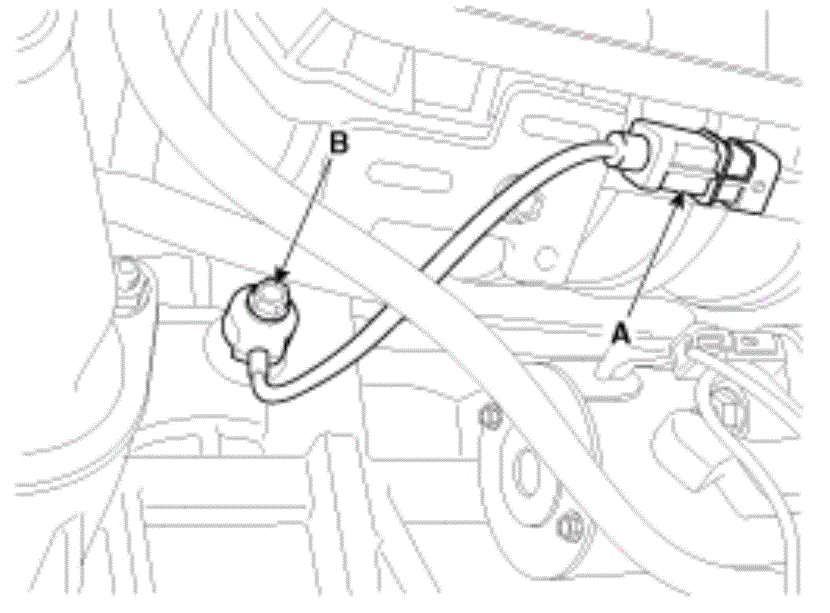

    Fig 1: Knock Sensor Component Location
    G08327970Courtesy of KIA MOTORS AMERICA, INC.
