Manifold Absolute Pressure Sensor (MAPS): Specification

Pressure [kPa (kgf/cm2 , psi)]	Output Voltage (V)
20.0 (0.20, 2.9)	0.79
46.7 (0.47, 6.77)	1.84
101.3 (1.03, 14.7)	4.0

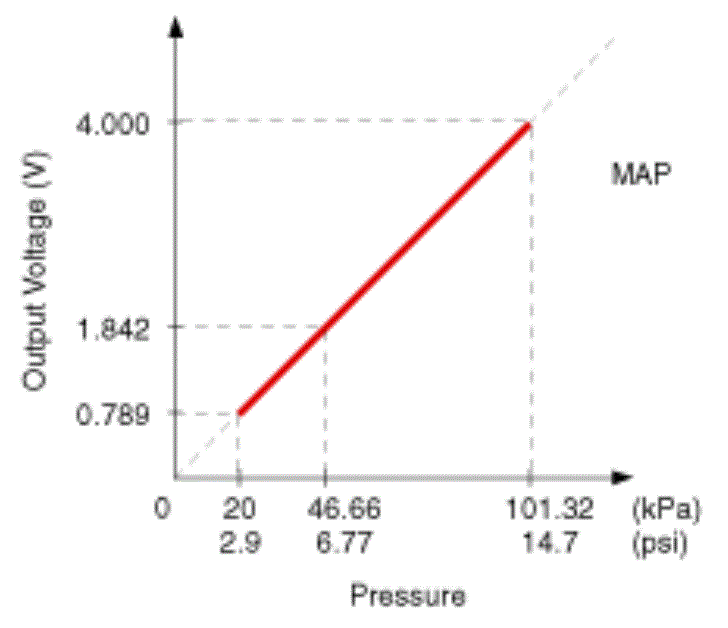

Fig 1: MAP Output Voltage Versus Pressure Graph

Courtesy of KIA MOTORS AMERICA, INC.
