Spark Test: Notes

Remove the engine cover (A).

Fig 1: Identifying Engine Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the ignition coil connectors (A).

Fig 2: Identifying Ignition Coil Connectors
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Fig 3: Pulling Lock Pin And Pushing Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coils (A).

Fig 4: Identifying Ignition Coils
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the injector connector or extension connector (A).

Fig 5: Identifying Injector Or Extension Connector
Courtesy of KIA MOTORS AMERICA, INC.
Using a spark plug socket, remove the spark plug.
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

Fig 6: Identifying Spark Plug Grounded To Engine
Courtesy of KIA MOTORS AMERICA, INC.
Check if spark occurs while engine is being cranked.
NOTE: To prevent fuel being injected from injectors while the engine is being cranked, disconnect the fuel pump connector. Crank the engine for no more than 5 ~ 10 seconds.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plug.
Install the ignition coil.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

NOTE: When inserting ignition coil into the cylinder head cover for spark plug to be inserting ignition coil, the sealing cap of ignition coil must be mated totally with inner side of cylinder head.
Reconnect the ignition coil connectors.

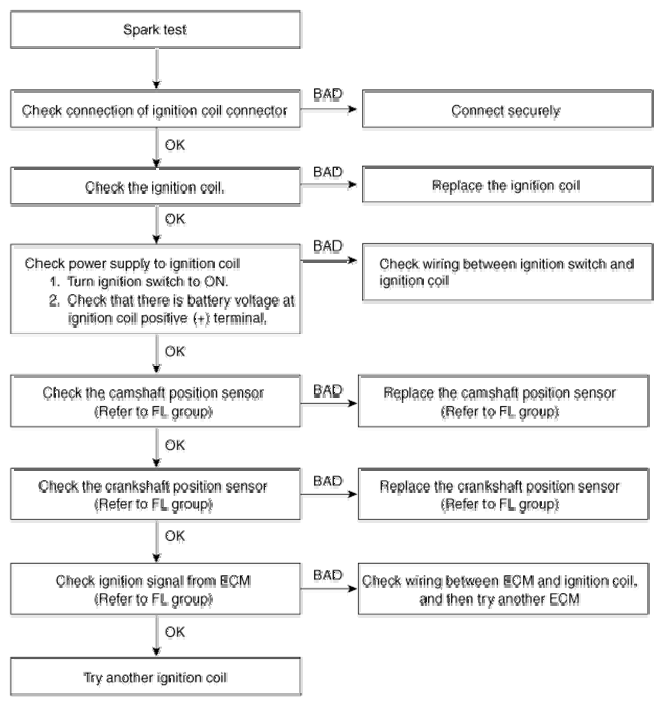

Fig 7: Ignition Coil Connectors Connection Testing Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
