Repair procedures: Removal

Remove the battery and the battery tray.
(Refer to "CHARGING SYSTEM " in EE group.)

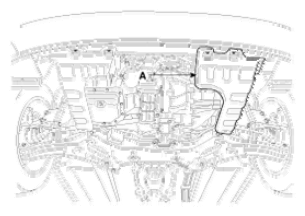

Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Identifying Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. (Refer to SERVICE ADJUSTMENT PROCEDURE .
Remove the air breather hose (A).
Remove the valve body cover (B).
Tightening torque:

13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.8 ~ 11.6 lb-ft)

NOTE: Remove installation bolts in the engine compartment first and then remove others under the vehicle.

Fig 2: Identifying Air Breather Hose And Valve Body Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the plate and the detent spring (A) after removing the bolt.
Tightening torque:

11.8 ~ 15.7 N.m (1.2 ~ 1.6 kgf.m, 8.7 ~ 11.6 lb-ft)

Fig 3: Identifying Detent Spring
Courtesy of KIA MOTORS AMERICA, INC.

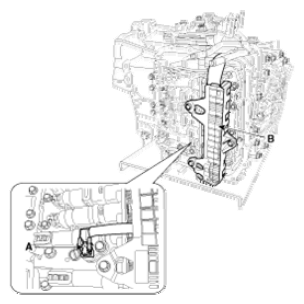

Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

CAUTION: Be careful not to damage the harness lock connector.

Fig 4: Identifying Solenoid Valve Connector And Temperature Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the valve body assembly (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 5: Identifying Valve Body Assembly
Courtesy of KIA MOTORS AMERICA, INC.

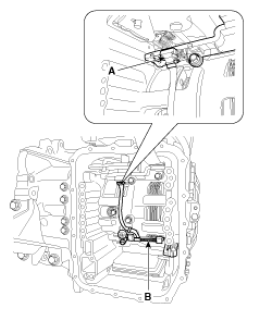

Disconnect the input & output speed sensor connector (A).
Remove the input & output speed sensor (B) after removing the bolts (2ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 6: Identifying Input & Output Speed Sensor Connector And Input & Output Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
