Circuit Diagram

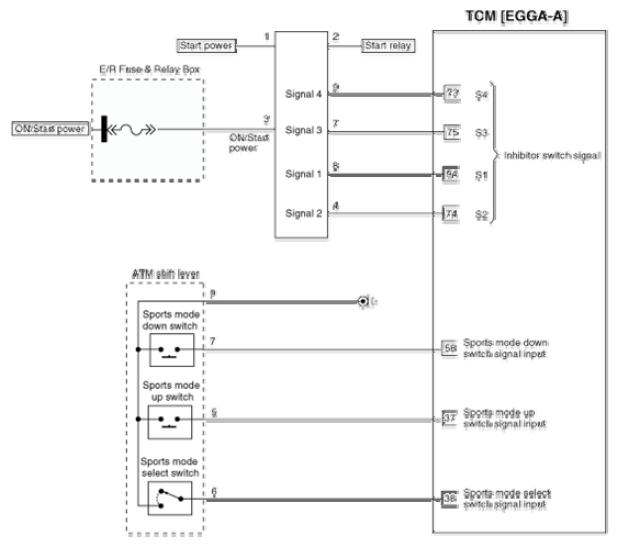

Fig 1: TCM Circuit Diagram
G08328286Courtesy of KIA MOTORS AMERICA, INC.

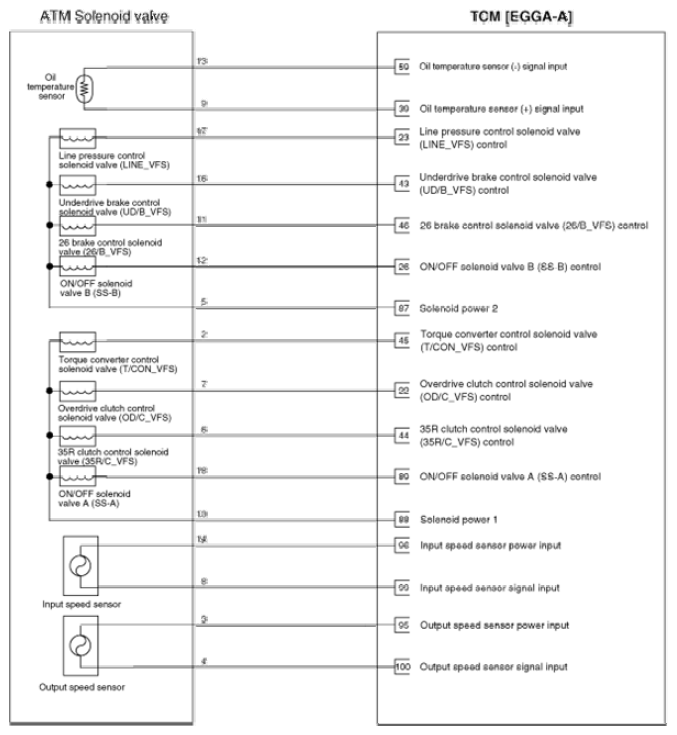

Fig 2: ATM Solenoid Valve - Circuit Diagram
G08328287Courtesy of KIA MOTORS AMERICA, INC.
