Accelerator Position Sensor (APS): Specification

Accelerator Position	Output Voltage (V)
	APS1	APS2
C.T	0.7 ~ 0.8	0.275 ~ 0.475
W.O.T	3.8 ~ 4.4	1.75 ~ 2.35

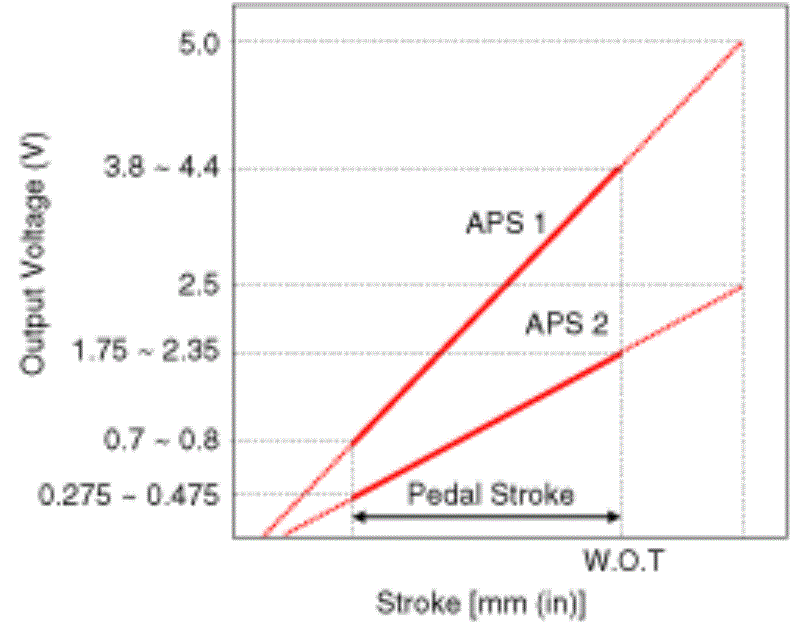

Fig 1: APS 1 And 2 Output Voltage Versus Stroke Graph

Courtesy of KIA MOTORS AMERICA, INC.
