(Bank 1 / Intake)

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor.

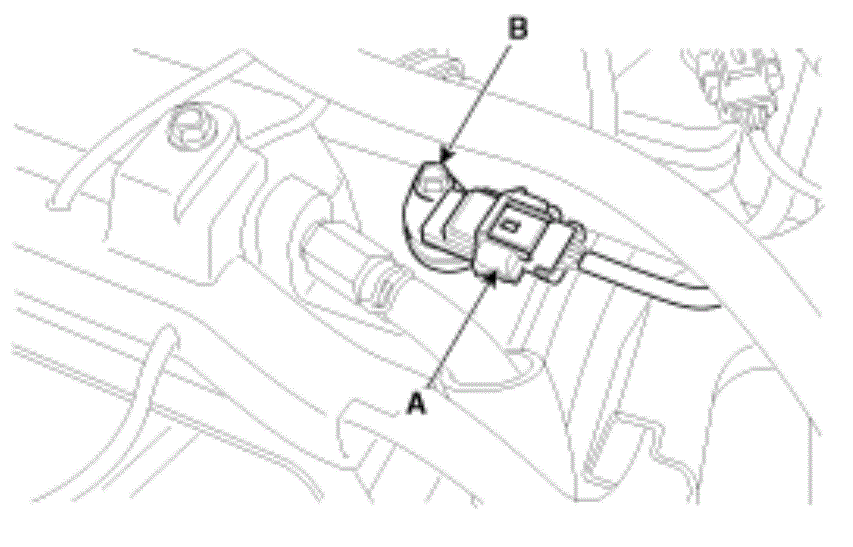

    Fig 1: Camshaft Position Sensor Component Location (Bank 1 / Intake)
    G08327965Courtesy of KIA MOTORS AMERICA, INC.
