Components and Components Location: Components

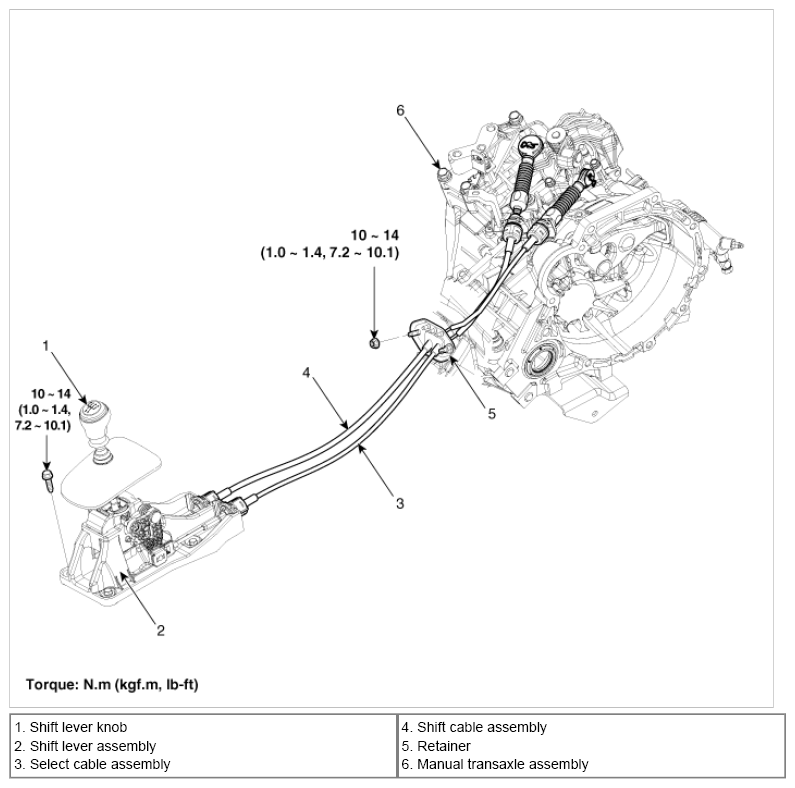

Fig 1: Control Cable With Torque Specifications

G08328203

Courtesy of KIA MOTORS AMERICA, INC.
