Repair procedures: Installation

CAUTION: Set room side lever and T/M side lever to "N" position.

Install the shift cable & select cable (B) and pin (A).

Fig 1: Identifying Shift Cable & Select Cable And Pin
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift cable (A).

Fig 2: Identifying Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

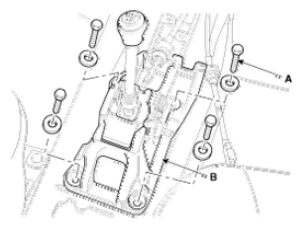

Install the shift lever assembly (B) by tightening the bolts (A-4ea).
Tightening torque:

9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

Fig 3: Identifying Shift Lever Assembly And Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Shift the shift lever to 3rd gear.
Re-adjust select cable.

Fig 4: Identifying Re-Adjusting Select Cable
Courtesy of KIA MOTORS AMERICA, INC.
Insert the select cable (A) to the shift lever assembly pin (B).

Fig 5: Identifying Select Cable And Shift Lever Assembly Pin
Courtesy of KIA MOTORS AMERICA, INC.
After shifting 2nd gear, checking the left select gab about 1.1mm (if not, loop no. 3 ~ 6).
Install the snap pin (A) to the shift lever assembly pin (B).

Fig 6: Identifying Snap Pin And Shift Lever Assembly Pin
Courtesy of KIA MOTORS AMERICA, INC.

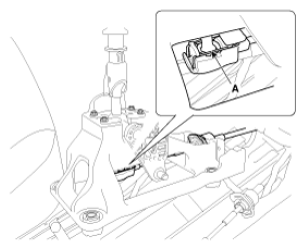

Remove the "N" position pin (A) after assembling select cable. (Resuse)

Fig 7: Identifying "N" Position Pin
Courtesy of KIA MOTORS AMERICA, INC.
