Components and Components Location: Components

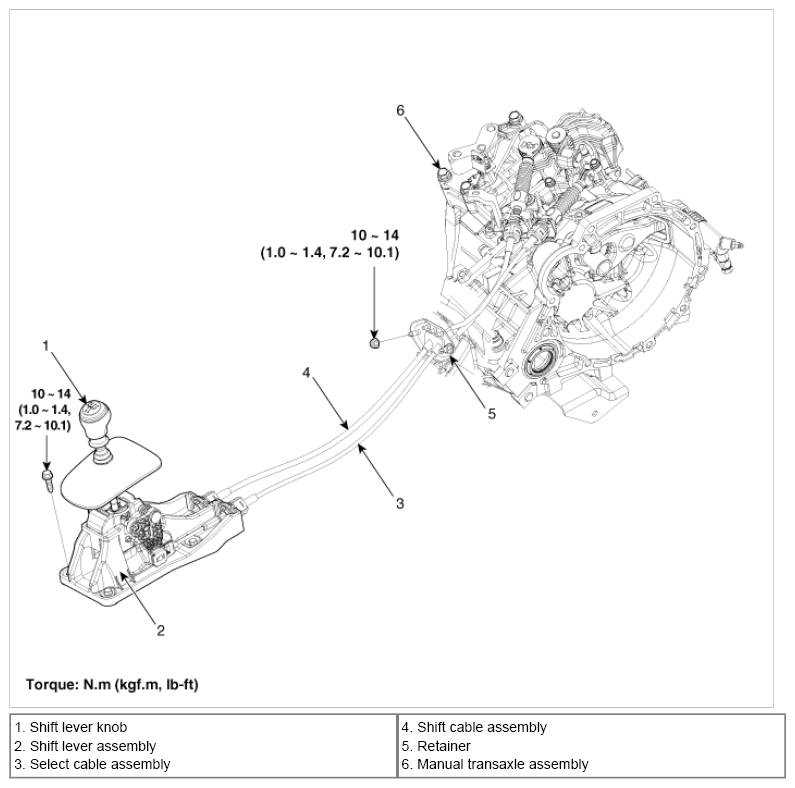

Fig 1: Shift Lever Replacement Components With Torque Specifications
G08328189Courtesy of KIA MOTORS AMERICA, INC.
