Transaxle Control Module (TCM)





TCM connector and terminal function

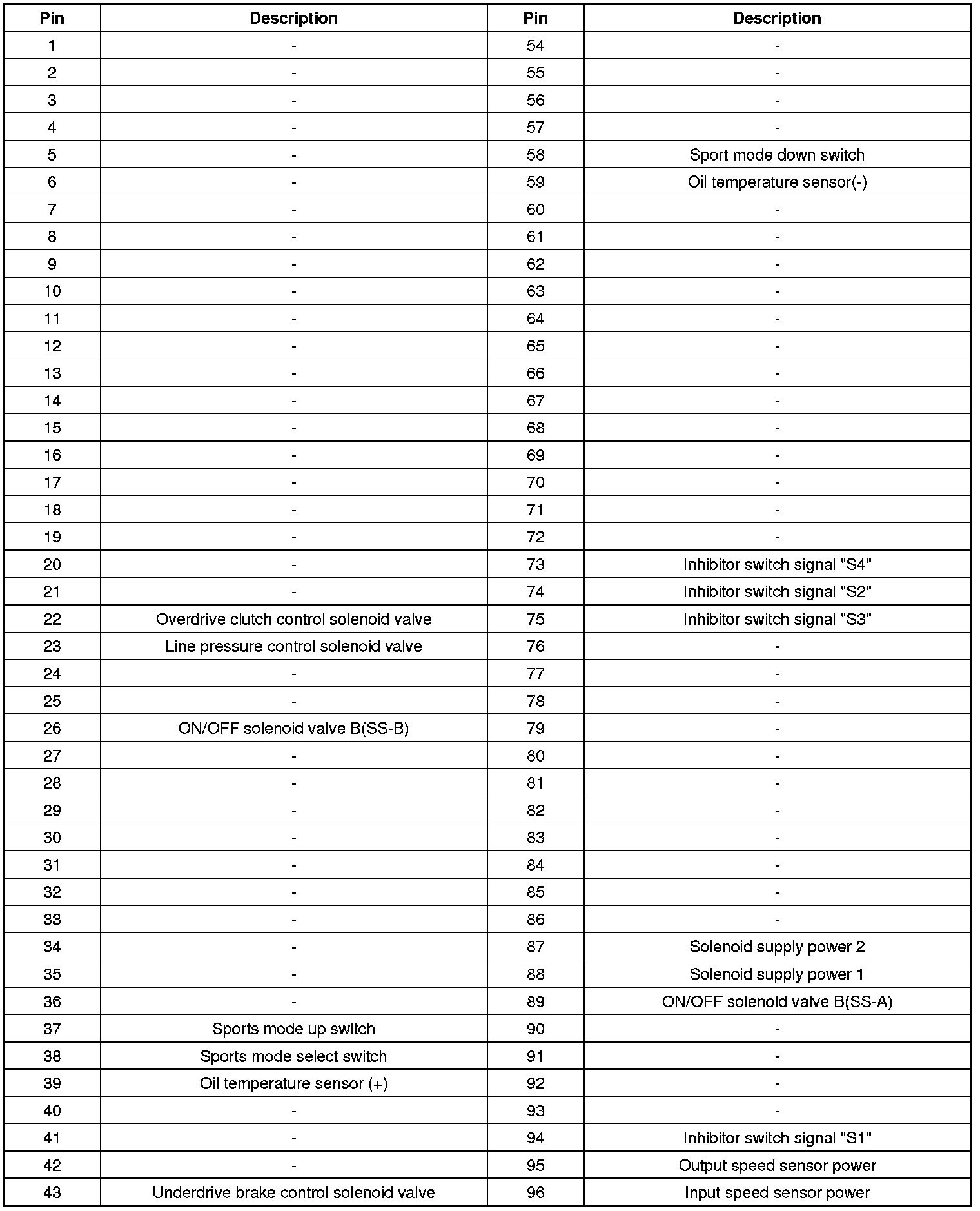

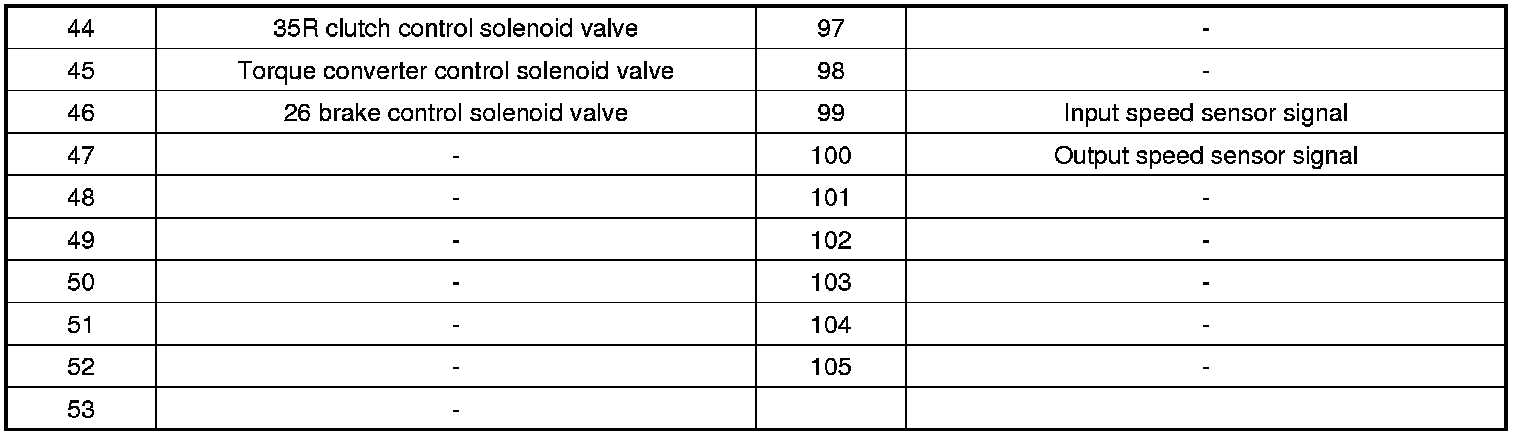

TCM Terminal Function

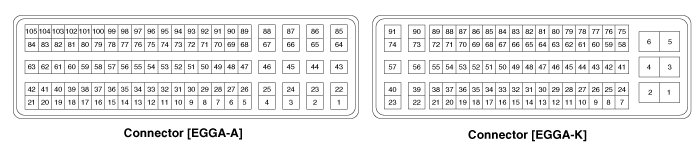

Connector [EGGA-A]

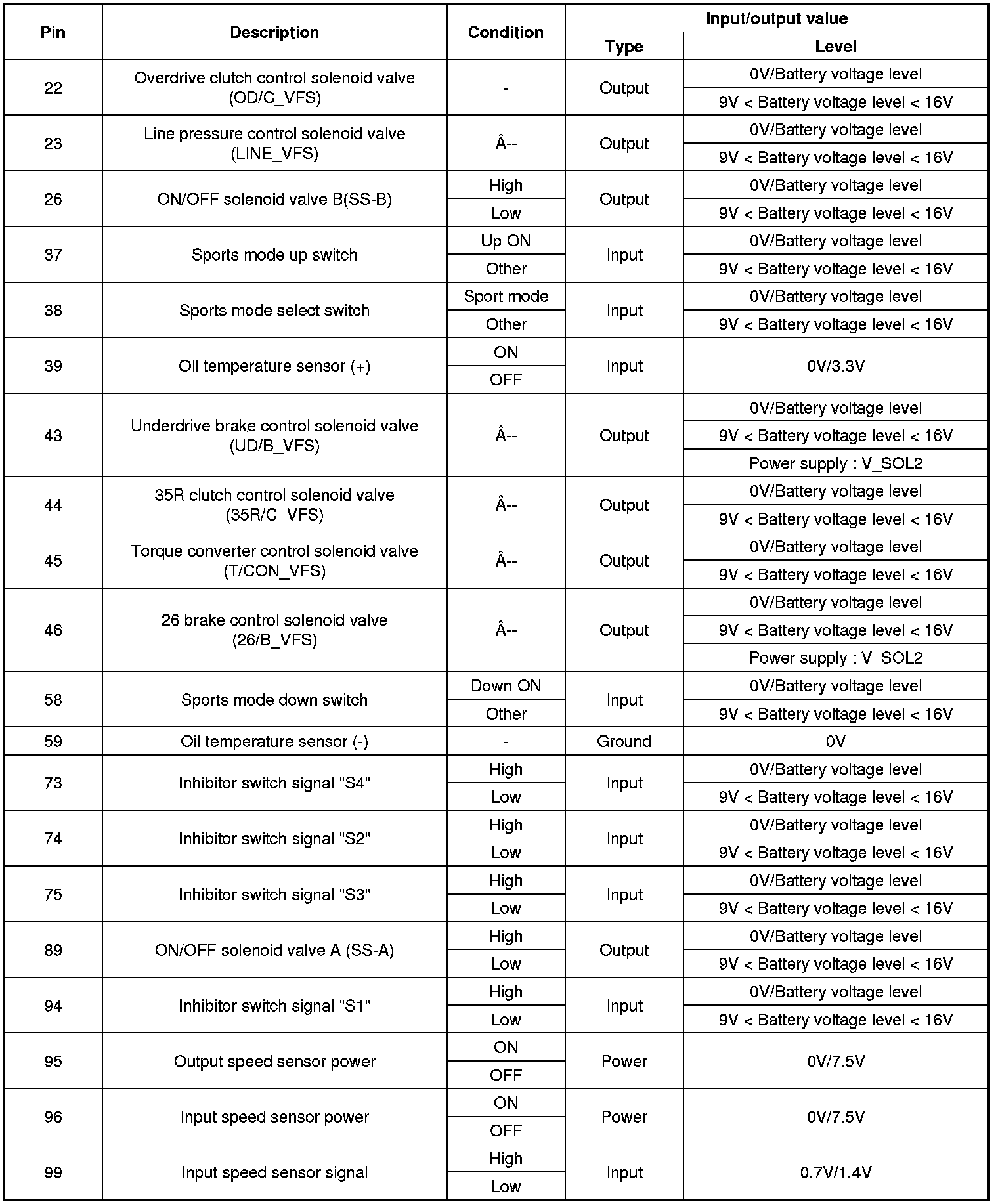

TCM Terminal input/ output signal

Connector [EGGA-A]

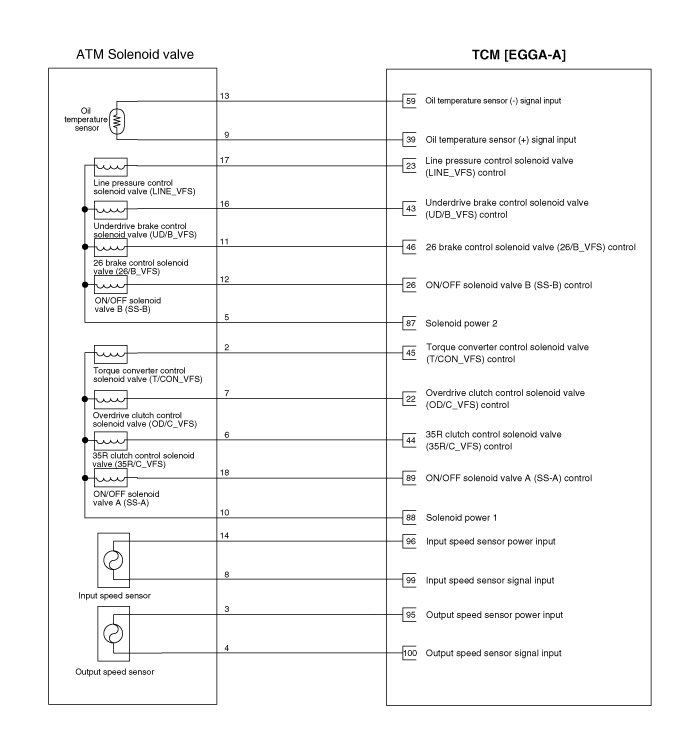

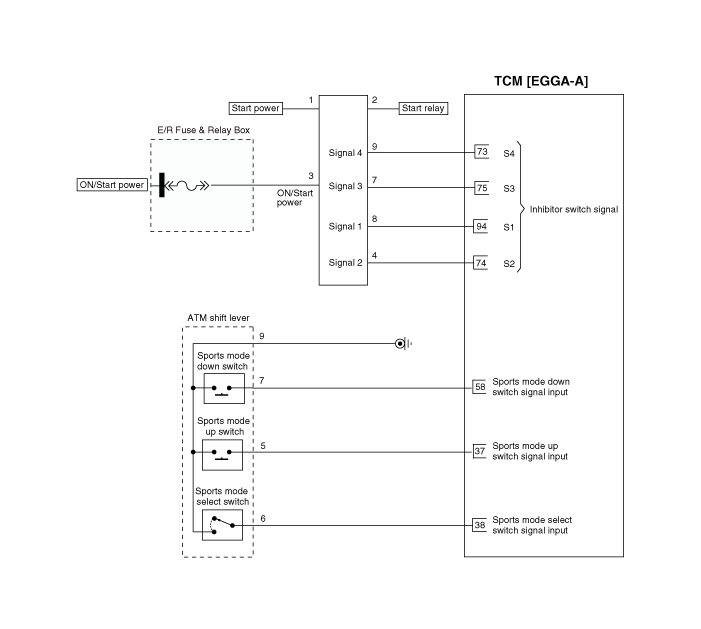

Circuit Diagram
