Axle Nut

Axle Nut

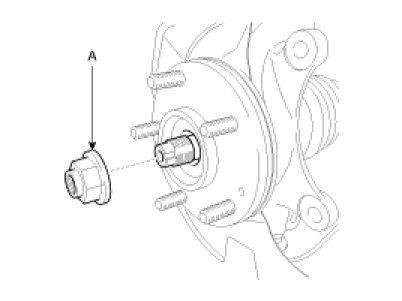

Install driveshaft nut (A) from the front hub under applying the break.

Tightening torque 240.3 - 269.7 N.m (24.5 - 27.5 Kgf.m, 177.2 - 197.9 lb-ft)






CAUTION:
- The driveshaft lock nut should be replaced with new ones.

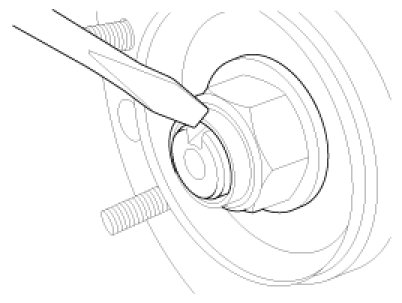

- After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.
