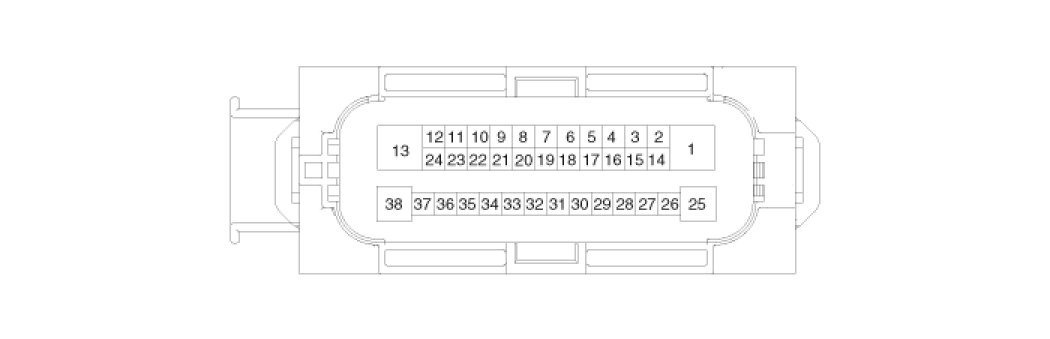

Antilock Brakes / Traction Control Systems

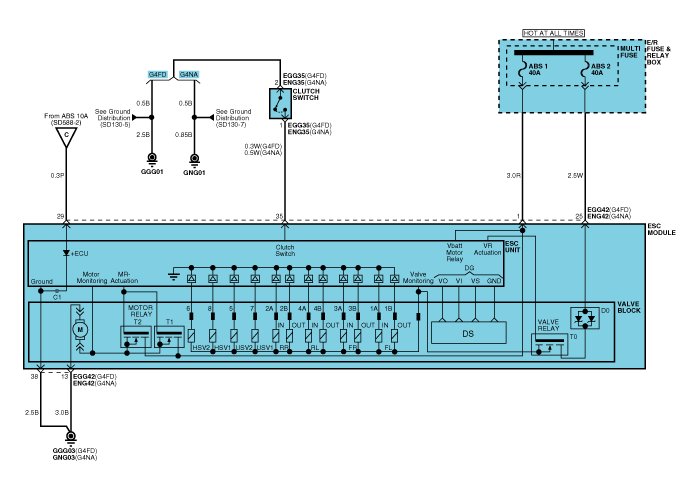

Circuit Diagram - ESC (1)

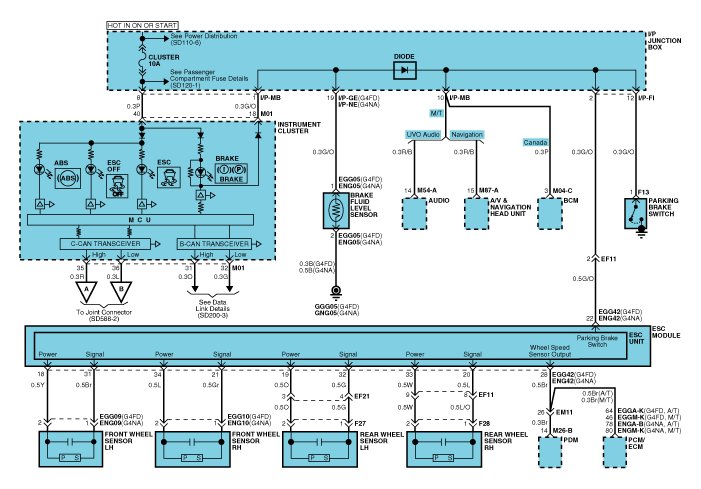

Circuit Diagram - ESC (2)

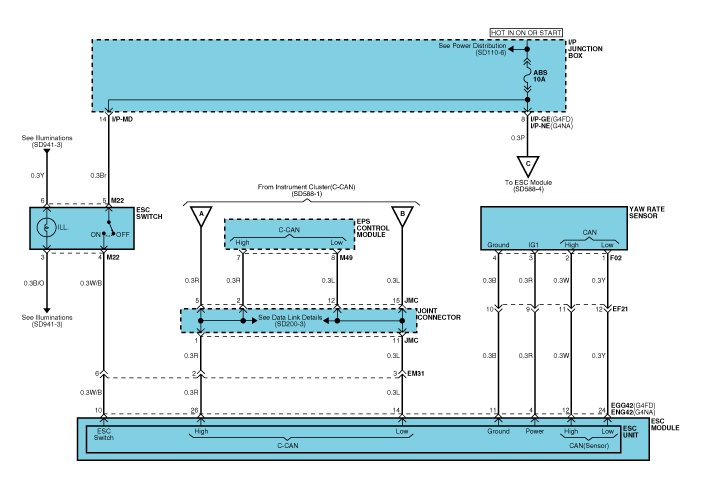

Circuit Diagram - ESC (3)

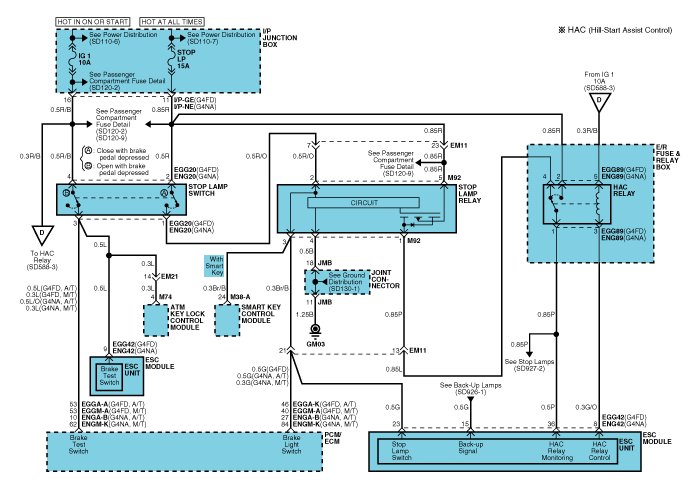

Circuit Diagram - ESC (4)

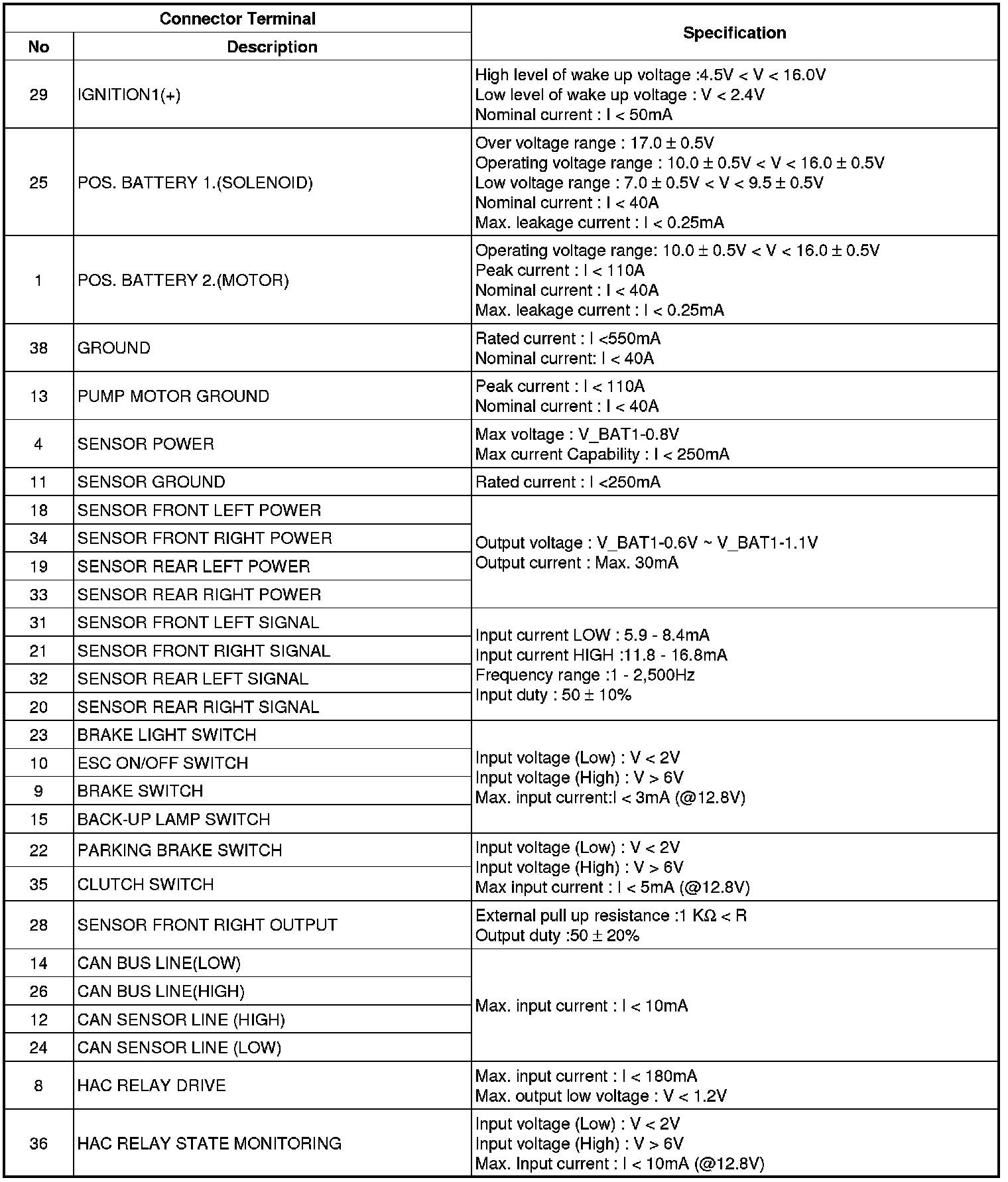

ESC Connector Input/Output
