Transaxle Control Module (TCM)





1. TCM Connector and Terminal Function





2. TCM Terminal Function

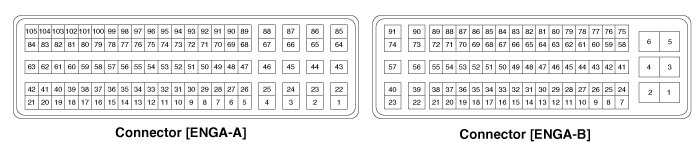

Connector [ENGA-A]









Connector [ENGA-B]










TCM Terminal Input/ Output Signal

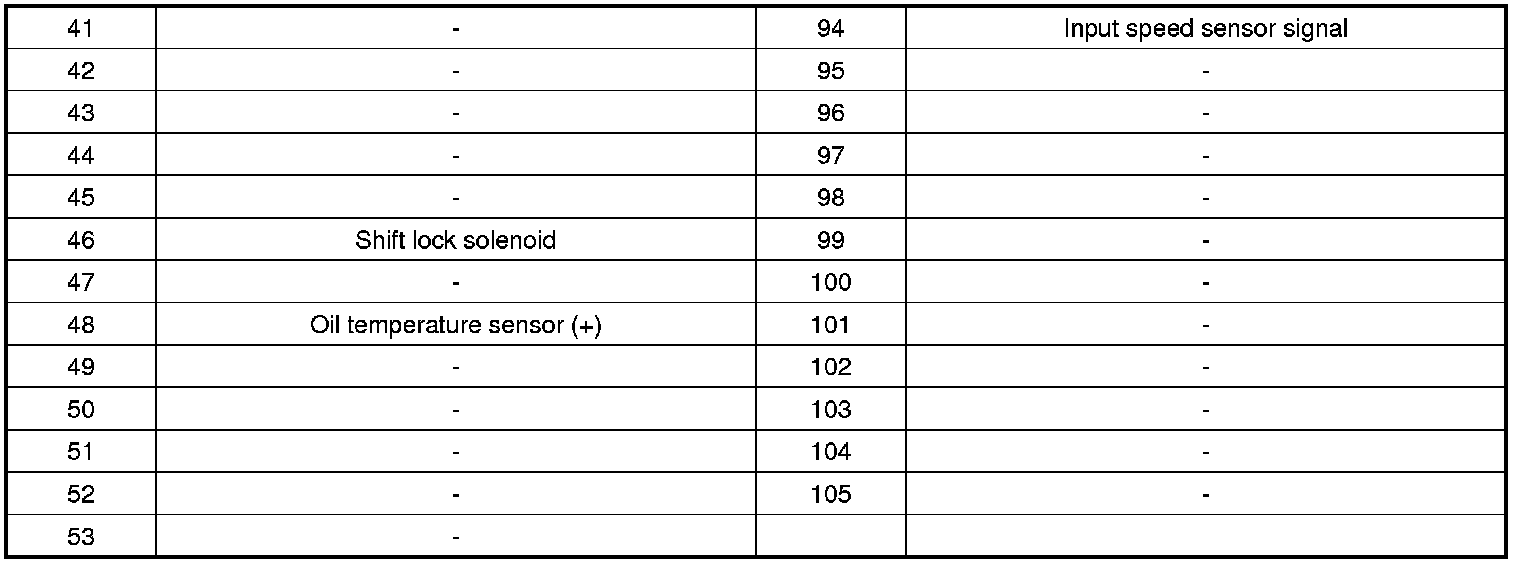

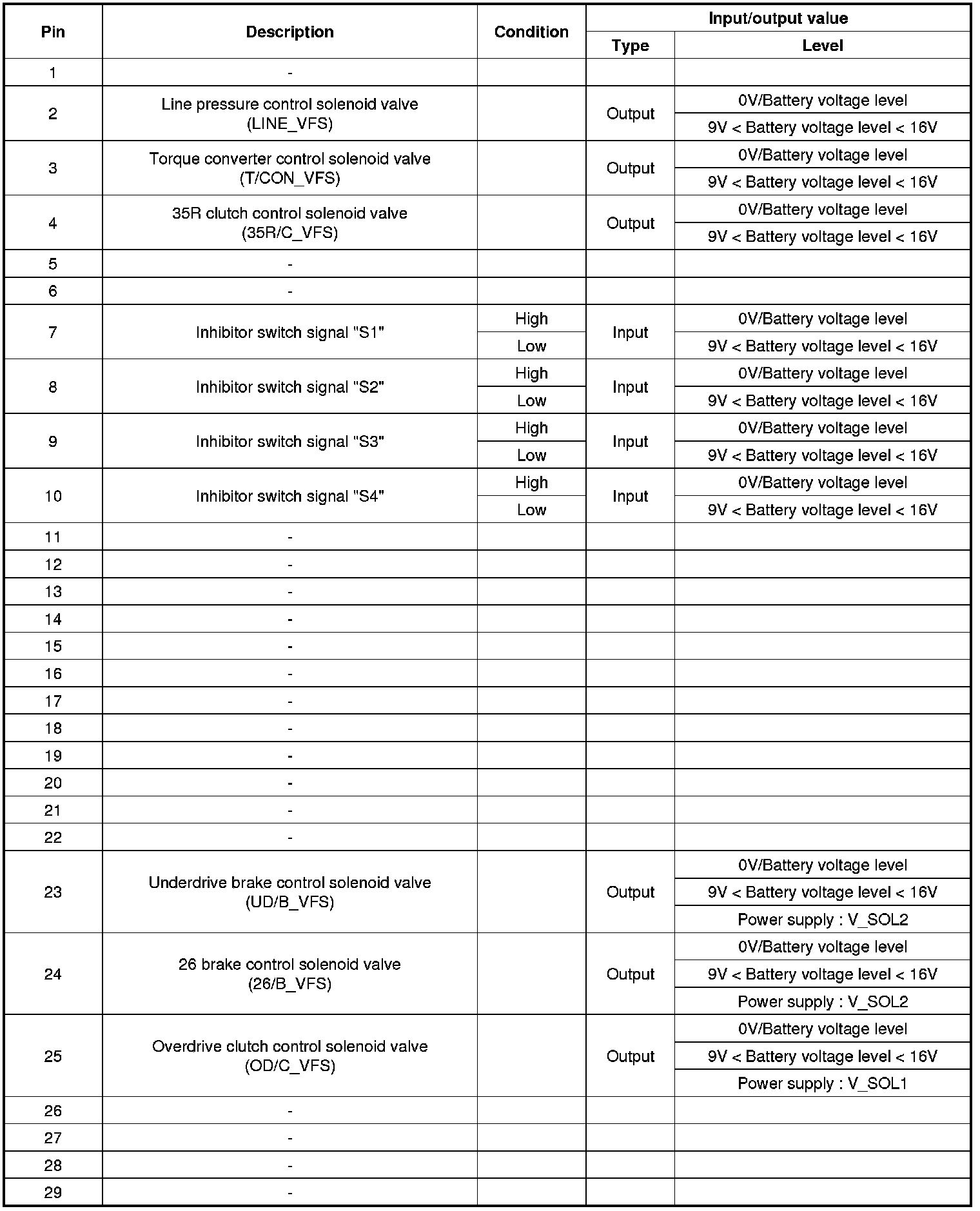

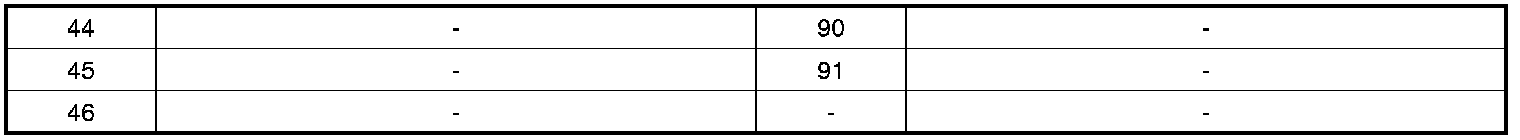

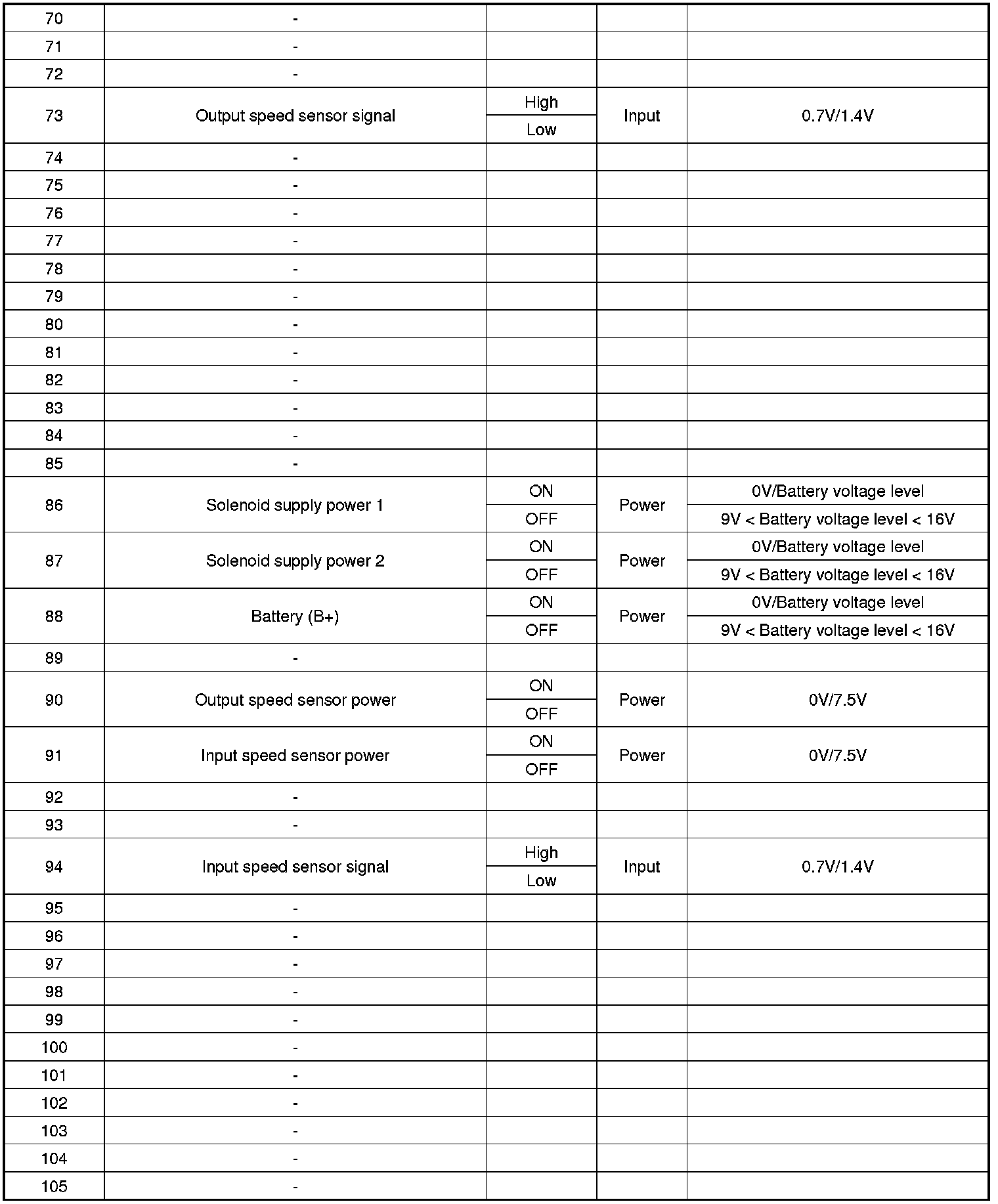

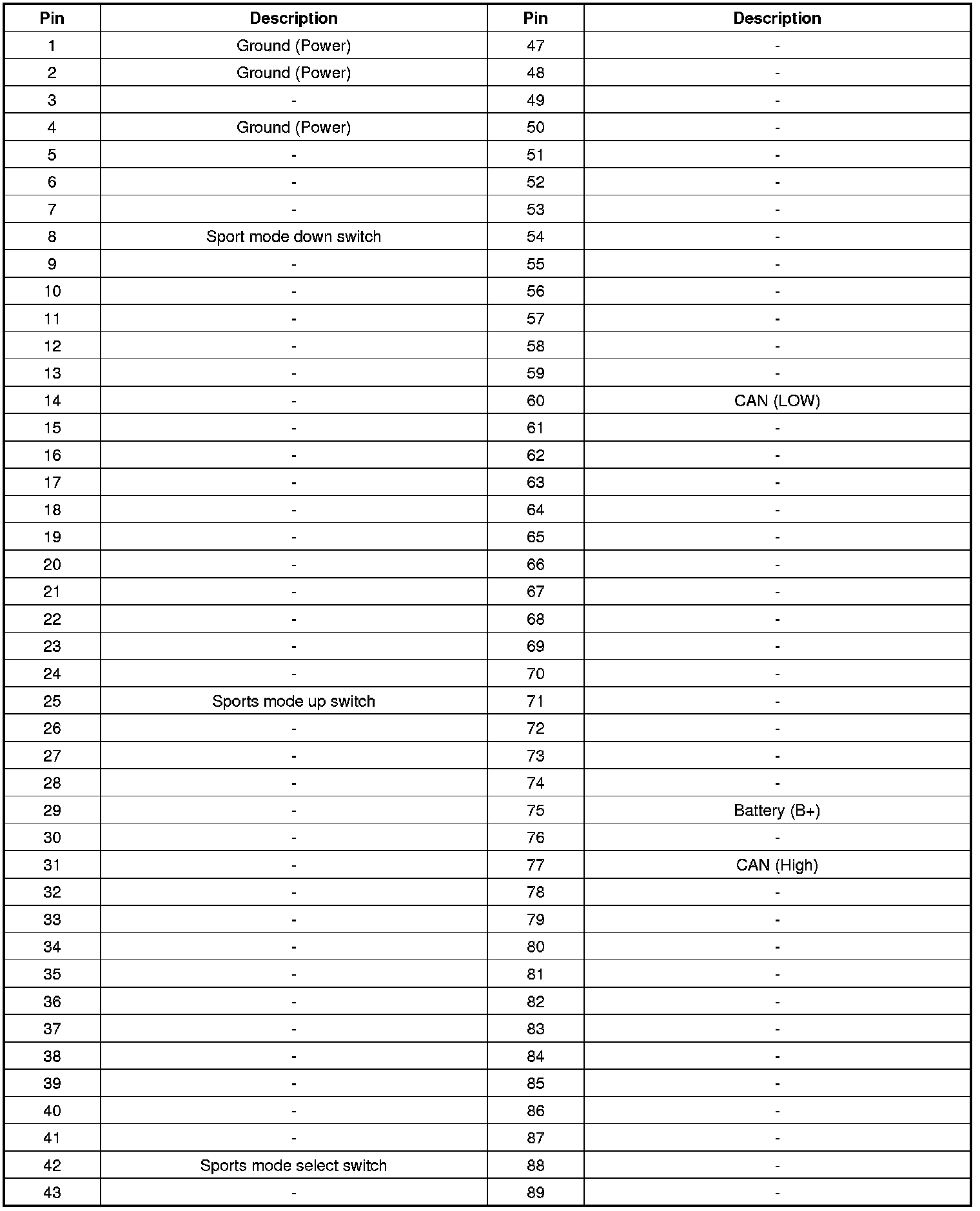

Connector [ENGA-A]

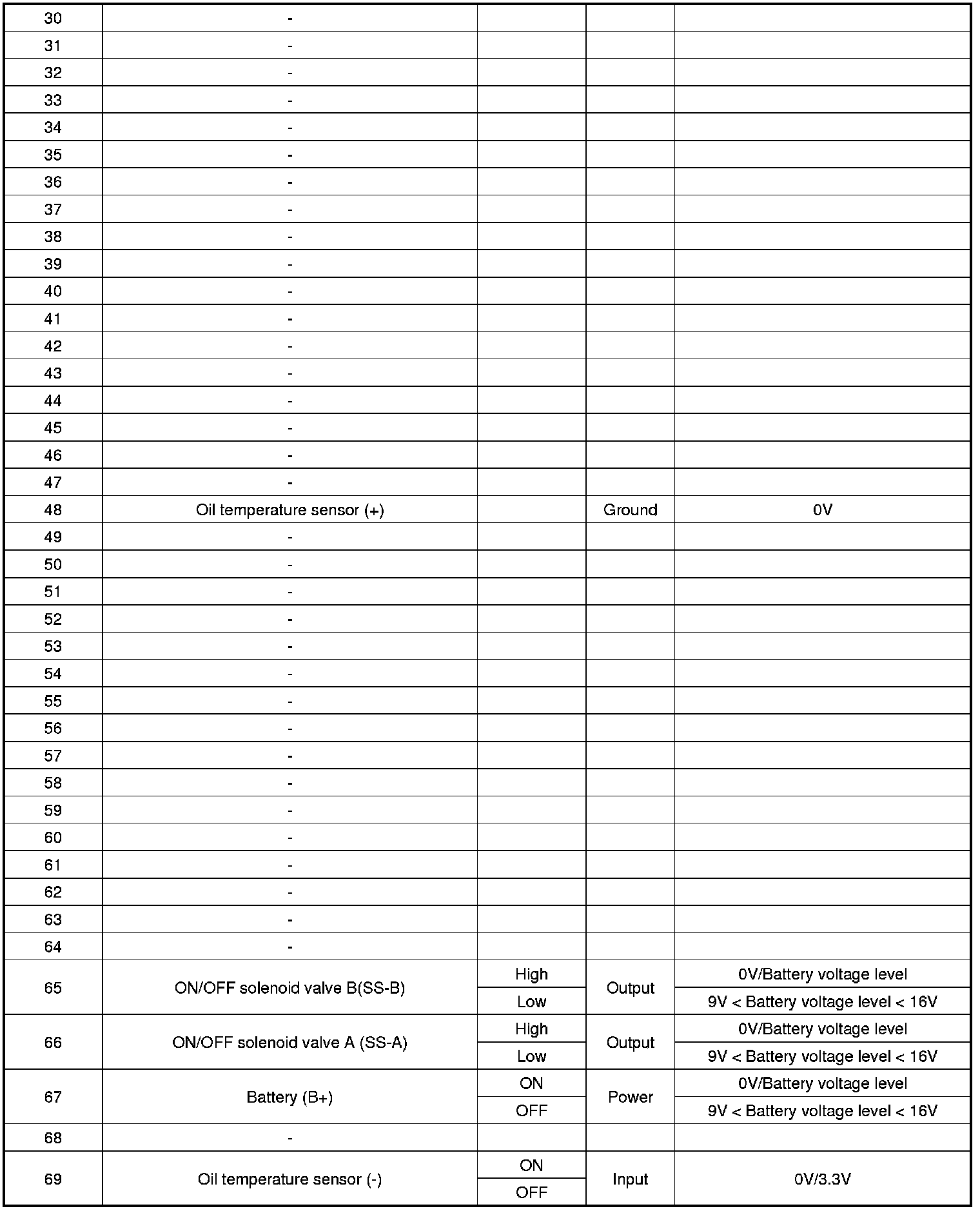

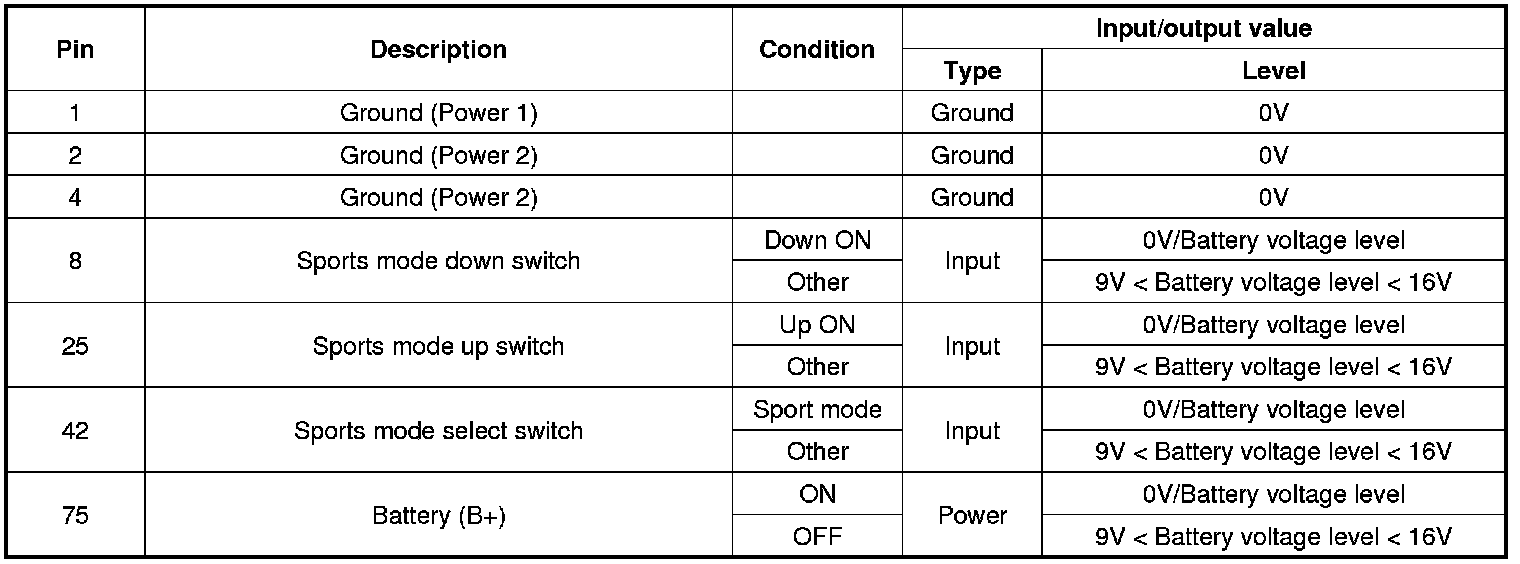

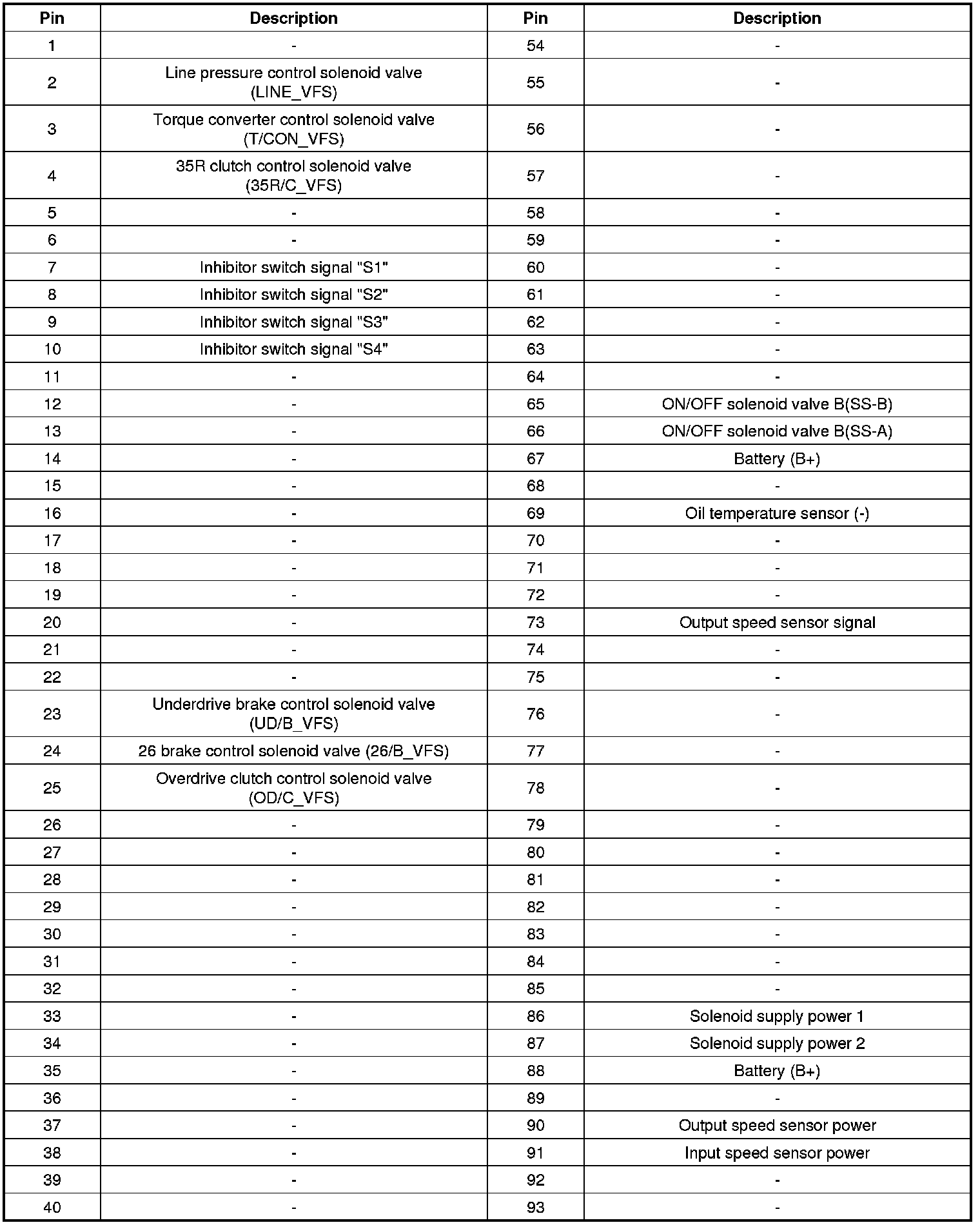

Connector [ENGA-B]

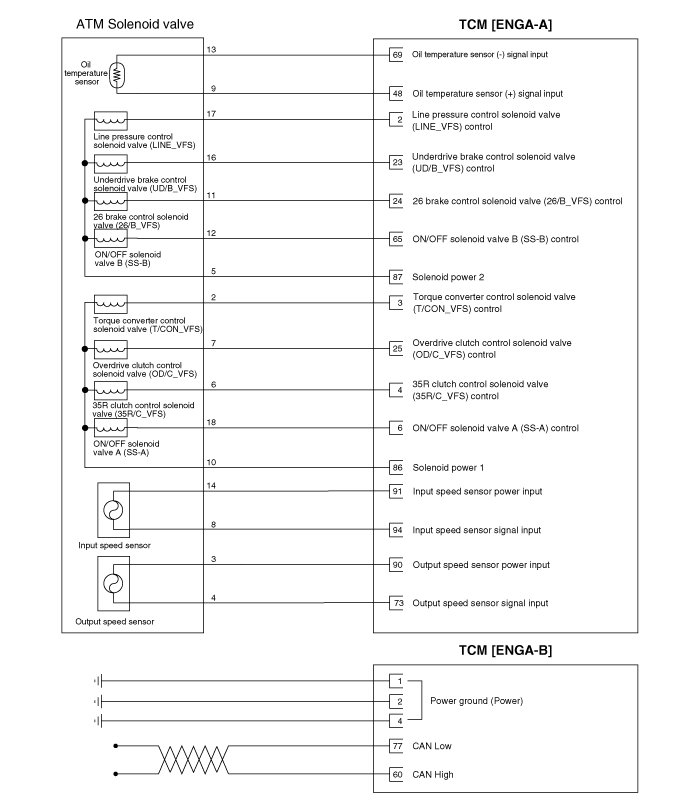

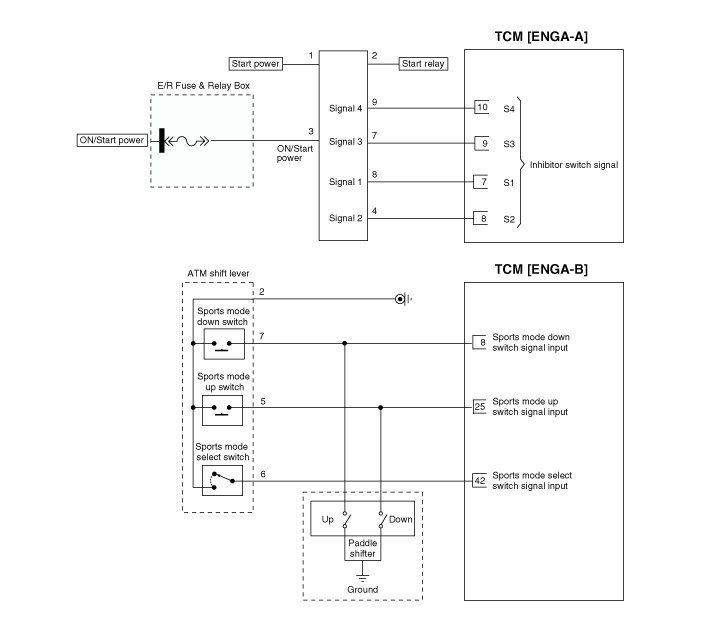

Circuit Diagram
