Fuel Filter: Service and Repair

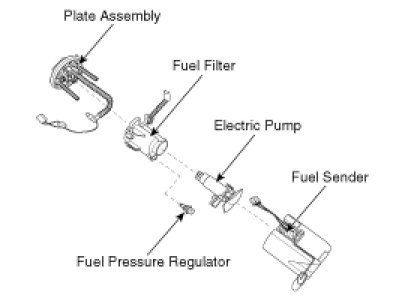

Replacement

1. Remove the fuel pump .

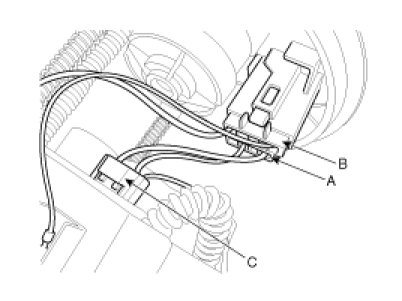

2. Disconnect the electric pump wiring connector (A) and the fuel sender wiring connector (B).
3. Disconnect the electric pump wiring connector (C) from the pump.

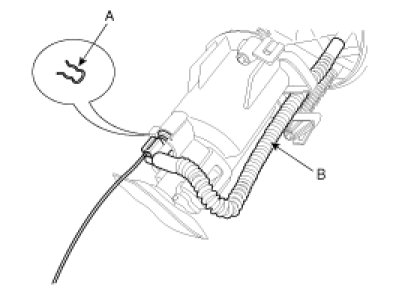

4. Disconnect the fuel tube (A).

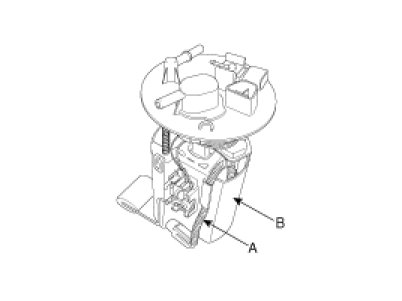

5. Remove the reservoir-cup (B) after releasing the fixing hooks.




6. Disconnect the fuel tube (B) after removing the fixing clip (A).

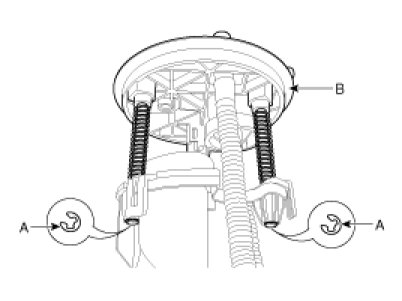

7. Remove the plate assembly (B) after removing the cushion pipe fixing clip (A).

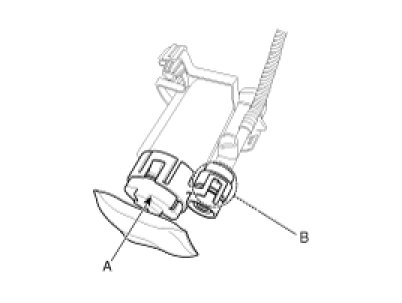

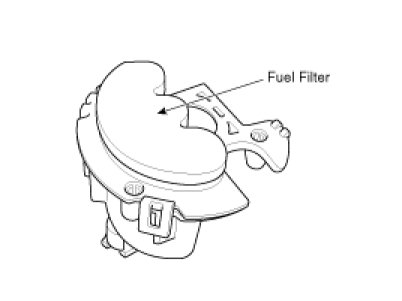

8. Remove the pump & pre-filter assembly (A) and the fuel pressure regulator (B) from the fuel filter.
