Schematic Diagrams

Circuit Diagram

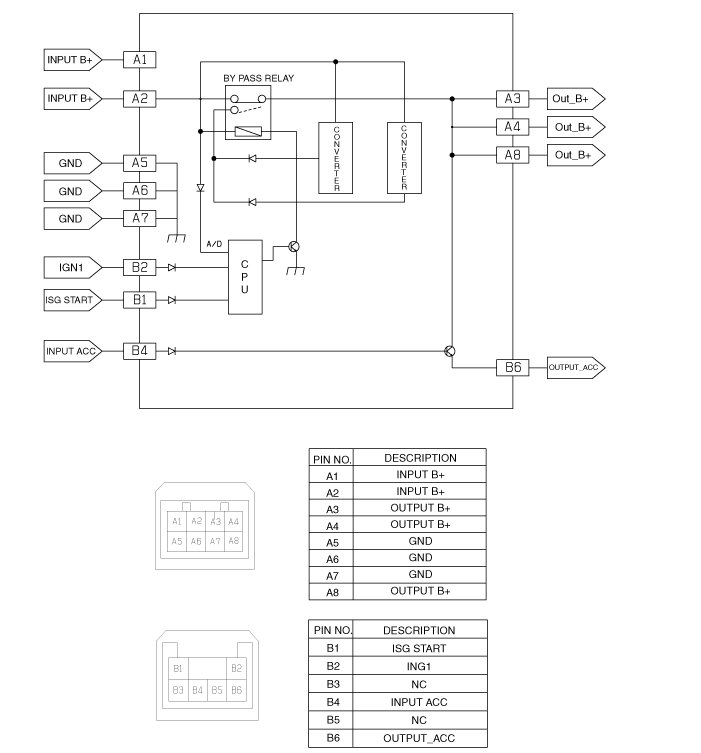

[200W]

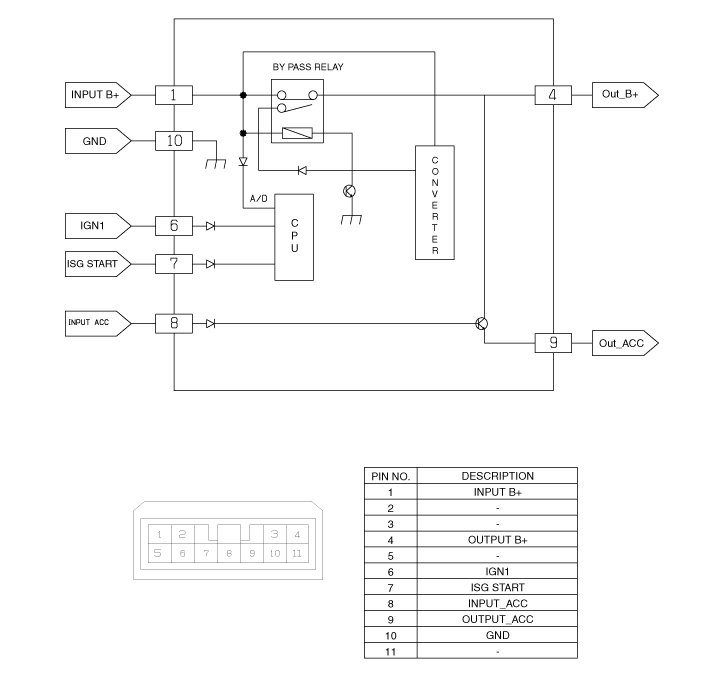

[400W]





NOTE:
In the ISG mode, if the power of an audio system turns OFF by drawdown while "Auto Starting" or "Idle Starting"function operates, replace the DC/DC converter.
