Front Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the front door trim.

    For sedan, refer to FRONT DOOR . For coupe, refer to FRONT DOOR .

  3. Disconnect the connector from the motor.

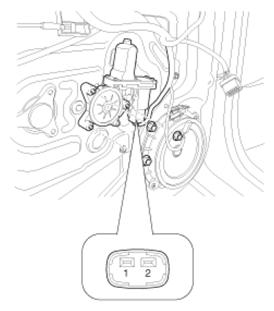

    Fig 1: Front Power Window Motor Connector End View
    G07369316Courtesy of KIA MOTORS AMERICA, INC.
  4. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

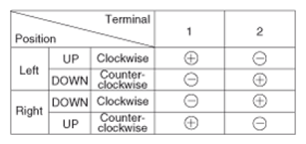

    Fig 2: Power Window Motor Terminals Polarity Chart
    G07369317Courtesy of KIA MOTORS AMERICA, INC.
